Abell A-511
- Comfortable to grab, Compact and light
- Special Designed Structure, Rugged, Durable
- Vox, Hands-free Operation
Specification
GENERAL
- Frequency Range (VHF) – 136-174MHz
- Frequency Range (UHF) – 350-390MHz, 400-470MHz
- Channel Capacity – 16 channels
- Channel Spacing – 25kHz/1 2.5kHz
- Operating voltage – 7.5V
- Operation – Semi duplex
- Operation Temperature – -300c-600C
- Antenna Impedance – 50Ω
- Programming Method – Computer
- CTCSS/CDS
- Power save
- Battery life (1200mAh) as 5-5-90 duty – 10 hours
- Time out timer
- Low Battery Warning
- Standard – Mil-std-81
- Scan
- Busy channel lockout
- Weight – 230g(with battery)
- Dimension – 53 Xl 25 X32mm
RECEIVER
- Sensitivity – ≤0.2uv
- Operating Bandwidth – ∓7kHz/ ∓3.5kHz
- Adjacent Channel Selectivity – ≤65/60dB
- Intermodulation Rejection – ≤65/60dB
- Audio Frequency Power – ≥1w
- Frequency Stability – ± 2.5ppm
TRANSMITTER
- Output Power – ≤5w
- Modulation – F3E
- Spurious and Harmonics – ≥70dB
- FM Noise – <40dB
- Audio Frequency Distortion – ≤5%
- Frequency Stability – ± 2.5ppm
- Max. Frequency Deviation – ≤5kHz/2.5kHz
Entel HT446
Rugged, designed for gloved hand use, and with exceptionally loud audio, Entel’s HT commercial grade portable radios are specifically designed to withstand the everyday rigors of the outdoor workplace.
With over 20-Years’ experience exceeding the demands of our customers, Entel offers the most complete and established range of commercial-grade PMR446 portable radios available. Versions include Non-Display and LCD Display, as well as Intrinsically Safe variants (ATEX IIC)
Specification
General Specification
- Frequency range – 446.00625 to 446.09375MHz
- Channels – 16, 225
- Environmental rating – IP68 Submersible, 2m for 4 hours
- Military Standard – MIL-STD 81 OC/D/E/F
- Dimensions* – 130mm (h) x 59.5mm (w) x 37mm (d)
- Weight (with battery) – 277g
Transmitter
- RF power output – 0.5 watts
- Modulation type – 8K0G3E
Receiver
- Sensitivity – Better than -118dBm 12dB Sinad
- Rated Audio Output – 1W
Entel HT953
Rugged, designed for gloved hand use, and with exceptionally loud audio, Entel’s H commercial grade portable radios are specifically designed to withstand the everyday rigors of the outdoor workplace.
Specification
General Specification
- Frequency range – 446.00625 to 446.09375MHz
- Channels – 16, 225
- Environmental rating – IP68 Submersible, 2m for 4 hours
- Military Standard – MIL-STD 81 OC/D/E/F
- Dimensions* – 130mm (h) x 59.5mm (w) x 37mm (d)
- Weight (with battery) – 277g
Transmitter
- RF power output – 0.5 watts
- Modulation type – 8K0G3E
Receiver
- Sensitivity – Better than -118dBm 12dB Sinad
- Rated Audio Output – 1W
Motorola CLP446
Motorola Original accessories will make you and your CLP even more productive.
A variety of carrying options, earpieces, batteries, and chargers enable you to create the communications system that works best for you and your team.
Specification
- Voice Assisted Operation
- Smart Status Glow
- Customer Programming Software (CPS)
- Radio Configuration
- Scan
- Sleek Design
- Audio
- Internal Antenna
- Durability
- Battery
- Power
- Frequency Band
- Integrated Voice Solutions Capable
- Antimicrobial Protection
Motorola Talkabout 82 Extreme
Keeping you safer and connected in the harshest of environments
The TALKABOUT T82 Extreme is the rugged travel companion you need on your wildest adventures. With an IPX4 rating, the T82 EXTREME is weatherproof – able to withstand the harshest environments. The new hidden display comes alive when you need it and makes calling easier. The easy pairing button makes setup a breeze. A built-in LED torch provides emergency light when needed so you can read your map in the dark. And with essential accessories and a range of up to 10km*, the TALKABOUT T82 Extreme keeps you in touch whether you’re on the roughest treks or highest peaks. All of this is wrapped in a handy carrying case and available in three versions: Twin pack with everything you need to get you started, a Quad pack for larger groups, and a Remote Speaker Microphone pack that lets you speak and listen without having to reach for your radio.
Specification
- PMR446 radios – license-free
- Weatherproof IPx4
- Easy pairing
- Hidden display
- LED torch
- 16 channels plus 121 privacy codes
Motorola Talkabout T62
Keeping you in touch while you discover
Fully featured, tough, and stylish, the TALKABOUT T62 walkie-talkie is the ideal way to stay connected during outdoor adventures. At home, on the campsite, at a festival or simply hiking, the TALKABOUT T62 keeps you in touch. The easy pairing button makes setup a breeze and with USB charging, you can power up in a more convenient way. It is also license-free and includes key features such as an LCD display, 16 channels, and up to 8 km range, with no call charges.
Specification
- PMR446 radios – license-free
- Dual power
- Easy pairing
- USB charging
- Backlit display
- 16 channels plus 121 privacy codes
Motorola Talkabout T82
Go Adventure
The TALKABOUT T82 is the perfect partner for your next adventure. Durable, with an IPX2 rating, the T82 can take the drops and splashes you’re likely to encounter on your treks. The new hidden display comes alive when you need it and makes calling easier. The easy pairing button makes setup a breeze. A built-in LED torch provides emergency light when needed so you can read your map in the dark. And with a range of up to I Okm*, the T82 will ensure you stay connected.
Specification
- PMR446 radios – license-free
- Splash-proof IPx2
- Easy pairing
- Hidden display
- LED torch
- 16 channels plus 121 privacy codes
Motorola XT400
You need to communicate quickly without missing a beat – whether you’re coordinating resources at the construction site, managing maintenance technicians in an office complex, or monitoring resources on the manufacturing line. The XT400 Series two-way radios have the business smarts to help your teams work better together.
Specification
- Exceptionally Clear Audio
- Continuous Coverage
- Ergonomic design
- Durable, Water-Resistant
- Antimicrobial Protection
- Tri-colored LED
- Channels
- Channel Alias
- Advanced Voice Activation(VOX)
- Convenient Charging
- Easy to Programme
- Voice Prompts
- Easy Cloning
- License – Free PMR446 Frequencies
- Seamless XTNi Series Transition
Kirisun DP405S
The Kirisun DP405S is part of the Value Range of products. This DP405S is a digital 446 radio that does not require a radio license to operate. It is programmed with 16 digital 446 radio channels. A simple, stylish, cost-effective portable, offering both analog and digital modes of operation for 446. Loud and clear audio and voice annunciation is offered in a compact size while safety is supported with programmable features such as emergency call and lone worker features. A 2000mAH lithium-ion battery and single-unit charger are supplied as standard to provide excellent performance throughout a working shift.
Specification
General
- Frequency Range: 446-447MHz
- Programmed Channels (Digital): 16
- Channel/Zone Capacity: 256/16
- Channel Spacing: 25kHz/12.5kHz (Analog) 12.5kHz (Digital)
- Operating Voltage: 7.4V DC ±20%
- Battery: 2000mAH Li-ion (Standard)
- Battery Life(5-5-90 Duty Cycle, High TX Power) Analog: 30hours @ 2000mAh
- Battery Life(5-5-90 Duty Cycle, High TX Power) Digital: 36hours @ 2000mAh
- Frequency Stability: ±1.5 ppm
- Antenna Impedance: 50Ω
- Dimension (H·W·D) (with battery, without antenna): 116mm * 54mm * 31mm
- Weight (with standard battery): 280g (2000mAh)
- LCD Display: None
Receiver
- Sensitivity-Analogue: 0.22µV @ 12dB SINAD
- Sensitivity – Digital 0.22uV @ BER5%
- Selectivity: 60dB @ 12.5kHz, 70dB @ 25kHz (TIA-603)
60dB @ 12.5kHz, 70dB @ 25kHz (ETSI) - Spurious Response Rejection: 70dB @ 12.5kHz/25kHz (TIA-603)
65dB @ 12.5kHz/25kHz (ETSI) - Inter-modulation: 70dB @ 12.5kHz/25kHz (TIA-603)
70dB @ 12.5kHz/25kHz (ETSI) - Hum and Noise: 40dB @ 12.5KHz, 45dB @ 25KHz
- Rated Audio Power Output: 1W@ 16Ω
- Rated Audio Distortion: ≤3% (typically)
- Audio Response: +1~-3dB
- Conducted Spurious Emission: 57dBm @ 1GHz, 47dBm @ 1GHz
Transmitter
- RF Power Output: ≤0.5W
- FM Modulation: 11K F3E @ 12.5kHz 16K F3E @ 25kHz
- 4FSK Digital Modulation: 12.5kHz Data Only: 7K6 FXD
12.5kHz Data & Voice: 7K6 FXW - Modulation Limiting: ±2.5kHz @ 12.5kHz, ±5kHz @ 25kHz
- Radiated Spurious Emission: -36dBm < 1GHz, -30dBm > 1GHz
- FM Hum & Noise: 40dB @ 12.5kHz, 45dB @ 25kHz
- Adjacent Channel Power: 60dB @ 12.5kHz, 70dB @ 25kHz
- Audio Response: +1~-3dB
- Audio Distortion: ≤3%
- Digital Vocoder Type: AMBE+2™
- Digital Protocol: ETSI-TS102 361-1,-2,-3
Environment Specifications
- Operating Temperature: -30o~ +60o
- Storage Temperature: -40o +85o
- ESD: IEC610000-4-2 (Level4)±4kV (Contact) ±8kV (air)
Motorola T92 H2O WALKIE-TALKIES
Go Anywhere
Floating waterproof design1, rugged construction, and up to 10km range2, the T92 H2O keeps you connected with family and friends. The integrated torch has bright white and red modes and will automatically activate in contact with water. Press the emergency alert button to activate a hands-free call and sound a loud warning tone on your radio to signal to others in your group that you need help3. Supplied with rechargeable batteries, a mains charger with 2 micro USB plugs, belt clips with a built-in whistle, and a hard carry case, the T92 H2O has everything you need to stay connected during your wildest adventures.
Specification
- Model: Talkabout T92 H2O
- Colour: Yellow & Black
- Frequency Band: PMR446
- Tx Power: 500mW
- Bandwidth: 12.5Khz
- Channels: 16 +121 privacy codes4
- Weight: 246 g (with beltclip and 800mAh battery)
- Range2: Up to 10km
- Size WxHxD: 6.1 x 18.0 x 3.8 cm

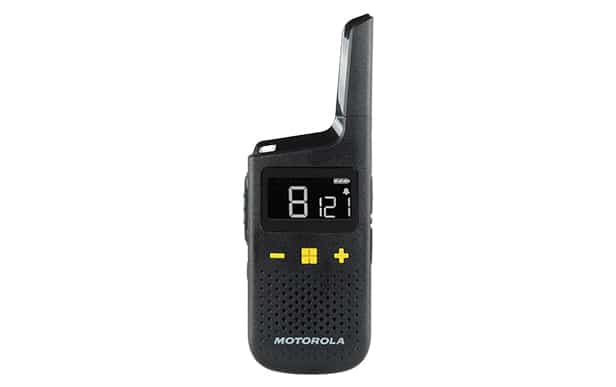

Motorola XT185 Two-Way Radio
Across the warehouse, shop floor, or school playground, the Motorola Solutions XT185 enables instant and clear communications at the touch of a button. Developed for business and commercial users, the XT185 is a general-purpose two-way radio, ideal for users needing to stay in touch with staff, colleagues, or team members quickly, easily, and economically. With long battery life, compact
size, lightweight, and easy pairing, the XT185 is the perfect radio for the cost-conscious user.
Specification
- Frequency Band : PMR4462
446.0-446.2 MHz - Range : 8 km¹
- Channel Capacity : 16²
- Repeater Capability : No
- Channel Bandwidth : 12.5 kHz
- PL Codes (Privacy Codes) : 38
- DPL Codes (Privacy Codes) : 83
- Battery Life w/Standard Li-Ion Battery : 24 hours³
- Radio Dimensions (H x W x D) : 136 x 47 x 21 mm
- Weight : Radio w/Standard Li-Ion Battery 100g

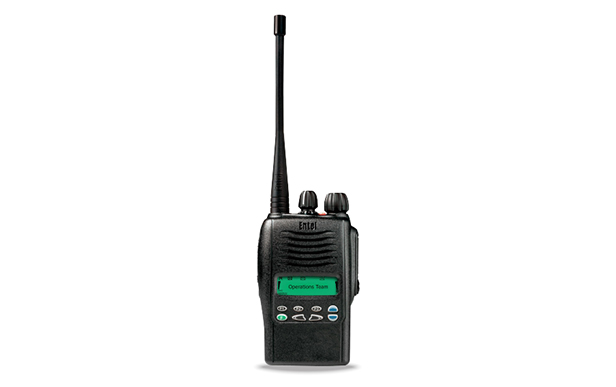

Entel HX446E
Ultra-compact, rugged and lightweight with exceptionally loud audio, Entel’s HX commercial grade portable radios deliver outstanding range & clarity. With over 20-Years’ experience exceeding the demands of our customers, Entel offers the most complete and established range of commercial grade portable radios available. Versions include: VHF, UHF, Entry (CTCSS), Advanced (Selcall & MPT1327).
Specification
- Channel Capacity : Non-Display – 16
LCD-Display – 255 - Frequency range VHF Low (mid) Band : 66 to 88MHz
- Frequency range VHF High Band : 136 to 174MHz
- Frequency range VHF Band III : 174 to 208MHz
- Frequency range UHF : 400 to 470MHz
- Frequency range PMR446 446 : to 446.1MHz
- Frequency range UHF Up Band : 450 to 520MHz
- Channel Spacing : 25KHz / 12.5KHz
- Operating Voltage : 7.4V
- Battery : Li-Ion 2000mAh
- Weight (with battery) : 233g
- Dimensions* : 30mm (h) x 59.5mm (w) x 37mm(d)
- Frequency Stability : 2.5ppm
- Operating Temperature : -20 to +55°C
- Dust and Liquid Intrusion : IP55
- Drop, Packing, Vibration & Shock : MIL-STD 810 C/D/E/F Standard
Hytera BD505LF
Excellent performance
With its innovative design, the BD505LF has better performance than analogue radios. Due
to excellent reception sensitivity, the communications range is further extended. The
BD505LF DMR digital radio offers good performance and provides stable communications.
Analogue and digital mode
The BD505LF supports both analogue and digital mode. Users can switch between the two
operating modes quickly and easily.
Clear voice
Use of digital coding and correction technology makes it possible to transmit human voices without any interference noise over large distances.
Specification
- Frequency range : UHF: 446 MHz
- Supported operating modes : • DMR Tier I (license-free DMR)
ETSI TS 102 361-1/2/3
• Analogue PMR446 - Channel capacity : 8
- Zone capacity : 3
- Channel spacing : 12.5 kHz (analogue)
25 kHz (digital) - Operating voltage : 7.2 V
- Battery service life (5/5/90 duty cycle) : approx. 16 h (digital)
approx. 12 h (analogue) - Standard battery : 1500 mAh (lithium-ion battery)
- Frequency stability : ± 0.5 ppm
- Antenna impedance : 50 Ω
- Dimensions (H × B ×T) : 108 × 54 × 29 mm
- Weight (with antenna and standard battery) : approx. 220 g
Hytera AP519
The AP5 series business radios are the perfect choice for instant communication. With a 3W speaker, the compact and light AP5 series can deliver loud and clear audio that allows you to hear and be heard in background noise. It has an incredibly long 18-hour battery life in its most minimal form. Type-C USB charge plug allows users to charge the radio with a power bank anywhere. With the extended range and a bunch of productivity and efficiency increasing features, the AP5 series will ensure you stay connected and productive.
Specification
AP515
- Frequency Range : 400-470MHz;136-174MHz
- Channel Capacity : 32
- Zone Capacity : 2
- Channels Per Zone : 16
- Channel Spacing : 12.5kHz/20kHz/25kHz
- Operating Voltage : 3.7V (rated)
- Battery : 4000mAh 3.7V
- Battery Life (5/5/90 Duty Cycle,High TX Power) : 18h
- Frequency Stability : ±0.5ppm
- Antenna Impedance : 50Ω
- Dimensions (H x W x D) : 105*55*29.5mm
- Weight(with antenna&battery) : 200g ±5g
- Display : \
- BT (optional) : BT 5.0 BLE+EDR
AP585
- Frequency Range : 400-470MHz;136-174MHz
- Channel Capacity : 128
- Zone Capacity : 8
- Channels Per Zone : 16
- Channel Spacing : 12.5kHz/20kHz/25kHz
- Operating Voltage : 7.4V (rated)
- Battery : 1500mAh 7.4V
2000mAh 7.4V (Optional) - Battery Life (5/5/90 Duty Cycle,High TX Power) : 12h(1500mAh)
16h(2000mAh) - Frequency Stability : ±0.5ppm
- Antenna Impedance : 50Ω
- Dimensions (H x W x D) : 115*55*29.5mm
- Weight(with antenna&battery) : 230g±5g
- Display : 1.44 inch LCD
- BT (optional) : BT 5.0 BLE+EDR
Hytera BP519
Features
DIGITAL AND ANALOG COMPATIBLE
Supports both digital and analog modes, compatible with your existing digital and analog systems and terminals. Powerful digital features like priority interrupt, basic encryption, text messaging, roaming will enhance your business service. The BP5 series has
extended range in class and features 64/128 channels, making group communication more flexible.
STURDY BODY
Wear-resistant and scratch-resistance body, standard IP54 dustproof and waterproof; large key design, flexible operation even with gloves.
Specification
BP515
- Frequency Range : UHF: 400-470 MHZ;VH F:136-174 MHz
- Channel Capacity : 64
- Zone Capacity : 4
- Channels Per Zone : 16
- Channel Spacing : 12.5kHz/20kHz/25kHz
- Operating Voltage : 7.4V
- Battery : 1500mAh (Standard); 2000mAh (Optional)
- Battery Life (5/5/90 Duty Cycle,High TX Power) : Analog: 12h(1500mAh), 16h(2000mAh)
Digital: 16h(1500mAh), 22h(2000mAh) - Frequency Stability : ±0.5ppm
- Antenna Impedance : 50Ω
- Weight(with antenna & battery) : 210g±5%g
- Dimensions (H x W x D) : 115X54.SX29.5mm
- BT ( optional ) : BT 5.0 BLE+EDR
- Display : N/A
BP565
- Frequency Range : UHF: 400-470 MHZ;VH F:136-174 MHz
- Channel Capacity : 128
- Zone Capacity : 8
- Channels Per Zone : 16
- Channel Spacing : 12.5kHz/20kHz/25kHz
- Operating Voltage : 7.4V
- Battery : 1500mAh (Standard); 2000mAh (Optional)
- Battery Life (5/5/90 Duty Cycle,High TX Power) : Analog: 12h(1500mAh), 16h(2000mAh)
Digital: 16h(1500mAh), 22h(2000mAh) - Frequency Stability : ±0.5ppm
- Antenna Impedance : 50Ω
- Weight(with antenna & battery) : 230g±5%g
- Dimensions (H x W x D) : 115X54.SX29.5mm
- BT ( optional ) : BT 5.0 BLE+EDR
- Display : 1.77 inchTFT
