Hytera PNC370
The PNC370 is a compact, easy-to-operate LTE handheld radio. Thanks to PTT over Cellular (PoC), it enables fast voice communication and data transmission as well as a nearly limitless connection over LTE mobile radio networks (4G) & WiFi. The innovative two-way radio is the ideal solution platform for a wide range of broadband applications, such as optimizing operating sequences, and combines all the advantages of professional mobile radio (PMR) with greater radio coverage and better audio quality.
Specification
- LTE : FDD LTE: B1/3/5/6/7/8
- WCDMA : B1
- WLAN : 2.4 GHz, 802.11 b/g/n
- Bluetooth : BT 4.1
- Localization : GPS/BDS/GLONASS
- Dimensions (H x W x D) : 121 x 55.5 x 24 mm
- Weight (with battery) : 185 g
- Operating system : Android 5.1
- Processor : MSM8909, Quad-core, 1.1 GHz
- Memory : RAM: 512 MB, ROM: 4 GB
- SIM card : Micro SIM
- Display : 2.0″, 320 x 240 pixels, TFT/non-touch
- Connectors : Micro USB 2.0, 2.5 mm audio connection, interface for 6-unit charger
- Operating voltage : 3.6 V (nominal)
- Battery : 3100 mAh (Li-ion)
- Battery service life : ≥ 18 h (5-5-90)
- Audio power output : 1 W (nominal), 2 W (maximum)
- Microphone : Dual microphone noise cancellation
- Protection against dust and moisture : IP54
- Shock and vibration resistance : MIL-STD-810 G standard
- Drop resistance : 1.2 m
- ESD : IEC 61000-4-2, ±8 kV (contact), ±12 kV (air)
- Operating temperature range : -20 °C to +60 °C
- Lagertemperaturbereich : -30 °C to +70 °C

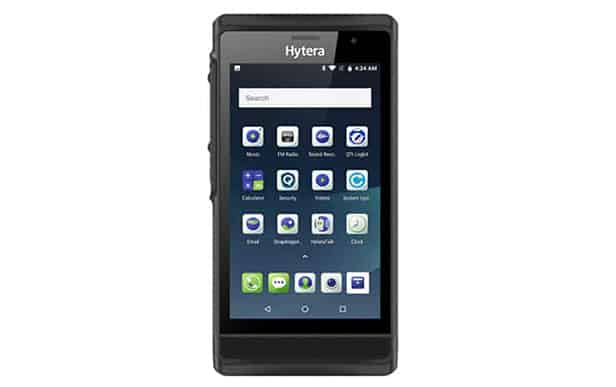

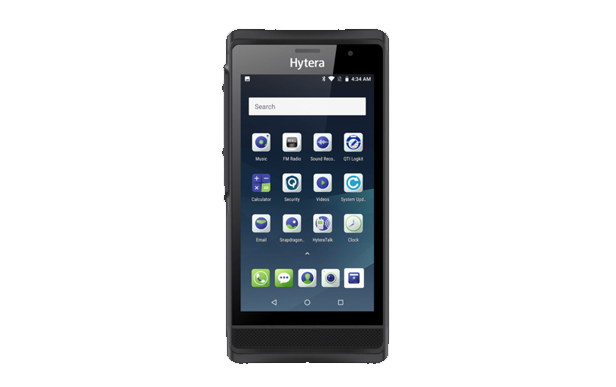

Hytera PNC550
The Hytera PNC550 is a smartphone with PTT button for fast PoC communication (PTT over Cellular). The combination of versatile Android smartphone and PMR group calls ensures lightning-fast voice communication and fast and smooth operations.
Highlights:
- Smartphone with PTT button for fast group communication
- Uses the public LTE network and WLAN for low operating costs
- Dual SIM for maximum flexibility
- Low-cost voice communication – no licence required
- Use of Android apps
- High-resolution HD camera for comprehensive image and video services
- Removable and powerful battery (4,000 mAh)
Specification
- Dimensions (H x W x D) : 156.5 x 76 x 14 mm
- Weight (with battery) : < 250 g
- Operating system : Android 8.1
- Processor : Qualcomm, 1,8 GHz
- Memory : RAM: 3 GB, ROM: 32 GB, expandable to 64 GB with Micro SD card
- SIM Card : 2 x Nano-Sim, 1 x Micro SD
- Display : 5.0″Gorilla Glass, 1080 x 720, Capacitive touch, Multi-Touch, Support glove mode, Support rain, pattern mode
- Connectors : USB 2.0 (Type C) charger interface, 3.5 mm common audio interface
- Operating voltage : 3,7 V (nominal)
- Storage battery : 4000 mAh (Li-ion)
- Battery service life : >12 h (5-5-90 operating cycle) with Hytera App
- Audio power output : 1 W (nominal), 2 W (max)
- Microphone : 2 (dual mic noise suppression)
- Camera : 13 MP AF, 8 MP FF
- Side keys : 1 x PTT, 2 x volume key (+ -), 1 x alarm key, 1 x power key
- Indicator light : 1 (red/yellow/green)
- Sensor : Gravity sensor, compass, proximity sensor light sensor
- Audio formats : MP3: aacplus, eAAC, AMR-NB, AMR-WB, G-711, Windows Media Audio, (WMA) 9/10 Pro
- Video and Image Formats : H.263, PO, H.264, BP/MP/ HP, MPEG-4, SP/ASP, DivX, 4x/5x/6x, VP8, VP9, MP, JPG, GIF, BMP, PNG, WEbP

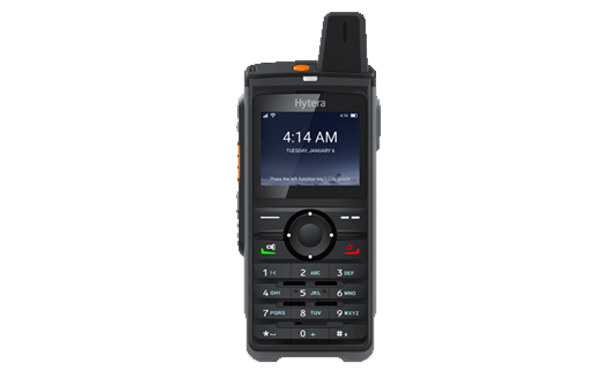

Hytera PNC380
The PNC380 is an easy-to-operate LTE handheld radio with the characteristics of a mature PMR radio.
Thanks to PTT over Cellular (PoC), it enables fast voice communication and data transmission as well as a nearly limitless connection over LTE mobile radio networks (4G) & WiFi.
The PNC380 is the ideal solution for various scenarios – combining the classical advantages of PMR radios like full keypad, dedicated emergency button and clear audio with broadband applications and innovative features like HD rear camera and NFC chip (Pro model).
- HD camera (5MP) with flashlight (PNC380 Pro)
- NFC functionality (PNC380 Pro)
- Enhanced ergonomic design
- Full keypad and dedicated emergency button
- Dual-mic noise reduction technology
- Long-lasting battery (4,000 mAh)
- IP67 and MIL-STD-810G

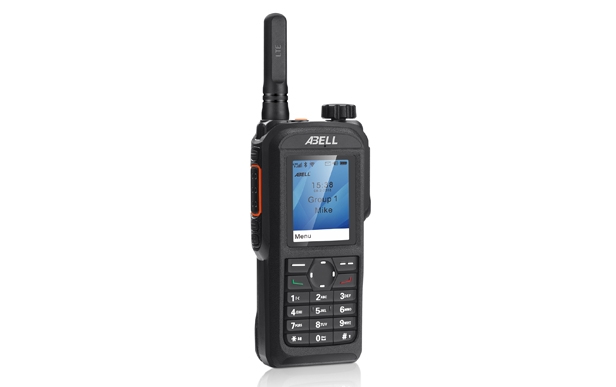

Abell A760L
- Compliance with MIL-STD 810, CE, FCC
- Ultra-slim design, elegant and handy
- 3600mAh Li-ion battery serves as strong backup
- GPRS/EDGE/3G/4G/WIFI
- 2.0” Large Color LCD
- Unlimited Talking Range
- Stationary Waterproof Earphone
- IP67 Dust& Water Poof
- USB & Traditional Charge
Specification
A760L(E)
- TDD LTE : Band 38/40
- FDD LTE : Band 1/2/3/5/7/8/20/28
- WCDMA : Band 1/2/5/8
- GSM : Band 2/3/5/8
- WI-FI : IEEE 802.11 b/g/n 2.4G
- Positioning System : GPS/ Beidou/ Glonass
A760L(U)
- FDD LTE : Band 2/4/5/7/12/13/17/25/26
- WCDMA : Band 1/2/4/5/8
- GSM : Band 2/5
- WI-FI : IEEE 802.11 b/g/n 2.4G
- Positioning System : GPS/ Beidou/ Glonass
Kirisun T450 PoC Two-Way Radio
The T450 PoC two-way radio provides PTT, dispatch and
high-precision positioning services. It supports 2G/3G/4G and
Wi-Fi networks to achieve more stable network connections,
meeting ultra-long-distance communication requirements. It
also achieves smart patrol together with Kirisun PoC dispatcher. With excellent sound quality and loud voice, it delivers
good user experience even in noisy environment.
- Compact design with High Fidelity Audio
- Support six-mode 4G Networks
- Anti-skid Upper Edges
- Group Selection via Knob
- Smart Patrol
Specification
Network
Asia & Europe
- TDD-LTE: Band 38/40/41
- FDD-LTE: Band 1/3/5/7/8/20
- WCDMA: Band 1/2/5/8
- GSM/GPRS: Band 2/3/5/8
America
- FDD-LTE: Band 1/2/4/5/7/12/13/17/28a/28b
- WCDMA: Band 1/2/4/5
- GSM/GPRS: Band 2/5
RAM+ROM
- 512MB+4GB
Operating System
- Android 7.0
Battery
- 3.8V 3400mAh
Wi-Fi
- 2.4/5GHz
Bluetooth
- 4.0 BLE
Positioning
- GPS/AGPS
NFC
- Supported
Dimension
- 113mm×60mm×29mm
Weight
- ≤200g
Display
- 0.96’’ color display
Operating Temperature
- -20℃ + 50℃
Storage Temperature
- -40℃ + 75℃
Protection Levels
- IP54
Kirisun T650 4G PoC Smart Device
The new generation Kirisun 4G PoC T650, based on Android 10.0 operating system, uses a 5.5-inch ultra-large HD touch
screen, and a 5100mAh large-capacity battery, bringing smart experience comparable to smart phones. T650 is equipped with
2W speakers and dual microphones, so you can enjoy superb sound quality in various environments. With 13MP rear cameras
and 5MP front cameras, it provides excellent image and video transmission quality and smooth real-time video services. T650
has a high protection level of IP68. It adopts four-corner anti-collision and screen sinking anti-scratch design to help users calmly
deal with various accidents and challenges.
- Global communication via 4G network
- Android 10.0 OS
- 5.5” HD touch screen
- 5100mAh large-capacity battery
- Dual PTT keys
- IP68 compliant
Specification
Network
Network Bands
- GSM: B2/B3/B5/B8(1900/1800/850/900MHz)
- WCDMA: B1/B2/B5/B8
- 4G TDD：B38/B39/B40/B41
- 4G FDD：B1/B2/B3/B5/B7/B8/B20/B28A/B28B
Wi-Fi
- 802.11 a/b/g/n/ac 2.4G & 5G
Hardware
- Dimension(H x W x D): 157.5*75.9*14.7mm (max. thickness 18.8mm
- Weight: 255G (include battery)
- Screen：5.45″ HD IPS LCD, 5-point touch,
support glove mode and wet mode - Screen resolution：1440*720 pixels
- Battery: 5100mAh Li-polymer battery
4GB RAM + 64GB ROM, support - Camera: 5MP front cam + 13MP rear cam
- NFC: Supported
- Bluetooth: BT 5.0
- BT 5.0: GPS, BDS and GLONASS
- Speaker: 2W
- Key: Power, volume +/-, PTT, SOS, programmable key
- Interface: Type-C 2.0, 3.5mm audio interface
- SIM card: Dual Nano SIM cards
- Sensor: Gravity sensor, light sensor and proximity sensor
- IP rating: IP68
Software
- OS: Android 10.0

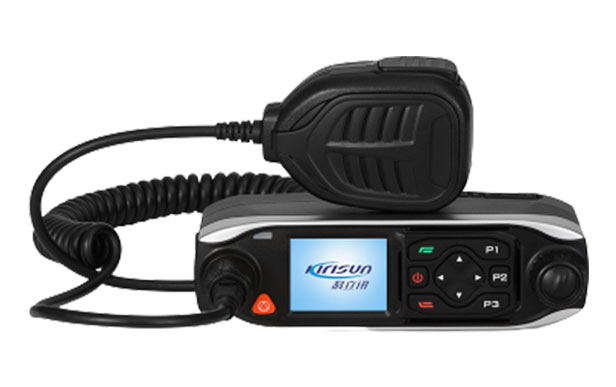

Kirisun M50 PoC Mobile Radio
- Professional for Communication in Vehicles
- Global PTT Service via 2G/3G/4G/Wi-Fi Network
- Easy -to-deploy & Easy-to-expand Network
- Larg Coverage & Less Limit in Capacity
Specification
Communications Mode & Frequency Band
Asia/Europe/Australia:
- TDD-LTE: Band 40
- FDD-LTE: Band 1/3/4/5/7/8/20/28A/28B
- CDMA IX/EVDO: BC0
- GSM/GPRS/EDGE: 850/900/1800/1900
America
- FDD-LTE: Band 1/2/4/5/7/12/17/19/25/26/28A/28B
- WCDMA: Band1/2/4/5
- GSM/GPRS/EDGE: 850/1900
Wi-Fi
- 2.4/5Ghz
RAM+ROM
- 512MB+4GB
Operating System
- Android 6.0
Working Voltage
- 13-24V
Dimensions
- 152.6mm*43.4mm*49mm
Weight
- ≤250g
Display
- 1.77″color display screen, resolution 128*160
Working Temperature
- -20℃+-55℃
Storage Temperature
- -40℃+-80℃
Kirisun T60 T65 PoC Portable Radio
- Global PTT Service
- Support NFC, Bluetooth and Wi-Fi
- Professional Appearance for Commercial Users
- Easy-to-deploy & Easy-to-expand Network
Specification
Communications Mode & Frequency Band
Asia/Europe：
- TDD-LTE：Band 38/40/41
- FDD-LTE：Band 1/3/5/7/8/20
- WCDMA: Band 1/2/5/8
- GSM/GPRS：Band 2/3/5/8
America
- FDD-LTE: Band 1/2/4/5/7/12/13/17/28A/28B
- WCDMA：Band 1/2/4/5
- GSM/GPRS: Band 2/5
Wi-Fi
- 2.4/5GHz
RAM+ROM
- 512MB+4GB
Operating System
- Android 7.0
Battery
- 3.7V 3600mAh (standard)/5200mAh (optional)
Dimensions
- 115mm*54mm*30mm
Weight
- ≤300g
Display
- 128*64 resolution，single color LCD (T60)
Water-proof & Dust-proof
- IP54
Working Temperature
- -20℃ + 50℃
Storage Temperature
- -40℃ + 75℃

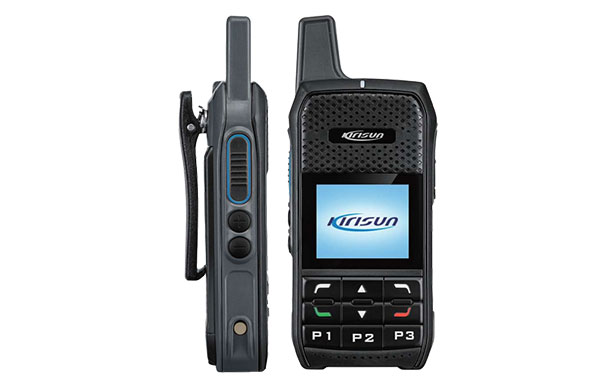

Kirisun T350 PoC Two-Way Radio
Designed with built-in Bluetooth, Wi-Fi, GPS/GLONASS,
NFC and OTG modules, the T350 is ideal for various
application scenarios. Its ultra-slim body offers a comfortable
grip. Three programmable keys achieve such functions as
alarm, specified call type, user announcement and voice
playback, satisfying your preferences. With a light weight of
200g, it is convenient to carry around. Embedded Cloud-SIM
allows web surfing without a SIM card and capable of
automatic network selection, it is simply powered up to use.
- Slim and light
- 24mm super slim body, light weight
- 1.77’’ color display
- Support patrol application
- Support Cloud-SIM for flexible and stable
network connection
Specification
Frequency Bands
Europe/Middle East/Africa/Korea/Thailand/India:
- LTE FDD: B1/B3/B5/B7/B8/B20
- LTE TDD: B38/B40/B41
- WCDMA: B1/B5/B8
- GSM: 850/900/1800/1900 MHz
North America:
- LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26
- WCDMA: B1/B2/B4/B5/B8
- GSM: 850/1900MHz
Australia/Taiwan/Brazil:
- LTE FDD: B1/B3/B5/B7/B8/B28
- LTE TDD: B40
- WCDMA: B1/B2/B5/B8
- GSM: 850/900/1800/1900 MHz
RAM+ROM
- 1GB+8GB
Operating System
- Android 7.1
Battery
- 3.8V 3000mAh
Wi-Fi
- 2.4GHz/5GHz
Bluetooth
- 4.0 BLE
Positioning
- GPS+AGPS+GLONASS
NFC
- Supported(Optional)
Dimension
- 138mm×58mm×25mm
Weight
- ≤200g
Display
- 1.77’’ color display screen
Operating Temperature
- -20℃ + 60℃
Storage Temperature
- -40℃ + 85℃
Protection Levels
- IP54
Kirisun DP810
Kirisun Intrinsically Safe DMR portable radio DP810 is specially designed and
engineered to operate safely in hazardous environments providing additional safety and reliability keeping your workers safe in the toughest environments such as flammable gases and combustible dust and other hazards.
Specification
General
- Frequency Range: 350-400MHz, 400-470MHz
- Channel Capacity: 1024
- Zone Capacity: 248
- Channel Spacing: 12.5kHz/20kHz/25kHz
- Operating Voltage: 7.4V DC±20%
- Battery(Standard): 1960mAh
- Frequency Stability: ±0.5 ppm
- Antenna Impedance: 50Ω
- Dimensions(H·W·D) (with standard battery, without antenna):157.5mmx56mmx41.4mm
- Weight (with standard battery): 500g
- LCD Display: 1.77inch, 5 rows
Transmitter
- RF Power Output: ≤ 2W
- FM Modulation: 11K0F3E@12.5kHz；14K0F3E@20kHz; 16K0F3E@25kHz4FSK
- Digital Modulation: 12.5kHz Data: 7K60F1D&7K60FXD,12.5kHz Voice: 7K60F1E&7K60FXE Combination of 12.5kHz Voice and Data: 7K60F1W
- Modulation Limiting: ±2.5kHz@12.5kHz, ±4.0kHz@20kHz, ±5.0kHz@25kHz
- FM Hum & Noise: 40dB@12.5kHz, 45dB@20/25kHz
- Adjacent Channel Power: 60dB@12.5kHz, 70dB@20/25kHz
- Audio Response: +1~-3dB
- Audio Distortion: ≤3%
- Digital Vocoder Type: AMBE+2™
- Digital Protocol: ETSI-TS102 361-1,-2,-3 ,-4
Receiver
- Sensitivity Analog: 0.22μV(12dB SINAD)
- Sensitivity Digital: 0.22μV/BER5%
- Selectivity TIA-603 ETSI: 60dB@12.5kHz, 70dB@20/25kHz(TIA-603） 60dB@12.5kHz,
- Intermodulation: 70dB@20/25kHz(ETSI)
- Spurious Response: 70dB@12.5kHz/25kHz(TIA-603)
Rejection: 65dB@12.5kHz/25kHz(ETSI)
TIA-603: 70dB@12.5/20/25kHz(TIA-603)
ETSI: 70dB@12.5/20/25kHz(ETSI) - Hum and Noise: 40dB@12.5KHz, 45dB@20/25KHz
- Rated Audio Power Output: 1W
- Audio Response: +1~-3dB
- Conducted Spurious Emission: -57dBm@＜1GHz,-47dBm@1GHz
Environment Specifications
- Operating Temperature: -20℃~ +50℃
- Storage Temperature: -40℃～+85℃
- ESD: IEC610000-4-2(Level4) ±4kV(Contact) ±8kV(air)
- American Military Standard: MIL-STD-810-C/D/E/F/G
- Dust & Water Protection: IP68 Standard
- Humidity: Per MIL-STD-810 C/D/E/F/G Standard
- Shock & Vibration: Per MIL-STD-810 C/D/E/F/G Standard
- Anti-explosion levels (ATEX):II 2G Ex ib IIC T4(Gas) II 2D Ex ib IIIC T120℃ IP5X(Dust)
- Anti-explosion levels(IECEx): Ex ib IIC T4(Gas)Ex ib IIIC T120℃ IP5X(Dust)
GPS
Accuracy specs are for long-term tracking (5 satellites visible at nominal -130dBm)
- TTFF(Time To First Fix) Cold Start: <1 minute
- TTFF(Time To First Fix) Hot Start: 10 seconds
- Horizontal Accuracy :10m
