DN400 Series
4G LTE Wi-Fi PoC Radio
- MCX (Mission Critical Services) Ready
- Industrial Grade IP68
- Basic to Advanced Configuration
- Simple User Management
Specification
- Frequency Bands – DN495 EMEA, Korea, Thailand, India
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40
WCDMA: B1/B5/B8
GSM: 850/900/1800/1900MHz
2.4G/5.8G 802.11 a/b/g/n*
Other band variants available on request - Wi-Fi – 2.4GHz / 5.8GHz 802.11 a/b/g/n*
- Bluetooth – BT2.1+EDR / 3.0 / 4.1LE
- Satellite positioning – GPS / GLONASS / BeiDou (BDS)
- Dust & Liquid protection – IP68 (2 metres for 4 hours fully submersible)
- Shock & Vibration Drop test Packing test – MIL-STD-810 C/D/E/F/G
- Encryption – AES256
- ESD – IEC 61000-4-2
- Approvals – Please see: www.entel.co.uk/red

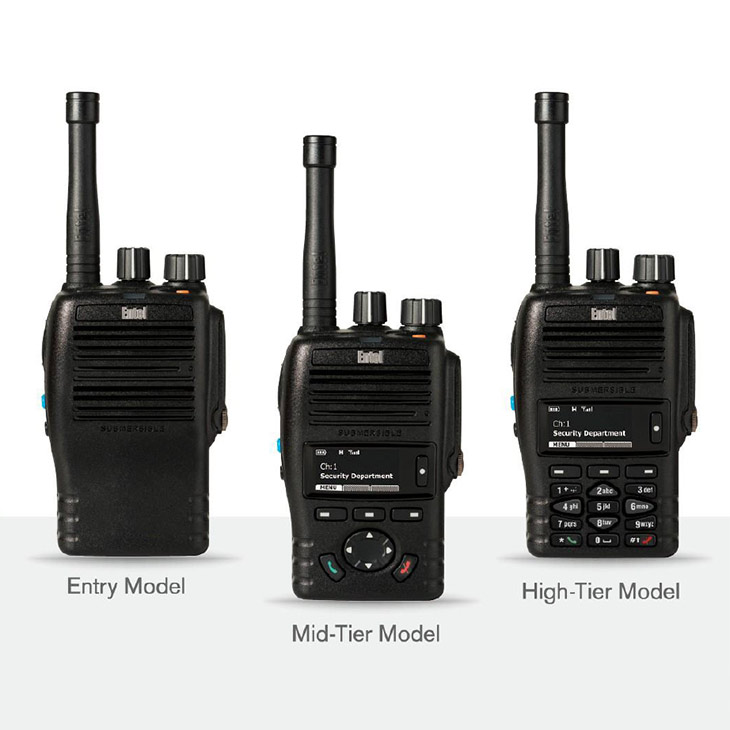

DX400 Series
Business Critical Communications
- Advanced engineering for crystal clear audio
- Submersible IP68
- Secure communication
- Ultra-Compact
Specification
- Channel Capacity – DX4x2/DX446E – 16 channels DX4x5/x6/DX446L – 64 channels/ 8 zones
- Analogue Channel Spacing – 25KHz/12.5KHz
- Digital Channel Spacing – 12.5KHz
- Vocoder – AMBE+2
- Operating Voltage – 7.6V
- Battery – CNB420E 1350mAh Lithium-Ion, CNB450E 2000mAh Lithium-Ion
- Weight (with battery) – 243g with CNB420E, 267g with CNB450E
- Overall Dimensions (HxWxD) – 97mm x 59.5mm x 33mm (with CNB420E) , 97mm x 59.5mm x 37mm (with CNB450E)
- Frequency Stability – 1.5ppm
- Antenna Impedance – 50 ohm
- Operating Temperature – -20 to +55°C
- Dust and Liquid Intrusion – IP68 2 meters for 4 hours
- Drop Test – MIL-STD 810 C/D/E/F/G Standard
- Packing Test – MIL-STD 810 C/D/E/F/G Standard
- Vibration and Shock – MIL-STD 810 C/D/E/F/G Standard
- Approvals – Analogue mode RF EN 300 086 v2.1.2
Digital mode RF 300 113 v2.2.1
EMC EN 301 489-1 v2.2.0 &
EN 301 489-5 v2.2.0
Safety (LVD) EN 60950:2006, Al, Al 1, Al 2 &A2 SAR EN 50566:2017, EN 62311:2008 & EN 62209-2:2010 - Air Interface (DMR) – ETSI TS 102 361
HT Series Marine
Business Critical Communications
- Commercial Grade
- MED Approved
- ATEX II2 G Ex ib IIC
ATEX II2 G Ex ib IIC - Ex ib IIA T4
Specification
- Frequency range VHF – 156 to 163.275MHz (INT, USA. CAN)
- Frequency range UHF 400 to 470MHz
- Frequency range UHF UP Band 450 to 520MHz
- Channel Spacing VHF — 25KHz, UHF — 25KHz / 12.5KHz
- Operating Voltage 7.4V
- Battery – Li-Ion 2000mAh (1800mAh ATEX & IECEx)
- Weight (with battery) 277g
- Dimensions* 130mm (h) x 59.5mm (w) x 37mm (d)
- Frequency Stability 2.5ppm
- Operating Temperature -20 to +55°C
- Dust and Liquid Intrusion IP68 submersible 2 meters for 4 hours
- Drop, Packing, Vibration & Shock MIL-STD 810 C/D/E/F
MOTOTRBOTm DM1400 AND DM1600 MOBILE RADIOS
Your people are on the move, delivering cargo, picking up consignments, driving passengers to their destinations. You need to keep them in touch and on track efficiently. And you want to make sure the radios they use are as affordable and adaptable as possible. Now there are flexible mobiles that give you great voice communications today, and a path to crisp and clear digital voice communications when you’re ready. Versatile and powerful, MOTOTRBO combines the best of two-way radio functionality with the latest analog and digital technology. The MOTOTRBO portfolio offers the right device for the right user, from voice-only portables to feature-rich voice and data radios.
Specification
- Analogue / Digital
- Voice Communications
- Dual Capacity Direct Mode
- Numeric Display (DM1400)
- Alphanumeric Display (DM1600)
- Digital Mobile Radio (DMR) Standards Compliant
- Transmit Interrupt (Decode Only)
- Basic Privacy
- Voice Announcement
- IP54 Rated
- Radio Management Suite Compatible
MOTOTRBOTM DM2600 MOBILE RADIOS
Picking up cargo or re-routing buses or delivery trucks, how do you make sure your people stay connected and safe? MOTOTFiB0 can help by putting the power of digital communications within reach. Versatile and powerful, the MOTOTRBO DM2600 combines the best of two-way radio functionality with the latest digital technology for enhanced voice communications.
Specification
- Analogue / Digital
- Voice Communications
- Alphanumeric Display
- Intelligent Audio
- Enhanced Privacy
- Dual Capacity Direct Mode
- Digital Mobile Radio (DMR) Standards Compliant
- Integrated Analogue 5 Tone Signalling
- Voice Announcement
- Texting
- IP54 Rated
- Radio Management Suite Compatible
- Transmit Interrupt
- Digital Telephone Interconnect
- Over The Air Programming (OTAP)
- IP Site Connect
- Capacity Plus
- Linked Capacity Plus
MOTOTRBO' DM4000e SERIES
With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more productive. The DM4000e Series is designed for the skilled professional who refuses to compromise. With high-performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organization.
Specification
- 4FSK Digital Modulation – 12.5 kHz Data: 7K60F1D and 7K6OFXD, 12.5 kHz Voice: 7K60F1 E and 7K6OFXE, Combination of 12.5 kHz Voice and Data: 7K60F1W
- Digital Protocol – ETSI TS 102 361-1, -2, -3
- Conducted/Radiated Emissions (TIA603D) – -36 dBm < 1GHz, -30 dBm > 1GHz
- Adjacent Channel Power – 60dB (12.5 kHz) 70dB (202/ 25 kHz)
- Frequency Stability – ± 0.5 ppm
MOTOTRBIT DP1400 PORTABLE RADIO
You want to connect your workforce as efficiently as possible. You expect your radios to be affordable but flexible, so they can evolve with you. Now there’s a portable that gives you great voice communications today, and a path to crisp and clear digital voice communications when you’re ready.
Specification
- Analogue / Digital
- Voice Communications
- Dual Capacity Direct Mode
- Digital Mobile Radio (DMR) Standards Compliant
- Transmit Interrupt (Decode Only)
- Basic Privacy
- Voice Announcement
- IP54 Rated
- Radio Management Suite Compatible
MOTOTRBO' DP2000e SERIES
With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more efficient. The DP2000e Series is designed for the everyday worker who needs effective communications. With systems support and loud, clear audio, these next-generation radios deliver cost-effective connectivity to your organization.
Specification
TRANSMITTER SPECIFICATIONS
- 4FSK Digital Modulation – 12.5 kHz Data: D and 7K60FXD, 12.5 kHz Voice: 7K60Fl E and 71<60FXE, Combination of 12.5 kHz Voice and Data:71<60FlW
- Digital Protocol – ETSI TS 102 361-1, -2, -3
- Conducted/Radiated Emissions(TIA603D) – -36 dBm<1GHz, -30 dBm> IGHz
- Adjacent Channel Power – 60dB (12.5 kHz), 70dB (201 / 25 kHz)
- Frequency Stability – ± 0.5 ppm
RECEIVER SPECIFICATIONS
- Analogue Sensitivity (1 2dB SINAD) – 0.16 uv
- Digital Sensitivity (5% BER) – 0.14 uv
- Intermodulation (TIA603D) – 70 dB
- Adjacent Channel Selectivity,(TIA603A)-lT – 60 dB (12.5 kHz), 70 dB (201 / 25 kHz)
- Adjacent Channel Selectivity, (TIA603D)-2T – 45 dB (12.5 kHz), 70 dB (201 / 25 kHz)
- Spurious Rejection (TIA603D) – 70 dB
MOTOTRBOM DP3000e SERIES
With this dynamic evolution of MOTOTRBO digital two-way radios, you’re more agile, better connected and safer. The DP3000e Series is designed for the mobile professional who needs effective communications. With a compact design, plain or display models, IMPRESTM energy and high -performance integrated voice and data, these next-generation radios deliver comprehensive connectivity to your organization.
Specification
TRANSMITTER SPECIFICATIONS
- Channel Spacing – 12.5, 20, 25 kHz
- 4FSK Digital Modulation – 12.5 kHz Data: 7K60FlD and 71<60FXD 12.5 kHz Voice: 7K60FlE and 71<60FXE Combination of 12.5 kHz Voice and Data:71<60FlW
- Digital Protocol – ETSI TS 102 361-1, -2, -3
- Conducted/Radiated Emissions (TIA603D)- -36 dBm < IGHz, -30 dBm > IGHz
- Adjacent Channel Power – 60dB (12.5 kHz), 7OdB (20 / 25 kHz)
- Frequency Stability – ± 0.5 ppm
RECEIVER SPECIFICATIONS
- Analogue Sensitivity (1 2dB SINAD) – 0.16 uv
- Digital Sensitivity (5% BER) – 0.14uV
- Intermodulation (TIA603D) – 70 dB
- Adjacent Channel Selectivity, (TIA603A)-lT – 60 dB (12.5 kHz), 70 dB (20 / 25 kHz)
- Adjacent Channel Selectivity,(TIA603D)-2T – 45 dB (12.5 kHz), 70 dB (20 / 25 kHz)
- Spurious Rejection (TIA603D) – 70 dB
AUDIO SPECIFICATIONS
- Digital Vocoder Type – AMBE+2TM
- Audio Response – TIA603D
- Rated Audio – 0.5w
- Audio Distortion at Rated Audio – 3%
- Hum and Noise – -40 dB (12.5 kHz), -45 dB (20 / 25 kHz)
- Conducted Spurious Emissions(TIA603D) – -57 dBm
MOTOTRBOM DP4000e SERIES
With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more productive. The DP4000e Series is designed for the skilled professional who refuses to compromise. With high-performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organization.
Specification
TRANSMITTER SPECIFICATIONS
- Channel Spacing – 12.5, 20′, 25 kHz
- 4FSK Digital Modulation – 12.5 kHz Data: 7K60F1D and 7K6OFXD, 12.5 kHz Voice: 7K60F1 E and 7K6OFXE, Combination of 12.5 kHz Voice and Data: 7K60F1W
- Digital Protocol – ETSI TS 102 361-1, -2, -3
- Conducted/Radiated Emissions (TIA603D) – -36 dBm < 1 GHz, -30 dBm > 1 GHz
- Adjacent Channel Power – 60dB (12.5 kHz) 70dB (202/ 25 kHz)
- Frequency Stability – ± 0.5 ppm
RECEIVER SPECIFICATIONS
- Analogue Sensitivity (12dB SINAD) – 0.16 uV
- Digital Sensitivity (5% BER) – 0.14 uV
- Intermodulation (TIA603D) – 70 dB
- Adjacent Channel Selectivity, (TIA603A)-1T – 60 dB (12.5 kHz), 70 dB (202 / 25 kHz channel)
- Adjacent Channel Selectivity, (TIA603D)-2T & (TIA603C)-2T – 45 dB (12.5 kHz), 70 dB (202 / 25 kHz)
- Spurious Rejection (TIA603D) – 70 dB
AUDIO SPECIFICATIONS
- Digital Vocoder Type – AMBE+2im
- Audio Response – TIA603D
- Rated Audio – 0.5 W
- Audio Distortion at Rated Audio – 3%
- Hum and Noise – -40 dB (12.5 kHz) -45 dB (202/ 25 kHz)
- Conducted Spurious Emissions (TIA603D) – -57 dBm
MOTOTRBO DP4000Ex SERIES ATEX/IECEx RADIO
Threats from explosive gas, combustible dust or chemical vapors, from an oil rig to an open mine, your workers confront them daily. Safe, reliable communication is absolutely critical in such dangerous environments. That’s where the power and performance of MOTOTRBO digital radios stand out.
The MOTOTRBO DP4000 Ex Series combines the best of two-way radio functionality with the latest digital technology. It integrates voice and data seamlessly, offers enhanced features that are easy to use, and delivers increased capacity to efficiently connect all your crews. With exceptional voice quality, long battery life and ATEX/IECEx-rated for safety, the DP4000 Ex Series keeps your workers connected safely and productively, wherever the job takes them.
Specification
DP4801 Ex DISPLAY PORTABLE
- Frequency Band : UHF B1 (403-470MHz) and VHF (136-174MHz)
- Zone Capacity : 250
- Max. No. of Conv. Channels or Personality Capacity : 1000
- Dimensions (H x W x L) with Li-Ion battery : 138.5 x 56.7 x 39.8mm
- Weight with Li-Ion battery : 482.59
- Power Supply : 7.4 V Nominal
- FCC Description : UHF B1:- ABZ99FT4091, VHF:- ABZ99FT3089
- Programmable Buttons : 5
- IC Description : UHE:-109AB-99FT4091, VHF:-109AB-99FT3089
- Gas Rating : ATEX:- Class II 2G Ex ib IIC T4 Gb
- Dust Rating : ATEX:- Class II 2D Exib IIIC T130 °C Db
- Mining Rating : ATEX:- Class I M2 Ex ib I Mb
- Ingress Protection (IP) Rating : IP67*
- Typical battery life with IMPRES Li-Ion (5/5/90 duty cycle) Note:- No GOB, No GPS, Analogue Conventional : 16 hrs
- Typical battery life with IMPRES Li-lon (5/5/90 duty cycle) Note:- No GOB, No GPS, Digital Conventional : 19 hrs
DP4401 Ex NON-DISPLAY PORTABLE
- Frequency Band : UHF B1 (403-470MHz) and VHF (136-174MHz)
- Zone Capacity : 2
- Max. No. of Conv. Channels or Personality Capacity : 32
- Dimensions (H x W x L) with Li-Ion battery : 138.5 x 56.7 x 37.8mm
- Weight with Li-Ion battery : 455.5g
- Power Supply : 7.4 V Nominal
- FCC Description : UHF B1:- ABZ99FT4091, VHF:- ABZ99FT3089
- Programmable Buttons : 3
- IC Description : UHF 109AB-99F T4091, VHF:-109AB-99FT3089
- Gas Rating : ATEX:- Class II 2G Ex ib TIC T4 Gb
- Dust Rating : ATEX:- Class II 2D Exib IIIC T130 °C Db
- Mining Rating : ATEX:- Class 1 M2 Ex ibl Mb
- Ingress Protection (IP) Rating : IP67*
- Typical battery life with IMPRES Li-Ion (5/5/90 duty cycle) Note:- No GOB, No GPS, Analogue Conventional : 16 hrs
- Typical battery life with IMPRES Li-lon (5/5/90 duty cycle) Note:- No GOB, No GPS, Digital Conventional : 19 hrs
MOTOTRBO SL1600 PORTABLE RADIO
The MOTOTRBO’ SL1600 provides reliable push-to-talk communication for the mobile, everyday user in an ultra-slim and rugged profile. Whether you’re coordinating stewards at an event or managing workers in the field, the SL1600 is boldly designed to keep you efficiently connected. The latest technology works to make the operation of the SL1600 simple and straightforward. Ergonomic design allows one-handed radio operation, and a versatile accessory portfolio gives you the freedom to focus on the job at hand. The SL1600 is compatible with the MOTOTRBO features you’ll find are business-essential, for example, a transmission can be interrupted to prioritize critical communications. Additionally, the SL1600 supports both digital and analog radio technology to fit seamlessly into your existing communication system.
Specification
VHF
- Channel Capacity : 99
- Typical RF Output : 1W with Range Max technology
- Low Power Output Analogue : 2W with Range Max technology
- High Power Output Digital : 3W with Range Max technology
- Frequency : 136-174 MHz
- Dimensions (H x W xL) : 126 X 55 X 22 mm (4.95 X 2.17 x 0.87 in)
- Weight with Battery : 169g (5.96 oz)
- Power Supply : 3.7V (Nominal)
- Battery Life’ [Li-Ion (2300mAh) Battery] Analogue (hours) : 11.8
- Battery Life’ [Li-Ion (2300mAh) Battery] Digital (hours) : 14
- FCC Description : AZ489FT3835
- IC Description : 109U-89FT3835
UHF
- Channel Capacity : 99
- Typical RF Output : 1W with Range Max technology
- Low Power Output Analogue : 2W with Range Max technology
- High Power Output Digital : 3W with Range Max technology
- Frequency : 403-470 MHZ
- Dimensions (H x W xL) : 126 X 55 X 22 mm (4.95 X 2.17 x 0.87 in)
- Weight with Battery : 166g (5.84 oz)
- Power Supply : 3.7V (Nominal)
- Battery Life’ [Li-Ion (2300mAh) Battery] Analogue (hours) : 11.8
- Battery Life’ [Li-Ion (2300mAh) Battery] Digital (hours) : 14
- FCC Description : AZ489FT4922
- IC Description : 109U-89FT4922
MOTOTRBO SL2600
- Transmit Interrupt
- Unified Call List
- Enhanced Privacy
- Fixed Privacy Key Decryption
- Ignore Clear Signal
- Bluetooth Audio
- Bluetooth Data
- Indoor Location
- Emergency Search Tone
- Covert Mode
- Intelligent Audio
- Mute Mode
- Noise Suppressor
- Notification List
- Radio Service Menu
- Quick Text Messaging
- User-Selectable Audio Profiles
Specification
- Frequency : 403-480 MHz
- High Power Output’ (Digital)-VHF : 3 W
- High Power Output (Analogue)-VHF : 2 W
- High Power Output’ (Digital)-UHF : 3 W
- High Power Output (Analogue)-UHF : 2 W
- Low Power Output : 0.5, 1W
- Channel Spacing : 12.5, 25kHz
- Channel Capacity : 256
- Dimensions (H x W x D), Radio + Standard Battery : 125.7 x 55.0 x 22.7 mm
- Weight, Radio + Standard Battery : 190g
- Digital / Analogue Battery Life (Li-Ion (2300mAH) Battery) : 13.5 / 11 hrs
- Power Supply (Nominal) : 3.7 V
MOTOTRBO SL4000e SERIES
With this dynamic evolution of MOTOTRBO digital two-way radios, you’re smarter, better connected and more productive. The SL4000e Series is designed for the manager who needs complete control. With a slim and light form factor incorporating high-performance integrated voice and data, these next-generation radios deliver smart connectivity to your organization.
Specification
TRANSMITTER SPECIFICATIONS
- 4FSK Digital Modulation : 12.5 kHz Data:- 7K60F1D and 7K60FXD, 12.5 kHz Voice:- 7K60F1E and 7K60FXE, Combination of 12.5 kHz Voice and Data:- 7K60F1W
- Digital Protocol : ETSI TS 102 361-1, -2,-3
- Conducted/Radiated Emissions(TIA603D) : -36 dBm < 1GHz, -30 dBm > 1GHz
- Frequency Stability : ±1.5 ppm
RECEIVER SPECIFICATIONS
- Digital Sensitivity (5% BER) : 0.15 UV
- Conducted Spurious Emissions(T1A603D) : -57 dBm
AUDIO SPECIFICATIONS
- Digital Vocoder Type : AMBE+2TM
- Audio Response : TIA603D
- Rated Audio : 0.5 W
- Audio Distortion at Rated Audio : 3%
BLUETOOTH SPECIFICATIONS
- Version : 4.0
- Range : Class 2, 10 m
- Supported Profiles : Bluetooth Headset Profile (HSP), Serial Port Profile (SPP), Motorola fast push-to-talk.
- Simultaneous Connections : 1 x audio accessory and 1 x data device
- Permanent Discoverable Mode : Optional
Wi-Fi SPECIFICATIONS
- Standards Supported : IEEE 802.11b, 802.11g, 802.11n
- Security Protocol Supported : WPA, WPA-2 WEP
- Maximum Number of SSIDS : 128
ENVIRONMENTAL SPECIFICATIONS
- Operating Temperature3 : -20 °C to +60°C
- Storage Temperature3 : 30 °C to +70 °C
- Electrostatic Discharge : IEC 61000-4-2 Level 3
- Dust and Water Intrusion : IEC 60529 – IP54
- Salt Fog : 5% NaCl for 8 hrs at 35 C, 16 hrs standing
- Packaging Test : MIL-STD 8100 and E
Entel DX446E
Ultra compact, lightweight and dual-mode (Analogue and Digital), the rugged and fully-submersible DX400 Series radios deploy the latest DMR digital technology combined with Entel audio tailoring technology to ensure the best possible range and clarity.
Whether you need a basic entry level radio, advanced digital features, or something in between, the three DX400 Series models deliver smart solutions, helping you to increase productivity and to keep your business connected. Our digital radios are available in licensed and license free variants.
By combining innovative technology unique to Entel, with the globally accepted DMR standard and a robust IP68 submersible enclosure, Entel has produced the most exciting range of digital radios on the market today. Entel’s DX400 Series radios deliver a best-in-class performance, range and clarity.
Specification
- Channel Capacity : DX4x2/DX446E – 16 channels
DX4x5/x6/DX446L – 256 channels / 8 zones - Analogue Channel Spacing : 25KHz/12.5KHz
- Digital Channel Spacing : 12.5KHz
- Vocoder : AMBE+2
- Operating Voltage : 7.6V
- Battery : CNB420E 1350mAh Lithium-Ion
CNB450E 2000mAh Lithium-Ion - Weight (with battery) : 243g with CNB420E
267g with CNB450E - Overall Dimensions : 97mm x 59.5mm x 33mm (with CNB420E)
(HxWxD) 97mm x 59.5mm x 37mm (with CNB450E) - Frequency Stability : 1.5ppm
- Antenna Impedance : 50 ohm
- Operating Temperature : -20 to +55°C
- Dust and Liquid Intrusion : IP68 2 metres for 4 hours
- Drop Test : MIL-STD 810 C/D/E/F/G Standard
- Packing Test : MIL-STD 810 C/D/E/F/G Standard
- Vibration and Shock : MIL-STD 810 C/D/E/F/G Standard
- Approvals : Analogue mode RF EN 300 086 v2.1.2
Digital mode RF 300 113 v2.2.1
EMC EN 301 489-1 v2.2.0 &
EN301 489-5 v2.2.0
Safety (LVD) EN 60950:2006, A1, A11, A12 & A2
SAR EN 50566:2017, EN 62311:2008 &
EN 62209-2:2010 - Air Interface (DMR) : ETSI TS 102 361
