Access Control Readers in UAE

Features

  • World-class algorithm
  • High-Speed and Accurate Fingerprint Identification
  • Fingerprint, Pin, Card authentication

Specification

  • Fingerprint Capacity : 3000
  • Card capacity : 3000
  • Log Capacity : 1,50,000
  • Password capacity : 3000
  • Max. user : 3000
  • Communication : TCP/IP, USB
  • Push data : Yes (Optional)
  • FRR : 0.001%
  • FAR : 0.00001%
  • CPU : Industrial High Speed CPU
  • Sensor type : 500 DPI
  • LCD display : 2.4″ TFT color screen 320×240 pixel
  • Voice instruction : 16-bit Hi-Fi voice & sound indication
  • Language : English
  • Verification time : <=1 second
  • Power source : 5VDC/1A
  • Battery : Optional
  • Weight (kg) : 0.6
  • Operating temperature : 0°c – 45°c
  • Dimensions (mm) : 160 x 150 x 65
  • Software : Desktop, Web & Cloud
Access Control Readers Dubai

Features

  • World-class algorithm
  • High-Speed and Accurate Fingerprint Identification
  • Fingerprint, Pin, Card authentication

Specification

  • Fingerprint Capacity : 3000
  • Max. user : 3000
  • Log Capacity : 1,50,000
  • Password capacity : 3000
  • Card capacity : 3000
  • Communication : WIFI, TCP/IP, USB host
  • Push data : Yes
  • FRR : 0.001%
  • FAR : 0.00001%
  • CPU : Industrial High Speed CPU
  • RF card options : 125kHz EM (Standard) / 13.56MHz Mifare (Optional)
  • Sensor type : 500 DPI
  • LCD display : 2.4″ TFT color screen 320×240 pixel
  • Voice instruction : 16-bit Hi-Fi voice & sound indication
  • Wiegand in & out : Yes
  • Relay : Yes
  • Language : English
  • Verification time : <=1 second
  • Power source : 12VDC/2A
  • Built-in backup battery : Yes
  • Operating temperature : 0°c ~ 45°c
  • Dimensions (mm) : 160 x 150 x 65
  • Weight (kg) : 0.65
  • Software : Yes
Access Control Readers Abudhabi

Features

  • World-class algorithm
  • High-Speed and Accurate Identication
  • Face, Fingerprint, Pin, Card authentication
  • 2 output relay for door open.

Specification

  • Face Capacity : 1000
  • Finger Capacity : 3000
  • Card capacity : 1000
  • Log Capacity : 1,50,000
  • Password capacity : 1000
  • User : 1000
  • Communication : WiFi , TCP/IP, USB
  • Push Data : Yes (Optional)
  • FRR : 0.001%
  • FAR : 0.00001%
  • Sensor type : 500 DPI
  • LCD display : 2.8’’TFT color screen
  • Voice instruction : 16-bit Hi-Fi voice & sound indication
  • Operating temperature : 0°c ~ 45°c
  • Dimensions (mm) : 175 x 145 x 79.5mm
  • Wiegand in & out : Yes
  • Relay : Yes
  • Support Exit Reader : Wiegand Reader, Push Button, Remote, No Touch
  • Language : English
  • Verication time : <=1 second
  • Power source : 12VDC/2A
  • CPU : Industrial High Speed CPU
  • Built-in backup battery : Yes
  • Software : Desktop, Web, Cloud
Genuine Access Control Readers
    Features

  • High-Speed and Accurate Fingerprint Identification
  • Fingerprint, Card, Password authentication
  • Output relay for door open.
  • Good adaptation for dry, moist and rough fingerprints.
  • Supremely low Electric energy consumption.
  • Highly reliable and durable.
  • Comprehensive software development kit(SDK) is available for development and integration.

Specification

Storage Capacity

  • Finger Capacity 2000
  • Card Capacity 2000
  • Max User 2000
  • Password 2000
  • Log Capacity 1,50,000

Communication Interface

  • Communication – TCP/IP, USB

Biometric

  • FAR : 0.00001%
  • FRR : 0.001%
  • Sensor type : 500 DPI
  • Identification Mode : Fingerprint, Card, PIN

Access Control

  • Support : Remote, Push Button, No Touch
  • Relay : Yes

Power & Environment

  • Battery : Yes
  • Operating Temperature : 0°c ~ 50°c
  • Power : 12V DC / 2A
  • Dimension (L*H*W) : 160 x 140 x 65 mm

Audio/Visual

  • LCD : 2.4″ TFT color screen 320×240 pixel
  • Voice instruction : 16-bit Hi-Fi voice & sound indication
  • Language : English
Access Control Readers at best price in Dubai

Features

  • Industrial grade design, with stable performance & smooth line.
  • Detect 5 person at a time.
  • IP66 protection grade.
  • 8-inch IPS display all-sight LCD touch screen.
  • High end CPU – Dual core ARM cortex – A7 ea900MHz.
  • Detect human body temperature through face punch.
  • Recognition speed 0.5 seconds.

Specification

Functions

  • Face Capacity : 1,00,000
  • Max User : 1,00,000
  • Logs Capacity : 10,00,000
  • Accuracy : 99.27%
  • Living body detection : Support
  • Sensor : IR array Sensor
  • Stranger detection : Support
  • Recognition distance configuration : Support
  • UI interface configuration : Support
  • Remote update : Support
  • Deployment : Public network, LAN

Display

  • Display screen : 8-inch IPS all-sight LCD touch screen
  • Resolution : 800 * 1280

System parameters

  • Operating system : Linux
  • CPU : Dual-core ARM Cortex-a7@900MHz
  • Storage : 1GB RAM, 8GB ROM

Interfaces

  • Relay output : 1-way (DOOR_NO, DOOR_COM, DOOR_NC)
  • Network interface : 1-way Ethernet (RJ45, 100M)
  • TTL serial port : Embedded with our card plate
  • Wi-Fi : Standard: IEEE 802.11b/g/n
  • Wiegand Output : Yes
  • Reset interface : Reset button
  • USB interface : 1-way Type-A

General parameters

  • Power : DC 12V/2A
  • Device Working Temp. : -10°C~50°C
  • Environment for Temp. Measurement : 22°C ~ 32°C
  • Temp. Measurement Distance : 30cm~50cm
  • Temp. Measurement Range : 35.5°C~42°C (95.9°F~107.6°F)
  • Working humidity : 10%~90%
  • Power consumption : Running: Max. 15W
  • Dimension 300 * 130 * 90 mm
Access Control Readers

The V- AX 18 with its Dust Guard technology doesn’t allow dust to hindrance the verification process that keeps your records. While you no need to worry about the connectivity, just go with the conventional method via LAN or USB otherwise go wireless. V- AX 18 is new generation marvel with all these features packed inside a vertical body.

Specification

  • Fingerprint Capacity : 3000
  • Card Capacity : 3000
  • Log Capacity : 1,00,000
  • CPU : Industrial High Speed CPU
  • Comm. : TCP/IP, Rs485, USB Host & Client
  • Push Data : Yes
  • LCD : 2.8” Color Screen
  • Verification Speed < 1 Sec
  • Fingerprint Image Display : YES
  • Sensor : 500 Dpi Optical Sensor (Touch Active Sensor)
  • Memory : 512MB
  • FRR : 0.001%
  • FAR : 0.00001%
  • Temperature : -20°C ~ 50°C
  • Dimensions(WxHxD) : 83.9 x 204.9 x 31mm
  • SSR : Yes
  • Relay : 1 Relay Output for Access control
  • Door Switch, Door Sensor, Tamper Alarm
  • Self-defined Status : Yes
  • Wiegand input/output : Yes
  • Optional : Mifare Card, Battery
  • Power : DC 12V, 2Amp
  • Software : Desktop, Web, Cloud
  • Support Exit Reader : VR 12/Card Reader
Access Control Readers dubai

VR 12 takes you through the divine future of readers and launching trends that ripple through the industry with long lasting—effects. Gain a competitive advantage with our solution to the readers that allow the cutting-edge features your customers need.

Specification

  • CPU : 32-Bit High Speed CPU
  • Sensor : Advance Fingerprint Sensor
  • Communication : Rs485
  • Scan Area : 22m*18mm
  • Resolution : 500 DPI
  • Identification Mode : FP, Card
  • RFID Card : Standard EM, Optional Mifare
  • Sensor Wake Up Mode : Touch
  • Dimensions : 50x124x34.5mm
  • Temperature : -20°C ~ 50°C
  • Power : DC 12V, 1Amp

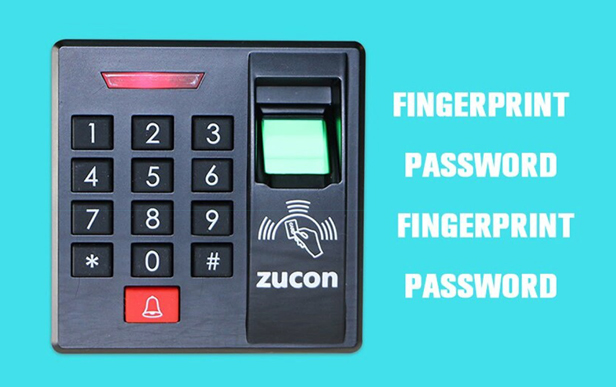

Access Control Readers in UAE

Features

  • Use fingerprint,swipe,press button,three ways to open the door
  • Easily capture fingerprints with a high-hard optical fingerprint
  • Suitable for office buildings,clubhouse,villa and so on.
  • This access control uses imported originals,CPU is more powerful,functions are more powerful, Sensitive,read quickly,long life
  • This access control uses a high-intensity sensor chip for fast reading

Specification

  • Quiescent Current : <=50mA
  • Work Voltage : 12V
  • Password Management : 6 numbers,No. #Password opening#open the door
  • Save Capacity : 1000 fingerprints or 1000 user card
  • Card reading distance : 2-5cm
  • Ways of identifying : Fingerprint, credit card,password
  • Support card type : ID Card(can choose IC card)
  • Appearance Size : 90*90*27mm
  • Opening time : 0-99 second (can adjust)
  • Work Environment : -10℃-70℃、0-90℃
  • Button Method : Press button
  • Material : Plastic
  • Wiegand Interface : Support Wiegand signal output / input
  • Reaction Time : <0.8 second
Fingerprint Access Control Readers

Specification

  • Sensor : Optical Sensor
  • Communication : RS 485
  • Optional Features Prox / Mithre I HID card reader
  • Voice Prompt : Buzzer
  • Working Voltage : 12V DC
  • Operating Temperature : 0°C – 45°C
  • Operating Humidity 20% – 80%
  • Dimension : 48 mm x 100 mm x 37 mm
Access Control Readers providers

Functions

  • 2.4-inch TFT color screen and Touch keys
  • Ultra thin and elegant design
  • Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm
  • Standard Wi-Fi
  • Network interface by TCP/IP or RS485
  • Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
  • Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices

Specification

  • Display : 2.4-inch TFT LCD Color Screen
  • Fingerprint Capacity : 3000
  • Card Capacity : 5000(Optional) ID or mifare card
  • Transaction Capacity : 30,000
  • Sensor : BioID Sensor/ SilkID Sensor (optional)
  • Communication : RS232/485, TCP/IP,
  • USB-host,Wi-Fi
  • Access Control Interface : 3rd Party Electric Lock,
  • Door Sensor, Exit Button, Alarm
  • Wiegand Signal : Input, Output
  • Aux. Input : lea for linkage function
  • Functions : DST, Automatic Status Switch,
  • Record query, T9 input, 14 digit user ID,
  • Anti-passback, Scheduled-Bell, Printer(Optional),
  • ADMS(Optional)
  • Power Supply : 12V DC,3A
  • Operating Temperature : 0 °C- 45 °C
  • Operating Humidity : 20%-80%
  • Dimension(LxWxH) : 158.5×78.0x19.4mm
Best Access Control Readers suppliers Abu Dhabi
    Access Control

  • Wiegand : In & Out both 26 or 34 bit (With or without site code)
  • Relay :12 V relay for lock EM lock, Bolt Lock or Strike lock
  • Support Fire Alarm : Yes / Door Sensor ; Yes
  • Anti Passback : Yes / Door Bell : Yes
  • Support exit reader : 101 HE FR 1200, Push Button
  • Battery : Yes / Card Readers : Yes
  • Communication : Wifi/GPRS
  • Sensor : Mifare/HID Prox/HID Iclass
    Compatibility

  • Compatible with Multi Door controllers via weigand
  • External Speaker output available (Optional)
  • External Bulb output available (Optional)
  • Support External Printer
    Compatible Software & SDK

  • Smart office suite desktop and web
  • Etitne track lite desktop & web
  • SDK for desktop applications
  • Web based Device Manager/ePush server using Push data. Helps developers & integrators
  • Supports 3rd Party Payroll/HRMS/ERP and Other applications

Specification

  • Fingerprint Templates 10,000
  • Card Capacity : 10,000
  • Transaction Storage : 2,00,000
  • Card Reader : Yes
  • CPU : 32 hit Microprocessor
  • Fingerprint Sensor : 500 DPI Optical sensor
  • (Optional Secugen STQC certified sensor)
  • FAR : <=0.0001% / FRR : <=1%
  • Identication Speed ; <1 sec
  • Algorithm \Ter : 10
  • Display : 3″ Color TFT
  • Keypad : 4 x 4 with 5 function Keys
  • Schedule Bell/Speaker : Mini Speaker
  • Communication : TCP/IP, USB,
  • ( Optional : GPRS, GPRS)
  • Push data : Inbuilt
  • Standard Features : work code,SMS,DLST,
  • Self service query, Status Switch
  • Power Supply : DC 12V: 3Amp
  • Operating Temprature 0°C to 45°C
  • Operating Humidity : 20% -80%
  • Dimension : 210 x 157 x 40mm
Top Quality Access Control Readers
    Access Control

  • Wiegand : In & Out both 26 or 34 bit (With or without site code)
  • Relay : 12 V relay for lock EM lock,
  • Bolt Lock or Strike lock
  • Support Fire Alarm: Yes / Door Sensor ; Yes
  • Anti Passback : Yes / Door Bell : Yes
  • Support exit reader : KR500,101 HE
  • Battery : No / Card Readers : Yes
  • Communication : No
  • Sensor : Mifare
    Compatibility

  • Compatible with Multi Door controllers via weigand
  • External Speaker output available (Optional)
  • External Bulb output available (Optional)
    Compatible Software & SDK

  • Etime track lite desktop & web
  • SDK for desktop applications
  • Web based Device Manager/ePush server using
  • Push data. Helps developers & integrators
  • Supports 3rd Party Payroll/HRMS/ERP and Other applications

Specification

  • Fingerprint Templates : 3000
  • Card Storage : 3000
  • Transaction Storage : 50,000 Logs
  • Card Reader : Yes
  • CPU : 400MHz
  • Fingerprint Sensor : 500 DPI Optical sensor (Optional Secugen STQC certified sensor)
  • FAR : <=0.0001% / FRR : <=1%
  • Identication Speed : <=1Sec
  • lgorithm Ver : 10
  • Display : 128 x 64 OIED with white Color
  • Keypad : 4 x 4 Keypad
  • Schedule Bell/Speaker : Mini Speaker
  • Communication : RS485 , TCP/IP , USB-host
  • Push data : NO
  • Standard Features : DLST
  • Power Supply : DC 12V: 1.5Amp
  • Operating Temprature : 0°C to 45°C
  • Operating Humidity : 20% -80%
  • Dimension: 90 x 190 x3.5 mm
Access Control Readers best in the UAE Market
    Features

  • Multi-languages
  • High verification speed
  • Advanced and user-friendly UI
  • Chip encryption for firmware protection
  • Optional built-in battery backup providing approximately 4 hours of continuous operation
  • Easy to extend functions and customize client’s requirements
  • One face template is registered for one user only
  • Able to detect whether the face is an actual face or a photo
  • enhancing the security level of verification

Specification

Storage Capacity

  • Face Capacity : 3,000
  • Fingerprints Capacity : 4,000
  • ID Card Capacity : 10,000
  • Transaction Capacity : 1,00,000
  • Push Data : Yes
  • Communication : TCP/IP, RS232/485,USB Host, WiFi, 3G
  • Display : 4.3-Inch Touch Screen

Standard Functions

  • Automatic Status Switch, Self-Service Query, Work Code, SMS, DST,T9 Input, 9 Digit User ID, Scheduled Bell,Photo ID AccessControl Interfaces for: 3rd PartyElectric Lock, Door Sensor, Exit Button, Alarm
  • Wiegand : Output

Optional Functions

  • MiFare Card, Wi-Fi, 3G
  • 2000 mAh Backup Battery, FR-1200

Power & Environment

  • Power Supply : 12V 3A
  • Operating Temperature : 0 °C ~ 45 °C
  • Operating Humidity : 20% – 80%
  • Dimension (in mm) : 193.6 x 165.2 x 86
  • Package Weight : 1.6 kg
fingerprint Access Control Readers
    Optional Features

  • Secugen Sensor / GPRS / Webserver / WiF1 / BatteryMifare / HID Prox / HID Iclass
    Software Features (eTimeTrackLite)

  • Desktop Attendance Management Software
  • Support MS Access / MS SQL Server / Oracle database
  • Parallel Logs download optional
  • 150+ Industry standard reports
  • Basic Canteen Management / Visitor Management /Payroll Software
  • Maintain OT Register / Leave Register
  • Schedule Multiple Shifts / Generate Analysis Graphs
  • Automatic Logs Download
    Software Features (eTimeTrack Web)

  • Support MS SQL Server / Oracle database
  • Parallel Logs download optional
  • 150+ Industry standard reports
  • Basic Payroll Software
  • Employee Self Service
  • Maintain OT Register / Leave Register
  • Schedule Multiple Shifts
  • Device Management

Specification

Special Features

  • Push Data Technology
  • Users: 3000 Fingerprints
  • Card Capacity: 3,000
  • Transactions: 1,00,000 Logs
  • Sensor: 500 DPI Optical Sensor
  • CPU: 800 MHz Processor- 32bit
  • Display: 2.8” TFT Color Screen
  • Inbuilt card reader
  • Identification Speed: <= 0.5 Sec
  • FAR: <= 0.0001%, FRR: <=1%
  • Communication: RS485, TCP/IP, USB
  • Power Supply: 12V DC, 1.5A
  • Operating Temperature: 0°C – 45°C
  • Operating Humidity: 20% – 90%
  • Dimension(W x H x D): 210 x 157 x 40 mm
  • Certified: ISO9001 : 2000, CE, FCC
  • Support Exit Reader- F12 (RS485), KR500
fingerprint Access Control Readers UAE

FC-391E/M Metal Access Control is designed for electric door locks and security systems, uses unique metal shell design, flexible keyboard operation, build in highgrade micro-processor and it has anti-interference ability, security and reliability are very high with function of self-diagnosis and self-protection, supports to unlock by card (including EM card, EM compatible card, EM format encryption card), password, card + password. It can set the programming on the keyboard, do not need computer, easy to operate.

Metal Access Control Keyboard self-locking function, user can set the keyboard input error times and preset the keyboard self locking time to prevent others detect the password. Tamperalarm function, remove the equipment in the working status, it will alarm output and sound. It has superior interference function and self-protection function, to ensure the system working safely and efficiently. Data maximum can store 110 groups (including card data, password data, card + password data), it can be kept if power cut and the access controller also supports doorbell output. FC-391 metal access control with powerful function, easy to install and it is suitable for offices, homes and public places.

Specification

  • Working Voltage: DC9-15V
  • Working Current: <150mA
  • Operation Temperature: -10℃-75℃
  • Reading Speed: <0.2s
  • User Capacity: 10,000
  • Exit Button: Support
  • Door Sensor Alarm: Support
  • Admin Card: Support
  • Data Backup: Support
  • Wireless Remote Controller: Support
  • Alarm Output: Support
  • Offline Use: Support
  • Issusing Device: Keyboard、Admin card
  • Size: 133.3×45×19.2mm
Buy Access Control Readers In Dubai

FC-393E/M metal access controller is designed for electric door locks and security systems, uses unique metal shell design, flexible keyboard operation, build in highgrade micro-processor and it has strong anti-interference ability, security and reliability with self diagnosis and self-protection, supports to be unlocked by card (including EM card, EM compatible card, EM format encryption card), password, card + password. It can be set the programming on the keyboard, do not need computer, easy to operate.

Keyboard self-locking function, users can set the keyboard input error times and preset the keyboard self locking time to prevent others from detecting the password. Tamperalarm function, remove the device out of the working status, it will alarm output. It has superior interference function and self-protection function, which can ensure the system working safely and efficiently. Data maximum is 110 groups (including card data, password data, card + password data), it can be kept if power be cut and the access controller also supports doorbell output. FC-393 metal access controller with powerful function, easy installation, it is suitable for offices, homes and public places.

Specification

  • Working Voltage: DC9-15V
  • Working Current: <150mA
  • Operation Temperature: -10℃-75℃
  • Reading Speed: <0.2s
  • User Capacity: 10,000
  • Exit Button: Support
  • Door Sensor Alarm: Support
  • Admin Card: Support
  • Data Backup: Support
  • Wireless Remote Controller: Support
  • Alarm Output: Support
  • Offline Use:Support
  • Issusing Device: Keyboard、Admin card
  • Size: 133.3×45×19.2mm
Access Control Readers Best in Abu Dhabi

FC-9088 Fingerprint Access Controller is uses the latest algorithm, with its classic European design, standard Wiegand protocol, can be used with any Wiegand access controller in the market. It supports unlock by ID card and fingerprint; supports USB data backup and recovery functions etc, suitable for government, military, banks, offices, computer room and various security places.

FC-9088 fingerprint access controller mainly manufacture for electric door locks and security systems, support 6 unlock way: Fingerprint、ID/Mifare card、exit button、password、 card+password unlock、wireless remote controller. Large memory can support 1,000 fingerprints or 1,000 ID card、password data, use high speed processor, card’s handle time less than 0.6S, super-fast handle speed.

FC-9088 fingerprint access controller have many models, support ID card、HID card、Mifare card etc, and it also support 1,000 data capacity (standard) or 21,000 data. Can used in large groups, offices, families, schools, dormitories, office buildings and other places.

Function

Fingerprint unlock, reading card unlock, password unlock, card + password unlock, wireless remote controller unlock, data backup, data recovery, multi doors data can be copied, anti detection unlock, issue serial number card, admin card to issue card, any card unlock + auto

Specification

  • Operating Voltage:DC9-15V
  • Operating Current:<120mA
  • Working Temperature:-10 ℃ -75 ℃
  • Humidity:10-90%
  • Card Speed:<0.2s
  • Tamper Alarm: Support
  • Wireless Remote Control: Support
  • Reading Distance:0-88mm
  • Control Output: Dry node relay output, max current is 5A
  • User Capacity:1000 /21000 group
  • External Wiegand: suppport one group wiegand
  • Remote Control: support 315MHZ wireless remote controller unlock
  • Issuing Device: Keyboard、admin card
  • Size: 142x82x24mm
Access Control System in Dubai, Abu dhabi

Rugged and powerful, the MorphoAccess® SIGMA Extreme is a remarkable addition to the SIGMA
Family of fingerprint readers.
Based on the same platform as other SIGMA devices, the outdoor MA SIGMA Extreme is specifically designed to operate in difficult environments (dust, salt mist, tough manual workplaces, etc.) and in harsh weather conditions.
With the entire SIGMA Family, integrators have a complete range of biometric terminals at their disposal, compatible with each other, to secure any kind of use case scenario – whether indoors or outdoors – with the World’s most accurate fingerprint technology

Specification

World #1 fingerprint technology

  • Morpho fingerprint technology ranked #1by NIST for accuracy
  • Extendable identification capacity: 1:5K(default), 1:10K, 1:50K or 1:100K users, with genuine matching(1)
  • 1:100K identification in less than 1 second (for frequent users)
  • Accuracy maintained regardless of number of users

Anti-fraud features

  • Patented, BSI(2) certified electro-optical Fake Finger Detection technology (option)
  • Face detection and picture logging
  • Duress finger option
  • Timed anti-pass back function(3)
  • Banned/authorized user lists
  • Tamper switches

Time & attendance functions

  • Touchscreen Time Clock, featuring 16 programmable function keys
  • Access time slots and holidays scheduling
  • Accurate clock in/out records (up to 1 Million logs storage capacity)
  • Real-time employee notifications
  • Job Code management

Videophone

  • Built-in camera, speaker and microphone
  • Standard IP-based audio/video interface
  • Use cases: Call-in function
  • employees can quicklyreport a problem right from the Time Clock
  • Surveillance: the terminal can be used by security staff to get pictures remotely from the security post

Embedded web server

  • After connection (via Ethernet or optional Wi-Fi) to a laptop, tablet or smartphone, it enables administrator to
  • Trigger on-device enrollment (enrollment on product touchscreen is also available)
  • Configure product (full settings)
  • Get transaction logs

Flexible architecture

  • Prox®, iClass® or MIFARE®/DESFire®/NFC(4)contactless card reader as an option
  • Various software integration options
  • ILV or Thrift commands at low protocol level
  • Morpho Integrator’s Kit (MIK) or SecureSDK at SDK component level
  • MorphoManager or SecureAdmin at application level

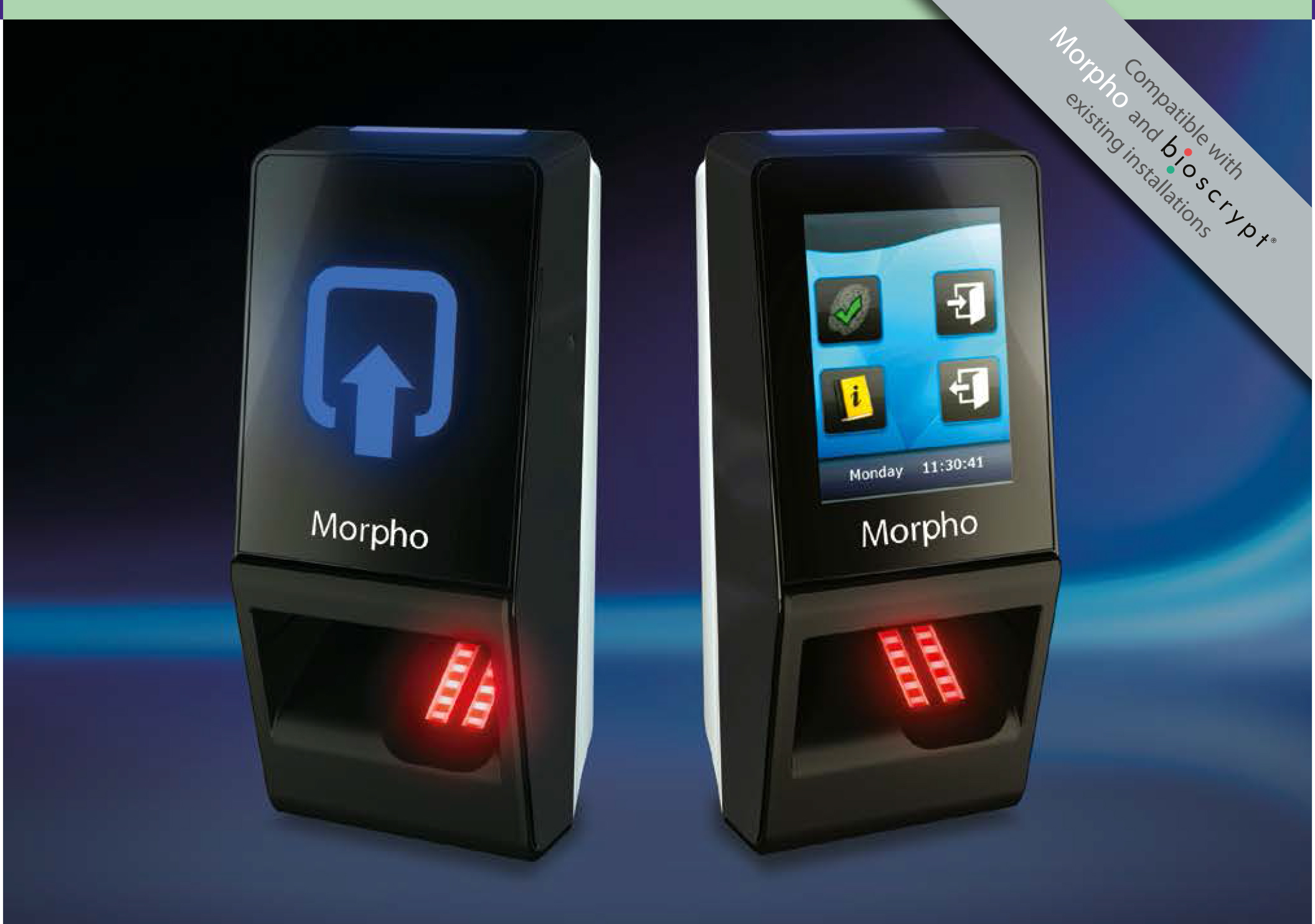

latest fingerprint technology

Engineered with the same attention to detail and performance as their predecessor, the MorphoAccess® SIGMA Lite terminals are specifically designed to equip narrow mounting surfaces, such as glass/aluminum door mullions, turnstiles, or server rack doors.

With two designs and multiple card reader options, there are a variety of models to address the widest range of deployment scenarios, both indoors and outdoors.

Specification

  • CPU: ARM® Cortex™-A9 core 1GHz
  • Linux Operating System
  • FBI PIV IQS certified optical fingerprint sensor
  • Contactless reader options: Prox®,iClass®, MIFARE®/MIFARE® Plus/DESFire®/NFC(1)
  • Network/Communication:
  • Ethernet, RS485, USB Wi-Fi option
  • Power supply:
  • 12V-24V DC
  • Power over Ethernet (PoE),compatible with PoE+ switches
  • Internal storage capacity: 512MB Flash, 512MB RAM
  • 500 user records, extendable to 3,000 or 10,000 with license(*3 templates each, including 1 duress)
  • 250,000 IDs in authorized user list
  • 1 Million transaction logs
  • Inputs/outputs: Wiegand In & Out(customizable up to 512 bits), Door Relay, 2 General Purpose Inputs(including Door monitoring), 2 General Purpose Outputs
  • Tamper switches
  • Operating conditions:
  • Temperature: -20°C to 55°C (-4°F to 131°F)
  • Humidity: 10% to 80% (non condensing)
  • Ingress protection: IP65
  • Mechanical impact protection: IK08(2)
  • HxWxD = 156*68*62 mm(6.14*2.68*2.44 inches)
  • Weight: 280 grams
  • EMC/Safety standards:
  • CE, CB, FCC, BIS
  • UL294 (for indoor use only)
  • RoHS, REACh and WEEE compliant
fingerprint Access Control Readers UAE

Awarded Best Biometric Product by the Security Industry Association, Morpho and Bioscrypt successfully joined forces to design the best of breed fingerprint identification terminal.
Tailored for both Access Control and Time & Attendance applications, the MorphoAccess® SIGMA (MA SIGMA) Series implements no fewer than 20 patents to master biometric identification and deliver a host of additional features, together with a refined and enjoyable user experience.

Specification

ULTRA-SECURE

  • The World’s most accurate fingerprint technology is further enhanced with additional anti-fraud and anti-”buddy punching” features:
  • Face detection and picture logging
  • Fake finger detection
  • Duress finger
  • Banned/authorized user lists

FRESH, INTUITIVE, FLEXIBLE USER INTERFACE

  • The MA SIGMA Series implements the design cues from today’s most intuitive consumer electronics, for fast user adoption
  • 5” WVGA color touchscreen highlighting a sophisticated Graphic User Interface
  • Seamless on-device administration
  • Extensive customization capabilities: use your own content! (corporate video, audio messages, wallpapers etc.)

TIME & ATTENDANCE READY

  • Increase your workforce management efficiency with:
  • Touchscreen Time Clock, featuring 16 programmable function keys
  • Access time slots and holidays scheduling
  • Accurate punch records (up to 1 Million logs storage capacity)
  • Real-time employee notifications
  • Job Code management

VIDEOPHONE FUNCTION

  • Built-in camera, speaker and microphone
  • Standard IP-based video and audio interface
  • Use cases:
  • Call-in function: employees can quickly report a problem right from the Time Clock
  • Surveillance: the terminal can be used by security staff to get pictures remotely from the security post
Access Control System

VisionPass is the newest addition to IDEMIA’s range of frictionless biometric access control devices, and the most powerful facial recognition device in the market. Elaborated in collaboration with partners and end-users, this robust and reliable device provides near-motion 1-second verification through multiple angles and in all light conditions, and is resistant to all kinds of spoofing attempts.

Specification

Unique performances

  • VisionPass combines a stateof-the-art optical set of 2D/3D/ infrared cameras with IDEMIA’s latest advances in AI and image processing, enabling a high level of security and real user convenience.

True security

  • VisionPass incorporates IDEMIA’s latest spoof detection mechanisms and is thus resistant to spoofing attempts. It copes with face changes (helmet, headset, change of haircut, glasses, etc.)

Easy deployment

  • VisionPass can be deployed at any location: indoor (wall or gate-mounted) or outdoor (IP65 rated). The device reuses many of the technology bricks used in other devices such as MorphoWaveTM Compact, thus simplifying its integration among a fleet of devices
Access Control System UAE

IBA-7612 is a vandal resistant proximity card and keypad access control unit suitable for external applications. The unit accepts up to users and provides entry via the use of proximity cards and/ or pin codes

Specification

Four Door Model

  • a four-digit password (can be set to 500 password)
  • the four-digit password + 4 digit password ,
  • the four-digit password + proximity card ,

Proximity card + proximity card Technologies Parameter

  • built-in non-contact reader, reading distance: 65mm
  • built-in PIN Pad, for personal four digit password ,
  • built-in doorbell control, built-in tamper alarm
  • Optional accessories (the doorbell with alarm auxiliary relay output)

Electrical Parameters

  • Input voltage: 12 ~ 18VDC
  • Input Current: 90 mA
  • Mechanical Dimensions:
  • Dimensions : 120mm × 76mm × 27mm
buy fingerprint Access Control Readers from UAE

COSEC PATH RDFX is a series of compact readers having advanced features like IP65 and compact design, which fulfils the access control requirements of organizations. It provides credential support for Fingerprint and RFID card.

    Key Features

  • Superior Design
  • Convenient Communication Options
  • Choose Credential as per Convenience
  • User Friendly Operation and Installation

Specification

  • Credential Support: Fingerprint and EM Proximity Card (125Khz)
  • Fingerprint Module Type :Optical
  • Fingerprint Templates: 9,600
  • LED Indication :Tri Color LED (Allowed, Denied/Alarm and Status)
  • Buzzer: Yes
  • Communication :RS-232
  • Input Power :Internal 12VDC @ 0.3A or through External Adaptor
  • Tamper Detection :Yes
  • IP65 (Waterproof) :Yes
  • Dimensions (WхHхD): 50 x 160 × 42mm (1.96”х 6.29”х 1.65”)
  • Weight: 0.225Kg (0.49Lbs)
  • Temperature 0 C to +50 C (32 0 F to 122 C F)
  • Humidity : 5% to 95% RH Non-Condensing
fingerprint Access Control Readers Dubai

COSEC VEGA FAX, a part of VEGA series, is specifically built for demanding enterprise to meet the functional needs of an organization’s employee time tracking system along with access control applications. The device offers unique advantages in terms of connectivity, technology, usage environment and ease of use. IP65, PoE, touchscreen and wireless connectivity offer foolproof Access Control and Time-Attendance solutions for Corporate Firms, Manufacturing Units, Government organizations and more. It has various interfaces like exit reader, exit switch, auxiliary input/output port, Ethernet and Wi-Fi.

Designed for long term uninterrupted performance with prudent blend of aesthetics, size, connectivity and reliability, the device is a perfect fit for biometric time clocking system. It’s built-in exit reader port to connect either fingerprint or card reader using RS-232 or Wiegand interface. COSEC VEGA FAX, an advanced door controller, has a 3.5’’ TFT display with capacitive touchscreen interface to put events, news/message and other information. It is capable of storing up to 9,600 fingerprint templates and 5,00,000 events. Its compact design with IP65 ratings is convenient for the demanding work environment of organizations.

Moreover, COSEC VEGA FAX is an open system allowing integration with third party hardware. Using auxiliary input and output ports, Fire Alarm system and Video Surveillance system can be connected without any need for external hardware modules. Motion sensors and relay devices can also be connected through these ports. With wireless connectivity options for employee time tracking software application and access control terminals, the solution delivers high level of flexibility to satisfy the most demanding enterprise needs of today.

Specification

  • Application: Access Control, Time-Attendance and Canteen Management
  • Credential Support :Fingerprint, RFID Card and PIN
  • Fingerprint Module Type: Optical (Suprema Make)
  • Fingerprint Templates :9600 (1:N mode), and 100,000 (1:1 mode)
  • Finger Templates Per User: 10
  • Fingerprint Verification :1:1 and 1:N
  • Card Type (CPM is Required) :Proximity (EM PROX) and Smart Card (Mifare/NFC and HID iCLASS)
  • Cards per User: 2
  • Events Buffer: 5,00,000
  • User Capacity :50,000
  • Display :3.5″ TFT Display with Touchscreen
  • Buzzer :Yes
  • Communication :Ethernet, Wi-Fi and Mobile Broadband (2G, 3G, GPRS)
  • Power over Ethernet (PoE): Yes
  • USB :1 Port (Data Transfer and Wireless Connectivity)
  • External Reader Types :1 Port for Card/ Finger/ Card+Finger/ UHF Reader
  • External Reader Interfaces: RS-232 and Wiegand
  • External Reader Power Output :Internal 12VDC @ 0.5A or External
  • Exit Switch Port :Yes
  • Auxiliary Input Port :Programmable NO, NC, Supervised
  • Auxiliary Output Port :Relay SPDT, Form C, 1A @ 30VDC
  • Door Status Sense :Programmable NO, NC, Supervised
  • Door Lock Relay Relay :SPDT, Form C, 1A@30VDC
  • Door Lock Power :Internal 12VDC@0.5A or External
  • Tamper Detection :Yes
  • CPU :1GHz Arm Cortex A8
  • Memory :256MB Flash and 512 MB DDR3 RAM
  • Input Power :12VDC@2A
  • Dimensions (WхHхD) :90 x 180× 37mm (3.5”х 7.0”х 1.4”)
  • Weight: 0.40Kg (0.88Lbs)
  • Environment :0 C to +50 C (32 F to 122 F), 5% to 95% RH Non-Condensing
  • IP65 :Yes
Access Control System

Suprema BioEntry W2 is a rugged fingerprint access control device featuring Suprema’s next generation bio metric technology and security platform. Bio Entry W2 provides class-leading performance and security by featuring Suprema’s latest fingerprint algorithm coupled by powerful quad-core CPU and LFD(live finger detection) technology. The device also provides added flexibility in system design by featuring multi card reading with dual-frequency RFID technology. Packed in a rugged IP67/IK08 housing with sleek metallic finish, Bio Entry W2 is a perfect access control solution for tough environment and outdoor installation

Specification

Improved Accuracy & Security

  • New advanced Live Finger Detection(LFD) technique
  • High-precision OP5 optical sensor

Multi RFID Card Reading

  • LF(125KHz), HF(13.56MHz) dual-band
  • Reads all card types that HID multiCLASS supports (EM/HID Prox/MIFARE/iCLASS/DESFire/FeliCa/NFC)

Expanded Capacity

  • Max. 500k users/1 million text logs
  • Large memory: 2GB Flash + 256 MB RAM

Rugged Structure

  • IK08 impact protection
  • IP67 ingress protection
  • Ideal for outdoor installatiON

Best-in-class Performance

  • Latest Suprema algorithm
  • 1.2GHz quad-core CPU
Access Control System in Dubai, Abu dhabi, UAE

Suprema BioLite N2 is a Suprema’s 2nd generation outdoor fingerprint terminal that provides comprehensive access control and time attendance features
ased on Suprema’s latest biometric technology and security platform. BioLite N2 provides class-leading performance and security by featuring Suprema’s
atest fingerprint algorithm coupled with world’s best fingerprint sensor. Packed in a rugged IP67 housing, BioLite N2 added flexibility in system design with multi-class RFID reading technology

Specification

  • Biometric:Fingerprint
  • Sensor Type:Optical Sensor (OP6)
  • Template:SUPREMA / ISO 19794-2 / ANSI 378
  • Extractor / Matcher:MINEX certified and compliant
  • RF Option:BLN2-ODB BLN2-OAB
  • CPU:1.2 GHz
  • Memory:8GB Flash + 64MB RAM
  • Max. User:10,000
  • Max. Template:20,000*
  • Max. Logs:1,000,000
  • LCD :1.77” color LCD
  • Sound:16-bit Hi-F
  • Ethernet:10/100 Mbps, auto MDI/MDI-X
  • RS-485:1ch Host or Slave (Selectable)
  • Wiegand:1ch Input or Output (Selectable)
  • TTL:2ch Input
  • Relay:1 Relay
  • Ingress Protection:IP67
  • Tamper:Supported
  • Power:DC 12V
  • Operating Temperature:-20°C ~ 50 °C
  • Operating Humidity:0% ~ 80%, non-condensing
  • Dimensions (WxHxD, mm):58 x 190 x 44
  • CertificatesCE, :FCC, KC, RoHS, REACH, WEEE
Biometric Access Control Readers to secure your things

BioStation 2 incorporates the latest Suprema technology in a beautiful exterior. It combines a new powerful processor, Suprema’s next generation optical sensor and improved fingerprint sensing & capturing algorithm to offer unrivaled performance. BioStation 2 provides users with instant authentication and rapid data transfer to manage high volume data with ease. It is ideal for applications that requires versatility without compromise in style and performance.

Specification

  • CPU:1.0GHz
  • Memory:128MB RAM + 8GB Flash
  • Fingerprint Sensor:Optical
  • Template Capacity:1,000,000 (1:1) , 40,000 (1:N)V
  • Max User:500,000 (1:1) , 20,000 (1:N)V
  • Log Capacity:3,000,000
  • Ingress Protection:IP65
  • PoE:Yes
  • Interfaces:TCP/IP, Wiegand, RS485, RS232, TTL I/O, Wi-Fi, Relay
  • Tamper:Yes
  • Sound:16-bit Hi-Fi
  • Operating Temp.:-20° to 50°C
  • Operating Voltage:12VDC
  • Dimensions (mm):142 x 144 x 45 mm (W x H x D)
  • Certications:CE, FCC, KC, RoHS
Access control security systems

Xpass is a smart IP based access control unit providing high-level security for small-to-medium sized systems to larger enterprise-level systems. Featuring next generation IP access control system structure, Xpass act as a smart reader and controller with distributed intelligence concept. With its RS485 and Wiegand interfaces, it can also fit in your legacy systems. Xpass is fully compatible with Suprema’s BioStar systems, offering extra flexibility of biometric IP access control systems to meet different needs and requirements.

Specification

TCP/IP & Network interfaces

  • IP enabled distributed access control system by ethernet (DHCP or static IP) and RS485 interfaces

Power over Ethernet (POE)

  • communication and power over a simple CAT5 or 6 cable/supplies up to 600mA of 12Vdc to locking devices

Enterprise-level access control capacity

  • controls up to 40,000 users, 128 time schedules,128 access groups and 64 zones

IP65 weatherproof structure

  • rugged structure for outdoor installation,operates between -20ū ~ 50ū

Easier installation & operation

  • direct lock relay and Wiegand connection/command card operation (add/delete users)

Sleek & aesthetic design

  • slim and sleek size for narrow door frames/multi-color LED & buzzer for indication
  • CPU: 400MHz DSP
  • Memory :8MB Flash + 16MB SDRAM
  • RF Card: 13.56MHz Mifare (XPM)
  • User Capacity: 40,000 users
  • Log Capacuty :50,000 log records
  • Communication Interfaces :TCP/IP, RS485
  • Wiegand Interface :Input or output (switchable)
  • I/O :2 x TTL inputs, 1 x relay, 1 x tamper
  • User Interfaces: Multi-color LED
  • IP Rate :IP65
  • Operating Temperature :-20ū ~ 50ū
  • Operating Voltage: 12V DC
  • Size :(W x H x D) 45 x 130 x 27mm
  • Certificates: CE, FCC, KCC, ROHS
Access control security systems Dubai

The WatchNET C Series access controllers consist of two different ranges (Access Control Panel, Standalone) which are interchangeable if required. Both can be used in a standalone or networked configuration mode, both ranges are compatible with the 3 Series Lift Controllers and Multi IO Controllers and both can be connected to a TCP/IP network.

Specification

Features

  • 32 bit processor with 4M bit data memory
  • Built‐in EM Proximity, Reader (Optional)
  • Blue backlight, TouchPad
  • Cards holder capacity: 30,000 events
  • Transactions storage: up to 15,000
  • Work Mode: Card / Card + PIN
  • OLED dual color display to indicate Clock, Company, Name, Card No
  • Communication: TCP/IP
  • Compatible with all Wiegand reader format from 24 to 72 Bits
  • Events Flow Control
  • Supports 500 Visitors
  • Including UDP Protocol
  • CE, FCC, RoHS approval

Technical Specifications

  • CPU :Texas Instrument ARM® Cortex‐M3
  • Lock Output: 1 Door Relay (NC/NO)
  • Door Sensor :1 Door Sensor (NO)
  • Request to Exit :1 Exit Button
  • Auxiliary Relay Output: 1 Auxiliary Output Relay
  • Auxiliary Inputs :2 Auxiliary Inputs
  • Card Reader Input: 1 Wiegand Reader Input
  • Communication: RS‐232/RS‐485 interface
  • Maximum number of
  • Controllers on RS 485: Up to 127 controllers per RS‐485 bus
  • Online Computer Polling :Supported
  • TCP Communication speed: 100M
  • Time Groups :15 Time Groups for 1 door
  • Maximum Card Capacity :30,000
  • Emergency Cards: 10
  • Transaction Storage: 15,000 events
  • Maximum read range :E: 150mm, H: 10mm; M: 50mm (2.00 in.)
  • Compatible Cards: E: EM Proximity card
  • Modulation: EM: 125KHz
  • Communication Speed: 10/100M
  • Operating Voltage: 12VDC (±10%)
  • Operating Current: ≤ 100mA
  • Standby Current :≤ 80mA
  • Working Temperature: ‐30°C to 65°C (‐22°F to 150°F)
  • Operating Humidity: 0 to 95%
  • Dimensions V117×86×22mm
  • Weight :290 g (0.63 lbs.
Access control security systems Abu dabi

Dual Technology Proximity Card Reader from WatchNET can read access cards with multiple frequencies and also can be installed using a single or double gang wall box. These readers are compatible with other electronic access control systems by complying with the Wiegand 26‐72 bit communication protocol.

The proximity reader is rugged, weather‐resistant and slim in design. Blue backlit LED assist operation in low or no light conditions.With the internal sounder, WAR‐EH0 provides superior accessibility.

    Features

  • Elegant & Smooth attractive design
  • Green connector or cable for wiring
  • Blue LED as normal
  • 1 LED with 2 colors and integral sounder for programming and operation
  • Multi technology / Dual card format reader

Specification

  • Modulation: ASK at 125 kHz
  • Maximum read range :100mm (6.00 in.)
  • Output: W26/34 Options
  • Operating Voltage: 7‐12VDC
  • Operating Current :100mA
  • Standby Current: 80VmA
  • Working Temperature ‐30°C to 65°C (‐22°F to 150°F)
  • Operating Humidity: 0 to 95%
  • Buzzer Control Input: Dry Contact, Normally Open
  • LED Control Input :Dry Contact, Normally Open
  • Dimensions :1.Narrow: 90mm L x 50mm W x 20mm D 2.North America: 115mm L x 70mm W x 25mm D 3.Europe: 115mm L x 95mm W x 25mm D
  • Weight :200 g
Access control security systems UAE

WAR Desktop Reader Series allows the WatchNET Access Control System to enroll cards with the use of a reader connected to the server using an RS232 Interface. This eliminates the use of manual entry of the card numbers. Card can be scanned and issued to the card holder when registration takes place. Desktop Readers are available in either EM or Mifare card reader formats.

Specification

WAR‐EMD‐232D (Desktop)Features

  • Range: 10‐20cm
  • Card: EM4100, TK4100, or compatible card
  • Output: RS232, 4 Bytes
  • Indicators LED: Dual color (Blue & Green)
  • Desktop Reader, Flexible
  • Cable: RS232 cable
  • Frequency: 125KHz
  • Operate voltage: 6‐15VDC

WAR‐S10‐232 (Desktop)Features

  • Range: 5‐10cm
  • Support Cards: Mifare‐1, S50 or compatible
  • Output: RS232, 4 Bytes
  • Indicators LED: Dual color (Blue & Green)
  • Desktop Reader, Flexible
  • Cable: RS232 cable
  • Frequency: 13.56MHz
  • Operate voltage: 6‐15VDC
Biometric Access control security systems

BioPro SA40 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliable, precise and excellent matching speed. BioPro SA40 features the fastest commercialbased fingerprint matching algorithm and ZK high-performance, highimage quality infrared detection fingerprint sensor.

BioPro SA40 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any thirdparty access control panel that supports standard wiegand signal. TCP/IP, RS232/485 and Wi-Fi are also available that the device can be used indifferent networks.

    Features

  • 2.4-inch TFT color screen and Touch keys
  • Ultra thin and elegant design
  • Full Access Control Features:Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm
  • Standard Wi-Fi
  • Network interface by TCP/IP or RS485
  • Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
  • Multiple Verification Modes: Multiverification methods (card is optional)providing user various choices

Specification

  • Display :2.4-inch TFT LCD Color Screen
  • Fingerprint Capacity :3,000
  • Card Capacity :5,000 (Optional) ID or Mifare card
  • Transaction Capacity :30,000
  • Sensor :BioID Sensor / SilkID Sensor (optional)
  • Algorithm Version : ZKFinger VX10.0
  • Communication :RS232/485, TCP/IP, USB-host, Wi-Fi
  • Access Control Interface : 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
  • Wiegand Signal :Input, Output
  • Aux. Input : 1ea for linkage function
  • Standard Functions :DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID,Anti-passback, Scheduled-Bell, ADMS</
  • Optional Functions :ID/Mifare card, Printer
  • Power Supply :12V DC, 3A
  • Operating Temperature :0 °C- 45 °C
  • Operating Humidity :20%-80%
  • Dimension :(LxWxH) 159.8 x 80.7 x 19.4mm
Access control Readers

CR20 Series are accessories designed to read (CR20E/M) & write(CR20M/W) proximity cards. They are connected to PC throughUSB Port (Plug & play). They allow high speed transactions and incorporate LED indicators. CR20M/W includes communication protocol for development and it’s compatible with S.O Windows 32 bits. CR20E and CR20M are compatible with windows S.O and read the same serial number as ZKTeco devices.

Specification

CR20E

  • Read Range : Up to 5cm
  • Power/Current : USB 5V DC / Max. 80mA
  • LED indicator : 2 Color LED Indicators (Red&Green)
  • Beeper : Yes
  • Operating Frequency : 125KHz
  • Operating temperature : -10º to +70º
  • Operating Humidity : 10% to 90% ( relative humidity non- considered)
  • Color : Black
  • Material : ABS+PC with texture
  • Operating system support : Emulation Keypad

CR20M/W

  • Read Range : Up to 3cm
  • Power/Current : USB 5V DC / Max. 102mA
  • LED indicator : 2 Color LED Indicators (Red&Green)
  • Beeper : Yes
  • Operating Frequency : 13.56MHz
  • Operating temperature : 0º to +70º
  • Operating Humidity : 10% to 90% ( relative humidity non- considered)
  • Color : Black
  • Material : ABS+PC with texture
  • Operating system support : Communication protocol available for development
best useful Access control Readers

FR1200, a fingerprint reader with RS485 communication interface works with biometric access controllers and fingerprint standalone access control, including inBIO series controllers, F8 and so on. It offers the function of capturing and transferring fingerprint samples to access control panel. With its IP65 rated rugged structure, FR1200 offers extra durability in all weather conditions including outdoor environments.

Specification

  • CPU :324MHz
  • Sensor :ZK small-sized sensor
  • Communication :RS485
  • Standard Function: ID Card Module
  • Optional Function: MF Card Module
  • Voice Prompt :Buzzer
  • Working Voltage: 12VDC
  • Working Temperature: 0°C ~ 45°C
  • Protection Grade :IP65
  • Size Height: 102mm Width: 50mm Depth: 37mm
Access control Readers for but at low price

iClock 680 is a biometric fingerprint reader for time & attendance and access control applications. It adopts a brand new firmware and provides an unprecedented user experiences with stunning GUI, rock-solid stability, fast matching speed and expandability.

Users can easily manage data by networking iClock680 via RS232/485, TCP/IP, and USB client. Most importantly, all the functions can still operate in a networking state. iClock680 is compatible with various types of USB flash disks, ADMS and former SDK. It also supports data backup and retrieve to avoid the risk of accidental deletion

The iClock680 has access control interfaces for retrieval, Wiegand-out, door lock connection,alarm,and bell

.

Specification

Remarkable User Experience

  • Intuitive and stunning UI designed with the most popular and internationalized factor.
  • Interface operation adopts modularized hierarchical design. Simpler, Better and More logical.
  • Faster matching speed: Less than 1 second.

Enhanced Features and Performance

  • User validity settings.
  • Data backup and retreival.
  • Advanced User ID consisting of letters and numbers.
  • Chip encryption for firmware protection.
  • More flexible menu configuration: double line text display.
  • External printer for attendance records output (Optional).
  • Optional integrated Wi-Fi\GPRS.
  • Relay contacts for alarm, bell, lock, exit, switch, etc.

Excellent Expandability

  • Easy to extend functions and customize customers demand. Access Control Interfaces
  • For Wiegand-in, Wiegand-out, door lock connection,alarm, and bell.
  • Fingerprint Capacity: 8000
  • ID Card Capacity :10,000 (Optional)
  • Record Capacity :200,000
  • Display: 3.5-inch Screen
  • Communication: RS232/485, TCP/IP, USB-host
  • Standard Functions: Workcode, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input, photo-ID, 9 digit user ID, and Anti-passback
  • Access Control Interface for: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Door Bell
  • Wiegand Signal: Input & Output
  • Optional Functions :ID/Mifare/HID, Webserver, Wi-Fi, 3G and GPRS
  • Software: ZKTime.Net 3.0
  • Power Supply :DC 12V 1.5A (DC12 3A with GPRS, 3G)
  • Verification Speed: ≤1 sec
  • Operating Temp.: 0°C – 45°C
  • Operating Humidity :20% – 80%
  • Dimension :205.6×150×41.6 mm (Length×Width×Thickness)
  • Gross Weight :1.40 kg
Access control Readers

iFace880 facial multi-biometric time & attendance and access control terminal supports up to 1,200 face templates, 2,000 fingerprint templates and 10,000 cards (optional).

With ZKTeco latest hardware platfrom and algorithm, it offers brand new UI and user-friendly operation interface to provide smooth user experience.

With advanced face algorithm and multi-biometric verification technology,the terminal’s security level of verification is significantly enhanced.

Specification

Features

  • 1,200 face and 2,000 fingerprint templates
  • Multi-language
  • High verification speed
  • Advanced and user-friendly UI
  • Optional built-in battery backup,providing approximately 4 hours of continuous operation
  • New Framework firmware, easy to extend functions and customize client’s requirements
  • One face template is registered for one user only
  • Able to detect whether the face is an actual face or a photo, enhancing the securitylevel of verification

Specifications

  • Display: 4.3-Inch Touch Screen
  • Face capacity: 1,200 (1:N)
  • Fingerprint capacity: 2,000
  • ID Card capacity: 10,000(optional)
  • Logs capacity: 100,000
  • Communication: TCP/IP, USB Host
  • Standard Functions: Automatic Status Switch, Self-Service Query, Work Code, SMS,DST, T9 Input, 9 Digit UserID, Scheduled Bell, Photo ID
  • Optional Functions: MiFare Card, 3G, Wi-Fi, ADMS, 2000 mAh Backup Battery
  • Power Supply: 12V 3A
  • Operating Temperature :0 °C- 45 °C
  • Operating Humidity :20%-80%
  • Dimensions( Length*Width*Thickness ): 193.6 × 165 × 111mm
  • Package Weight( KG ): 1.87
ZKTeco Access control Readers
  • Wiegand Card Readers
  • 125kHz EM or 13.56MHz IC card reader
  • Wiegand interface
  • Read range of up to 10cm for proximity card and 5cm for IC card
  • Waterproof IP64 or IP65

Specification

Read Range

  • KRxxx-E: Up to 10CM
  • KRxxx-M: Up to 5CM

Reading Time

  • ≤200ms

Input Port

  • External LED Control
  • External Buzzer Control

Output Format

  • KRxxx-E: 26bit Wiegand (Default)
  • KRxxx-M: 34bit Wiegand (Default)

Power/Current

  • DC 6-14V / Max.70mA

LED

  • Red and Green LEDs

Operating Temperature

  • -20°C to 65°C(-10° to +70°C)

Material

  • ABS+PC with texture

Operating Humidity

  • 10% to 90% relative humidity
  • non-condensing

Beeper

  • Yes

Index of Protection

  • KR500-E/M: IP65
  • KR501-E/M: IP65
  • KR502-E/M: IP64
  • KR503-E/M: IP65
Access Control System to buy
  • Wiegand Card Readers
  • 125kHz EM or 13.56MHz IC card reader
  • Wiegand interface
  • Read range of up to 10cm for proximity card and 5cm for IC card
  • Waterproof IP64 or IP65

Specification

Read Range

  • KRxxx-E: Up to 10CM
  • KRxxx-M: Up to 5CM

Reading Time

  • ≤300ms

Input Port

  • External LED Control
  • External Buzzer Control

Material

  • ABS+PC with texture

Output Format

  • KRxxx-E: 26bit Wiegand (Default)
  • KRxxx-M: 34bit Wiegand (Default)

Power/Current

  • DC 6-14V / Max.70mA

LED

  • Red and Green LEDs

Operating Temperature

  • -20°C to 65°C(-10° to +70°C)

Operating Humidity

  • 10% to 90% relative humidity
  • non-condensing

Beeper

  • Yes

Index of Protection

  • KR600-E/M: IP65
  • KR601-E/M: IP65
  • KR602-E/M: IP64
Access control Readers to buy

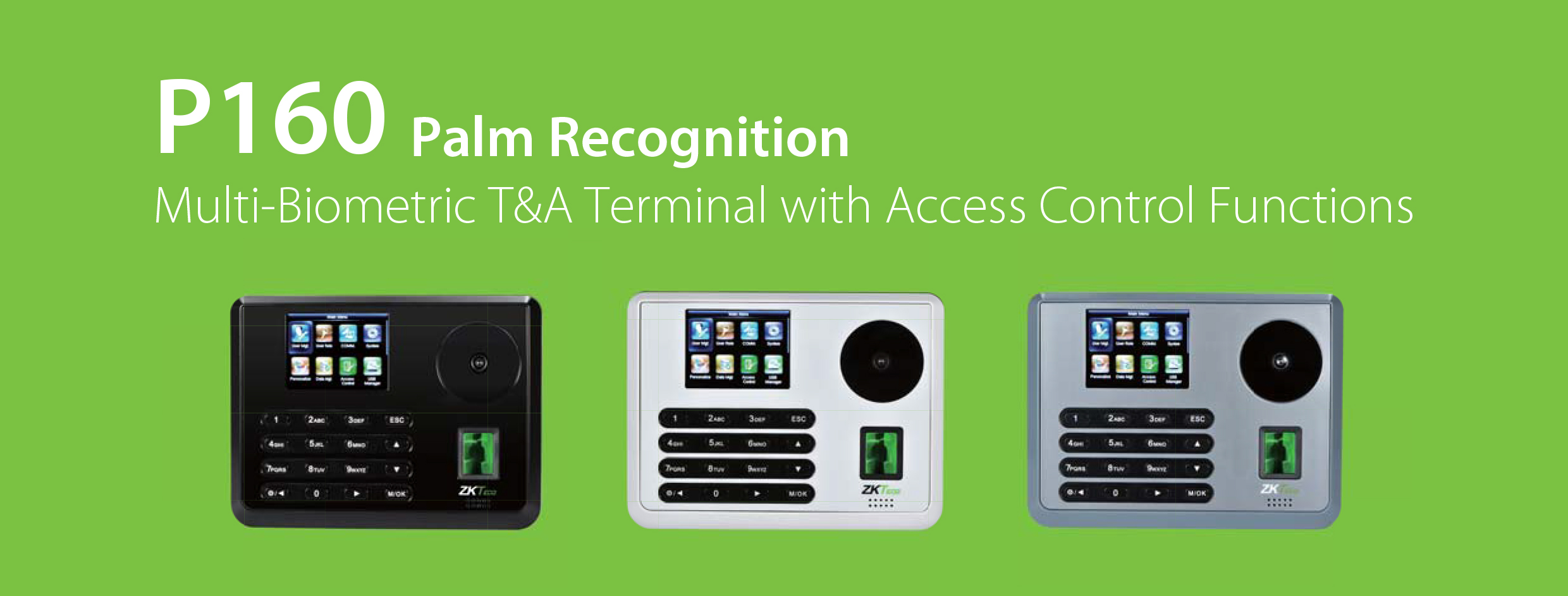

P160 is a multibiometric identification time & attendance and access control terminal, which can connect with third party electric lock, door sensor, and exit button etc.
With the latest palm/fingerprint identification algorithm and streamlined technology, it can hold 600 palm templates anc up to 20,000 fingerprint templates without cividing into groups.
Communicating via Wi-Fi , TCP/IP, and USB host, it ensures a smooth connection and data transfer. Amazing verification speed and intuitive operation process make it popular. Elaborately designed and finely processed, it matches your slap-up office perfectly.

    Features

  • 600 Palms, 3,000 Fingerprints, 10,000 ID cards and 100,000 records.
  • Elegant ergonomic design.
  • Verification speed less than 1 second.
  • Easy installation.
  • Professional ZKTeco Palm and fingerprints identification algorithm.
  • TCP/IP, USB-Host and Wi-Fi communication
  • POE module/ 3G module/ High (general)
  • level access control module/ Battery module/ Printer

Specification

Specifications

  • Display : 2.8-inch TFT Color Display
  • Palm Capacity : 600 (Standard)
  • Fingerprint Capacity : 3,000
  • ID Card Capacity : 10,000 (Optional)
  • Logs Capacity : 100,000
  • Communication : TCP/IP, USB-Host, Wi-Fi (Optional)
  • Standard Functions : Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User ID, DST, Scheduled-bell,SMS,RS232 Printer
    AC module 1:Exit Button, Door Lock, Alarm,12V OUT,AUX IN
  • Optional Function : ID Card, MIFARE Card
    AC module 2: Exit Button, Door Lock, Alarm,12V OUT AUX IN Door Sensor, RS485, Wiegand IN/OUT.
    POE, 3G, Battery Module, ADMS
  • Power Supply : 12V 1.5A
  • Verification Speed : 51 sec
  • Operating Temperature : 0 – 45 °C
  • Operating Humidity : 20% – 80%
  • Dimensions : 179.95 x 134.94 x 38.5 mm
Access control Readers to buy in UAE

SpeedFace-V5L Series is a fully upgraded version of the SpeedFace-V5L Visible Light Facial Recognition Terminal, using intelligent engineering facial recognition algorithms and the latest computer vision technology. It supports both facial and palm verification with large capacity and speedy recognition, as well as improves security performance in all aspects.
The Series adopts touchless recognition technology and new functions namely temperature detection and masked individual identification which eliminates hygiene concerns effectively. It is also equipped with ultimate antispoofing algorithm for facial recognition against almost all types of fake photos and videos attack. Importantly, the 3-in-1 palm recognition (Palm Shape, Palm Print and Palm Vein) is performed in 0.35 sec per hand; the palm data acquired will be compared with a maximum of 3,000 palm templates.
The terminal with temperature and mask detection will be a perfect choice to help reduce the spread of germs and help prevent infections straightly at each access point of any premises and public areas such as hospitals, factories, schools, commercial buildings, stations during the recent global public health issue with its fast and accurate body temperature measurement and masked individual identification functions during facial and palm verification.
Features

  • Letter hygiene with touchless biometric authentication
  • temperature detection and masked individual identification
  • Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
  • Card module with SpeedFace-V5L / SpeedFace-V5L[P]: 12.5 KHz EM card / 13.56MHz IC card (MF)
  • Multiple Verification Methods: Face / Palm / Fingerprint / Card / Password

Specification

  • Display 5-inch Touch Screen
  • Face Capacity 6,000
  • Palm Capacity / 3,000
  • Fingerprint Capacity 6,000 (Standard); 10,000 (Optional)
  • Card Capacity 10,000 /
  • Transactions 200,000
  • Operation System Linux
  • Standard Functions
  • ID Card, ADMS, T9 Input, DST, Camera, 9-digit User ID, Access
  • Levels, Groups, Holidays, Anti- passback, Record Query, Tamper, Switch Alarm, Multiple Verify Modes.
  • Except for ID Card, else functions is the same as the left.
  • Hardware 900MHz Dual Core CPU, Memory 512MB RAM / 8G Flash, 2MP WDR Low Light
  • Camera, Adjustable Light Brightness LED
  • Communication TCP/IP, WiFi (Optional), Wiegand input / output, RS485
  • Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
  • Optional Function 13.56MHz IC Card (MF) /
  • Facial Recognition Speed ≤1s
  • Biometrics Algorithms ZKFace V5.8 & ZKFinger V10.0 & ZKPalm V12.0
  • Power Supply 12V 3A
  • Operating Humidity 10% – 90%
  • Operating Temperature -10°C ~ 45°C (14°F ~ 113°F)
  • Dimensions (W*H*D) 91.93 * 202.93 * 21.5 (mm) 91.93 * 220 * 22.5 (mm)
  • Supported Softwares BioTime 8.5, ZKBioSecurity, ZKBioAccess
Access control Readers to secure your properties

TF1700 is one of the world’s smallest Ethernet connection-based fingerprint terminals, used for access control and time attendance features, with IP65 waterproof housing. With its IP65 rated rugged waterproof and dustproof structure, TF1700 offers extra durability in harsh conditions such as outdoor environments. It is specially designed for standalone applications such as house, office, shop, garage, factory and others. The 2013 version of TF1700 is equipped with a sensor cover to protect the optical reader and updated with new firmware that supports ZKAccess3.5 management software which has versatile features and powerful functions.

Specification

  • Fingerprint Sensor Infrared detection fingerprint sensor
  • Algorithm Version ZK Finger 10.0
  • Communication TCP/IP, RS485, USB Host
  • Fingerprint Capacity 3,000 Fingerprints(8,000 Optional)
  • Card Capacity 30,000 Cards
  • Log Capacity 100,000 Transactions
  • RF Card EM(standard)/Mifare(optional)
  • Authentication Finger/PIN/Card
  • Wiegand Signal Wiegand input&output
  • Ingress Protection Rate IP65
  • Display 128 x 64 OLED
  • Keypad 3 x 5 keypads & doorbell
  • Sound and Interface Buzzer and multi-color LED
  • Operating Voltage 12VDC 3A
  • Operating Temperature -10 °C~50 °C (14°F ~ 122°F)
  • Dimension 62.5mm×185mm×41.5mm (W×H×D)
Access control Readers

ZK9500, an latest optical fingerprint scanner,is developed by ZKTeco. It supports finger detection and captures fingerprint image fast,with high resolution. The product is small, easy to use fingerprint registration on the desktop. Low power consumption, it also applies to Android tablet and mobile phone. We provide SDKs for customers to develop their own applications

Specification

  • Model Name ZK9500
  • Material Optical
  • CPU 280MHz DSP
  • Flash 32 MB
  • SoC RTOS
  • Image Quality 2 million pixels CMOS
  • Encrypted Fingerprint Data YES
  • Sunlight Operation Must, dark field and automatic gain/exposure
  • Water Splash No damage and normal operation is ensured
  • Dry, Wet, or Rough Fingerprints Work well
  • Power Consumption 5V:200mA scanning;5V:60mA idle(waiting for finger)
  • Live Fingerprint Detection NO
  • LED Green
  • Product Certifications FBI(PIV), FCC, CE, RoHS
  • Power Voltage 5V
  • Power Current 200mA
  • Communication USB 2.0/USB1.1
  • Interface Socket USB Type A
  • Image Resolution 500dpi
  • Effective Collecting Area 15.24 * 20.32 mm (FAP20)
  • Collecting Area 16.5 * 23 mm
  • Image Size 300 * 400 pixel(FAP20 )
  • Dimension 75.5 * 53.2 * 19 mm (L*W*H)
  • Image Format RAW,BMP,JPG
  • Template ZKFinger V10.0
  • Gray Level 256
  • Operating Environment -20 °C ~ +50 °C; 90% r.h.
