Bharti Technologies Sole Proprietorship LLC, Abu Dhabi - 114299

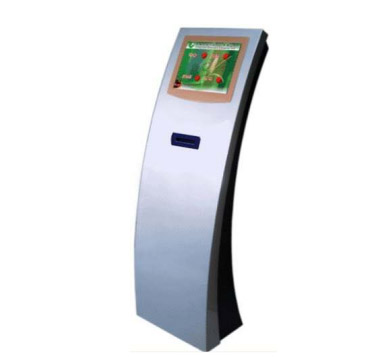

Floor Mount Kiosk - 17.3”
Menu Options (Number of Services)
-
Standard Mode
- Up to 16 options under
- Single Page Menu Up to 100+ options under
- Multi-Page Menu (up to 8 pages)
-
Advance Mode
- Up to 500+ options under
- Multi-Page Menu (up to 48 pages)
(Advance mode requires integration with Matrix Multi-Media Control System)
Specification
- Display : 17.3” LED – Touch
- Orientation : Standard Layout Landscape
- Housing : Painted Metal Body
- Body Color : Metallic Silver
- Token Printer : High Speed Thermal Printer
- Token Printing Width : From 37mm to 80 mm
- Token Printing Height : From 20mm to (Unlimited – depending upon the roll length)
- Built-in Sub-Control : Integrated with EaZy-Q Main Control System
- Control Board : EaZy-Q Integrated Board with High Speed Processor
- Memory : 320G Built-in
- Sound : Built-in Sound Amplifier & Mini-Speakers
- Maximum Dispensers per Location : 512
- Storage Temperature : -10˚ to 75˚C
- Storage Humidity : 5% to 9% (non-condensing)
- Operating Temperature : 5˚ to 50˚C
- Power Supply : AC-220 V

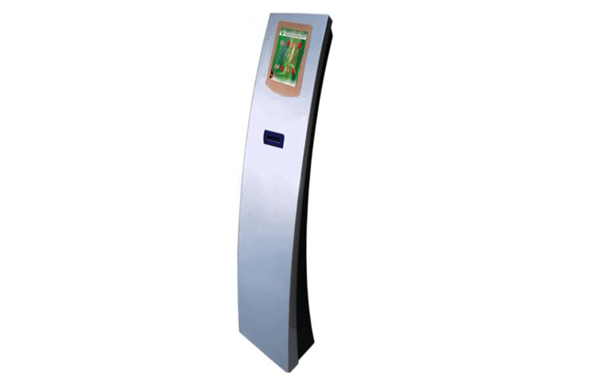

Floor Mount Kiosk-10
-
Optional Interface
- Card Reader (Smart / RFID / Mifare / Magnetic)
- Barcode Scanner (Linear / 2D)
- Fingerprint Reader
- Camera
- Intercom System
Specification
- Screen Size : 10” Touch Panel
- Orientation : Standard Layout -> Portrait
- Technology : 5 point Capacitive Touch
- PC Board : Built-in Motherboard i3/4GB/320GB
- Housing : Painted Metal Body
- Body Color : Metallic Silver
- Token Printer : High Speed Thermal Printer
- Token Printing Width : From 37mm to 80 mm
- Token Printing Height : From 20mm to Unlimited
- Built-in Sub-Control : Integrated with EaZy-Q Main Control System
- Built-in Communication Interface : Ethernet, Wi-Fi & USB
- Storage Temperature : -10˚ to 75˚C
- Storage Humidity : 5% to 9% (non-condensing)
- Operating Temperature : 5˚ to 45˚C
- Power Supply : AC-220 V

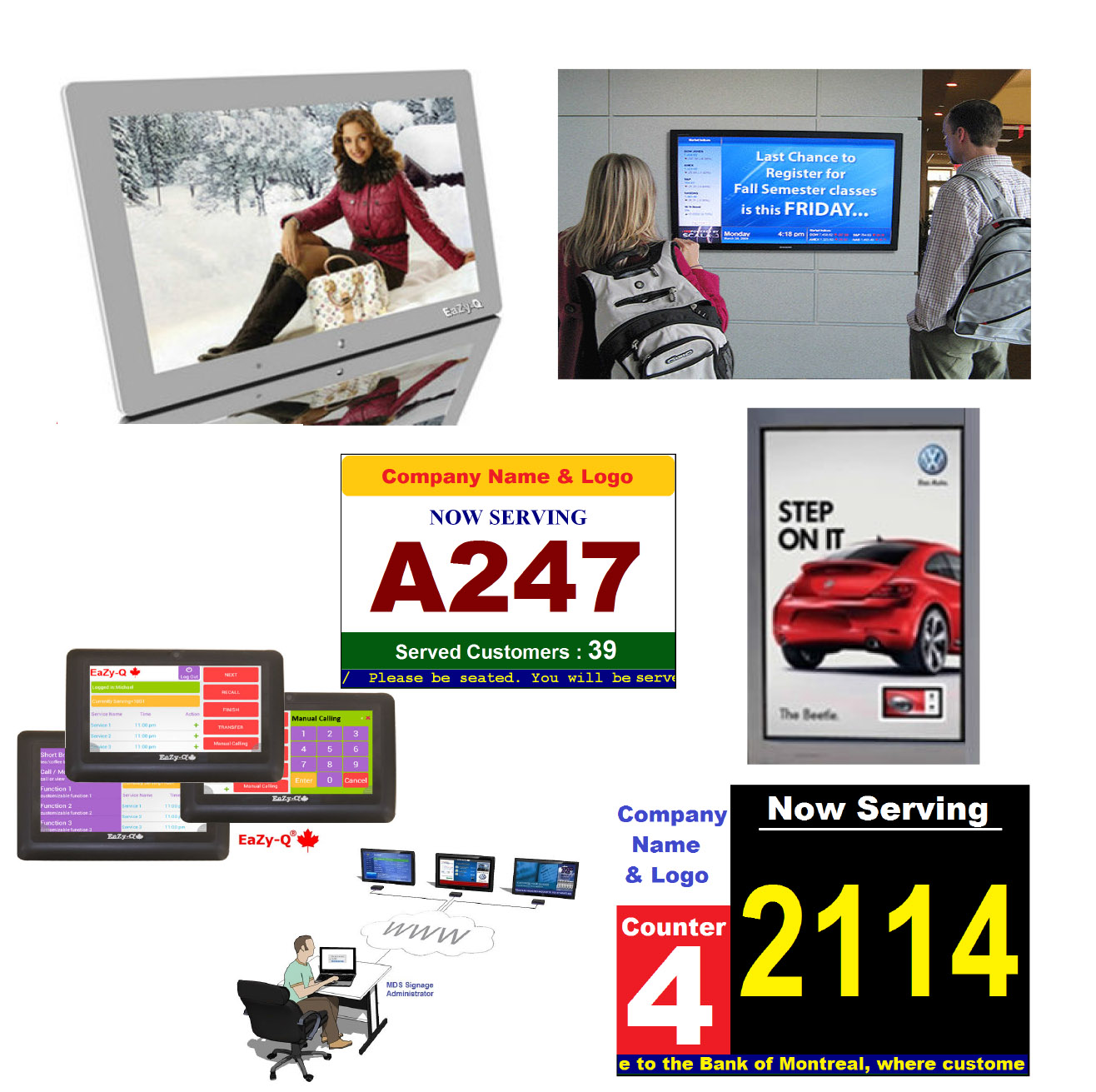

Smart LED Displays
-
Multi-Function Capability
- Counter Displays for Queue Management System
- Digital Signage / Promo Displays (Can Manage Multiple Playlists)
- Meeting Room Display (with Management of Multiple Schedules)
- Customer Information (General Guidance / Interactive)
- DID – Digital Information Display (Inside & Outside the Elevators)
- In-house & 3rd Party Promotions (Videos / Pictures / Messages)
- Live Dashboard (For Administrator / Operations Manager)
- Quick Instructions Displays (to Warehouse, Stores, Kitchen, etc.)
- EQ-LD10TE can also be used as Touchpad-Calling-Terminal and/or C.F.S.
Specification
- Display Type : IPS LED
- Effective Visible Angle : 170°/170°
- Max. Number of Units : Up to 65,536 under Single Control
- OS : Android (Standard) / Linux (Optional)
- Response Time : 50 to 100 Milliseconds
- Available Storage Memory : Standard 4GB (Upgradeable to 32GB)
- Audio : Built-in Stereo Speakers (with MP3 / WMA play option)
- Storage Temperature : -20˚C to 60˚C
- Storage Humidity : 20% to 85% (Relative)
- Power Supply : 12V DC 2 AMP
- Life Span : 60,000 to 80,000 Hours

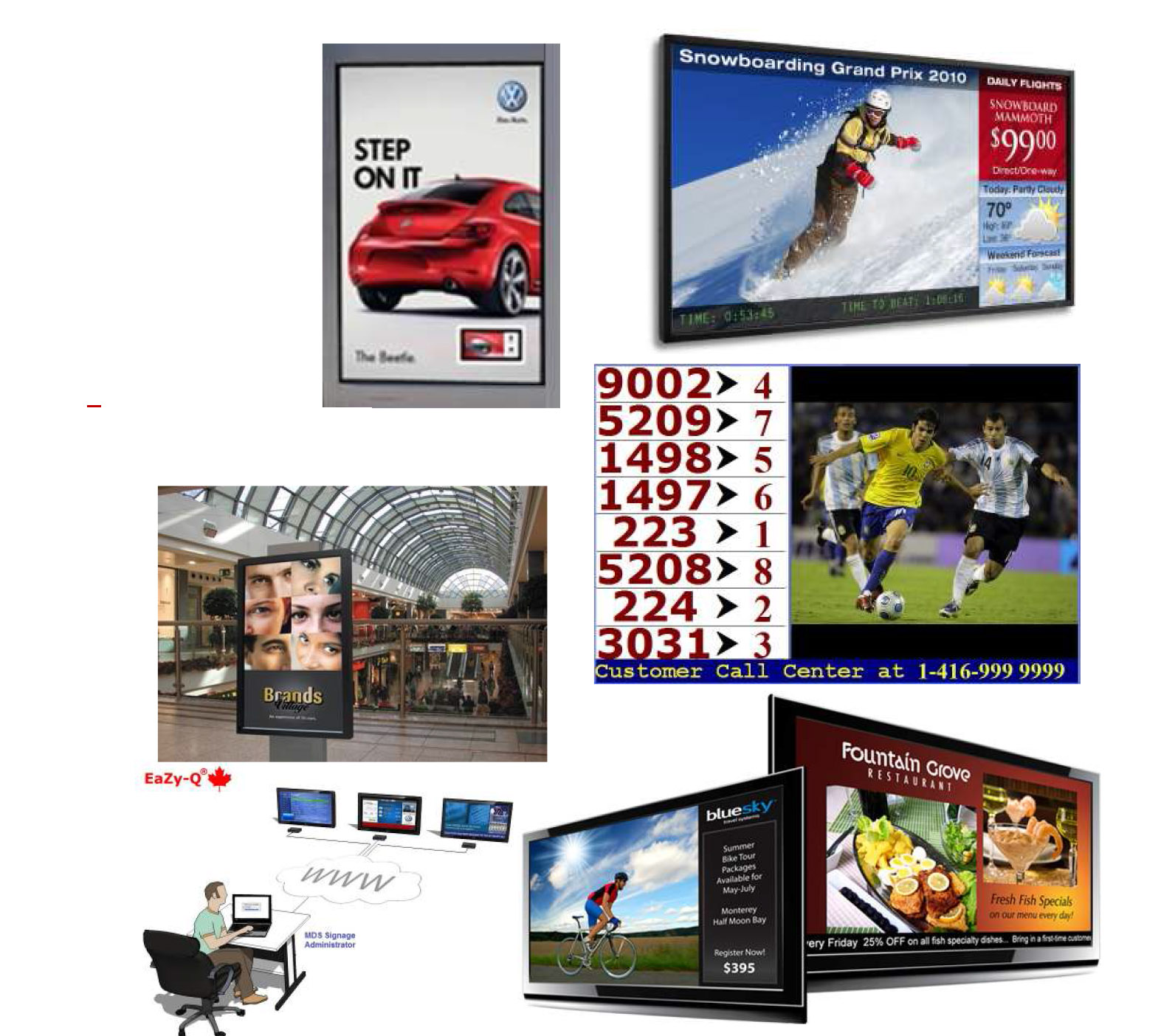

Smart Media Players
-
Multi-Function Capability
- As Main Display for Queue Management System
- Multimedia Player (Can Manage Single or Multiple Playlists)
- Customer Information (General / Interactive)
- Notice Board & Event Management (at Main Entrance / Hotel Lobby)
- Corporate Messaging (Floors / Area Wise)
- In-house & 3rd Party Promotions (Videos / Pictures / Messages)
- Live Dashboard (For Administrator / Operations Manager)
- Quick Instructions Display (to Warehouse, Stores, etc.)
Specification
EQ-BD06
- Processor : Dual-Core
- RAM : 512 MB
- Built-in Memory : 4 GB
- Maximum Built-in Memory Capacity : Up to 32 GB
- External HDD Support : Up to 2 TB HDD via External USB Port
- Max. Number of Units : Up to 65,536 under Single Control
- Display Proportion : 16:9 / 4:3 (User Definable)
- Graphic Display : High Definition
- Video Streaming Support : At Low Definition
- Storage Temperature : -20˚C to 60˚C
- Operating Temperature : 5˚C to 45˚C
- Power Supply : 5V DC 1Amp
EQ-BD06A
- Processor : Quad-Core
- RAM : 1 GB
- Built-in Memory : 8 GB
- Maximum Built-in Memory Capacity : Up to 64 GB
- External HDD Support : Up to 2 TB HDD via External USB Port
- Max. Number of Units : Up to 65,536 under Single Control
- Display Proportion : 16:9 / 4:3 (User Definable)
- Graphic Display : High Definition
- Video Streaming Support : At High-Definition
- Storage Temperature : -20˚C to 60˚C
- Operating Temperature : 5˚C to 45˚C
- Power Supply : 5V DC 1Amp
EQ-BD07A
- Processor : Octa-Core
- RAM : 1 GB
- Built-in Memory : 8 GB
- Maximum Built-in Memory Capacity : Up to 128 GB
- External HDD Support : Up to 2 TB HDD via External USB Port
- Max. Number of Units : Up to 65,536 under Single Control
- Display Proportion : 16:9 / 4:3 (User Definable)
- Graphic Display : Ultra HD – 4K
- Video Streaming Support : At High-Definition
- Storage Temperature : -20˚C to 60˚C
- Operating Temperature : 5˚C to 45˚C
- Power Supply : 5V DC 1Amp
Smart TOKEN DISPENSER
-
Multi-Function Capability
- Independent Token Dispenser (Direct Token Issuance Only)
- Main Control System (Queue Server) + Standard Token Dispenser
- Master Token Dispenser (Integrated with the Queue Server)
- Slave Token Dispenser (Integrated with the Queue Server)
- Queue Token Dispenser + C.F.S. (Customer Feedback System)
- Queue Token Dispenser + C.I.S. (Customer Information System)
- C.I.F.S. (Customer Information & Feedback System)
- Online Booking Management (Queue-Booking)
- Queue Token Booking Retrieval System
- Meeting Rooms Management (Check Availability & Booking)
- Conference Rooms / Classrooms Booking Management
Specification
- Max. Number of Units : Up to 65,536 under Single Control
- Communication Ports : Ethernet (Wi-Fi = Optional)
- Supported Languages : English, French, German, Italian, Spanish, Arabic, Portuguese, Dutch and more
- Storage Temperature : -20˚C to 60˚C
- Storage Humidity : 20% to 85% (Relative)
- Operating Temperature : 5˚C to 45˚C (Ideal Temp. = Between 15˚C to 35˚C)
- Power Supply : 24V DC 2 AMP
- Life Span : 40,000 to 50,000 Hours

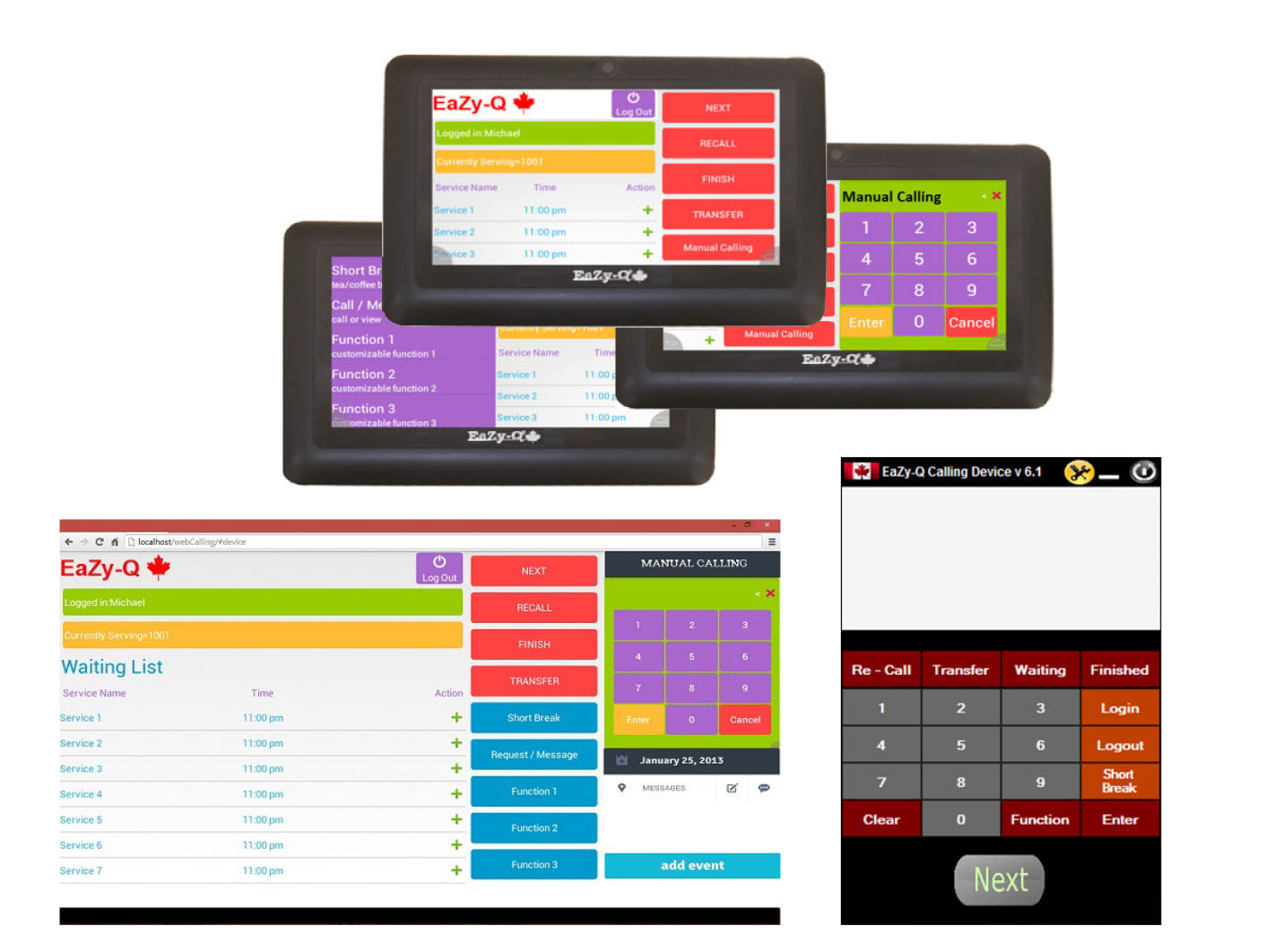

Teller Station Units
-
Features
- User Login & Logout
- Next & Re-Call
- Manual-Call (Out of Sequence – with Pre-Authorization Control)
- Finished / Served (with Auto-Finish upon Next, Short-Break and / or Logout)
- Advance Transfer Features ( Auto & Manual with Single / Multiple Transfers)
- Put Token on HOLD (with Reason) and / or Delay Token for Specified Duration
- Cancel and Re-Activate Tokens
- Short Break Facility (User-Definable)
- Waiting Customers Inquiry (Overall / Service Category Wise)
- Call Manager for Support
- Calling Office Boy / Request Coffee / Water / Tea, etc. (User-Definable)
- Send Pre-Defined Messages to Other Calling Devices
- Assisted Token Issuance (Direct Command to Dispensers for Issuing Tokens)
- Multiple Counters and / or Rooms Management using Single-Calling Terminal
