Electronic alarm systems are made up of three component parts designed to detect, determine and deter criminal activity or other threatening situations. An alarm system can detect an event such as an invasion, fire, gas leak or environmental changes; determine if the event poses a threat; and then send a notification about the event.
A range of burglar alarm passive infra reds PIRs and other detectors for your burglar alarm system from Texecom, Pyronix, Scantronic and Honeywell ADE. Burglar alarm passive infra red PIR detectors are an important part of any burglar alarm system. The correct PIR detector should be chosen with care to get the best out of your burglar alarm system.
Highly Reliable Photoelectric Detector
ABT series dual-beam photoelectric detector with “4-channel selectable frequencies” avoid unwanted crosstalk that can occur when using multiple photobeam over long distances or for beam stacking applications
Anti-white light lens design
Strong sun-light will impact performance of photoelectric detector, since it can interfer IR reception. Beside using anti – UV plastic cover , photoelectric receiver adopts dual lens with anti-white light coat to effectively filter white light, which in turn, provide you 99% reliable detection.
Extremely durable Infrared sources
Utilizing high power military grade Infrared emitting diode to ensure transmission range and stability of sensor, it has much longer lifespan than conventional IR LEDs in market.
Easy & fast installation with LED display
Offering easy and fast installation, because it has unique LED segment display can show signal level by using digital number, greatly help installers to align receiver and transmitter easily, 0-4 means weak, 5-6 low, 7-8 good, 9 best.
High grade spherical lens
The high grade spherical lens creates more sharply defined & precise infrared beams compared to ordinary fresnel lenses.
Easy angle adjustment
It allows the installer to finely adjust the beam easily.
[ Horizontally ±90° with hand ]
[ Vertically ±5° with screwdriver ]
A.G.C. (Automatic Gain Control) Circuit
A.G.C. circuit continually monitors for gradual changes in the signal’s strength caused by changing weather conditions. It adjusts the sensitivity accordingly to maintain the proper signal level for the current environmental conditions.
Digital signal processing unit
The circuit design includes a digital processing unit (MCU) to process digital signal, it can provide higher accurate detection and reliability than conventional photoelectric detectors which usually adopt simple logic circuit design.
Heater connection ready design
New generation ABT series photoelectric beam added support of smart heating control, users can
easily connect a heater to detector, by using heater the detector can effectively de-frost and enable it work under extreme cold weather conditions.
4CH selectable frequencies
ABT series photoelectric detector adopts industryleading selectable frequencies technology, has
completely solved crosstalk interference under stacking or long distance other sophisitcated installation conditions.
Enhanced detection security for high-risk applications

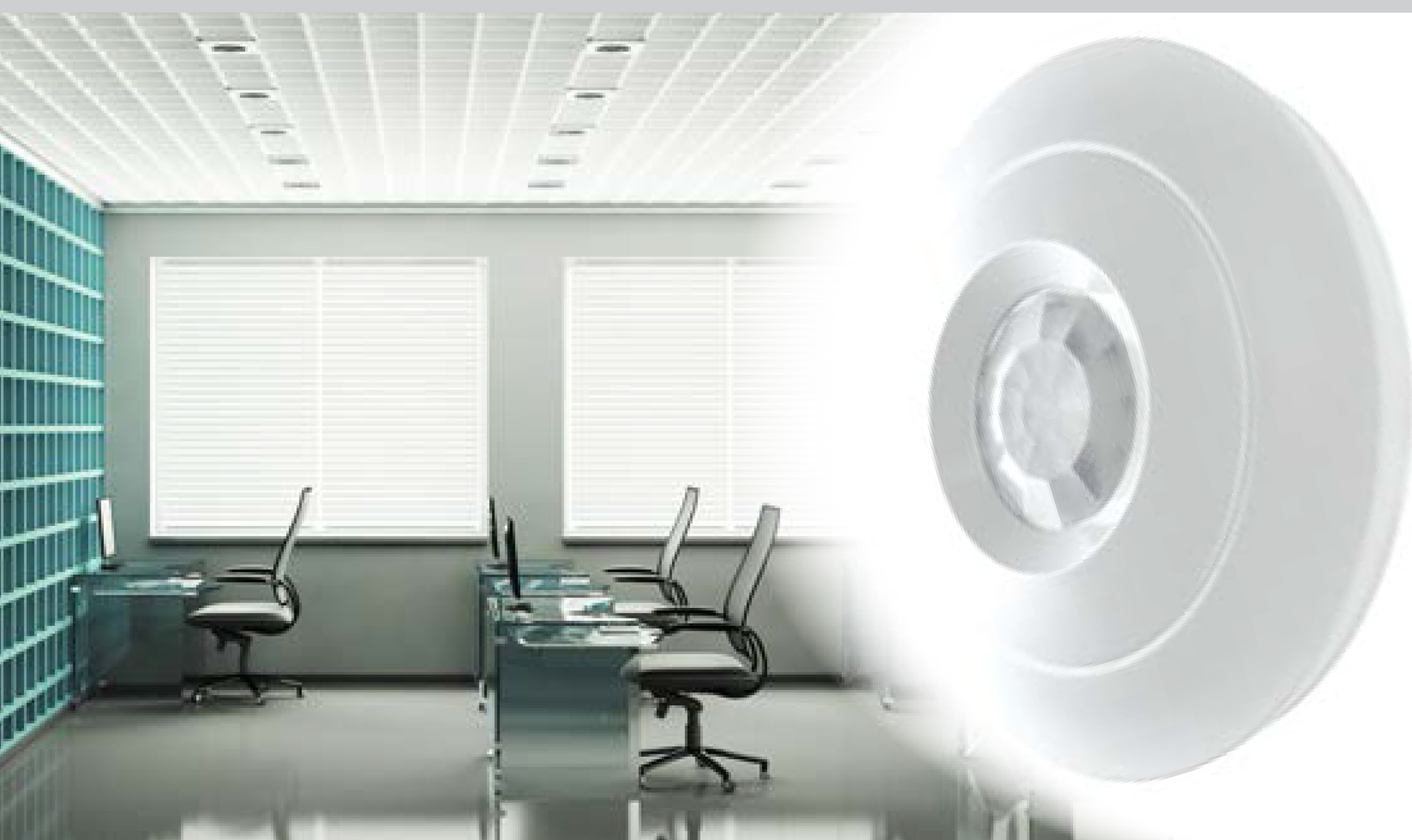

High-risk applications require high performance solutions. The Premier Elite AM 360DT offers Grade 3 dual technology ceiling mount detection for reliable catch performance, together with active IR anti-masking to protect against sabotage.
Active IR Anti-Masking
The Premier Elite AM 360DT utilises Texecom’s optically enhanced Active IR technique, the most secure and reliable anti-masking technology on the market. The Active IR LED power output provides 100% lens coverage protection and, when combined with Texecom’s proprietary digital signal processing algorithms, delivers exceptional anti-masking pick-up whilst actively discriminating against false masking sources.
Outstanding features include:
Inspired by a design philosophy of contemporary styling combined with the most innovative advanced detection performance, the Premier Elite AM Series is intended for those who require the very best. The result is a series of Grade 3 motion detectors that surpass EN 50131 Grade 3 security system requirements. With unrivalled detection technologies, Active IR Anti Masking, Local Self Test, Remote Self Test, Triple End-Of-Line (T-EOL) Signalling and Remote LED Disable, the Premier Elite AM Series strengthens Texecom’s reputation for providing world-class detector performance.
Key Features
AQUA Ring is a digital passive infrared detector in oval enclosure, designed for ceiling mounting. It is ideally suited for use in locations where wall mounting is difficult or just impossible, for example, in rooms with fully glazed walls or showcases. It can also be used in spacious premises, because its design allows protection of a large area. AQUA Ring is provided with a dual element PIR sensor and digital motion detection algorithm. Owing to the two–track analysis of the signal from the PIR sensor (valuable and quantitative) and the temperature compensation feature, the device is characterized by high sensitivity and interference immunity. Three–step sensitivity control makes it possible to adjust the device performance to requirements of the user and the protected premises. The detector has a built–in pre–alarm feature and tamper switch to protect it against opening the enclosure. The device meets the EN–50131 requirements for Grade 2.
The main task of the detector is to detect violations in the protected area. However, it can also be used to implement the building automation functions. When the alarm system is not armed, the detector can control turning on the lights, opening or closing the doors, etc.
Magnetic detectors are basic elements of a perimeter protection system. Medium–size B–4M tight side magnetic detectors in a metal housing are designed for surface mounting. The metal screen protects the wiring against damage, which makes these detectors a perfect solution for locations particularly vulnerable to sabotage attempts or mechanical exposure.
These detectors are screwed to a surface and provide an ideal solution for garage gate installation.
Magnetic detectors are basic elements of a perimeter protection system. Small B–4S tight side magnetic detectors in a metal housing are designed for surface mounting. The metal screen protects the wiring against damage, which makes these detectors a perfect solution for locations particularly vulnerable to sabotage attempts or mechanical exposure.
These detectors are screwed to a surface and provide an ideal solution for garage gate installation.
Product Codes
PSTN TELEPHONE COMMUNICATOR
PSTN communicator for intruder panels not equipped with on–board dialers
The Orion series includes passiveinfrared sensors suitable for the most demanding of residential andcommercial installations. Highly reliable, the Orion offers excellent protection and is easy to install.
Features
Orion EL-55
Orion EL-65
Orion EL-75
WATER FLOOD DETECTOR
The FD–1 water flood detector is provided with a probe on 3 m long wire. The wire can be shortened, as required, to make installation easier and mounting location more suitable for the user needs. The flooding alarm is triggered when the probe electrode comes into contact with water. The detector is also provided with a LED to indicate alarm, as well as with tamper protection against opening the enclosure or tearing off.
FD–1 is designed for installation in bathrooms, kitchens, laundries (at dishwasher, washing machine, etc.), basements and other areas with water installations. It is also an ideal solution to protect rooms with aquarium tank, water bed, etc.
The detector is available in two color versions: white FD–1 and brown FD–1 BR.
• Detection of water flood in the areas with water installations
• Easy to install external sensor
FM-106
FM-107B
Versatile in application. The low-profile design makes it easy to install. Predefined settings allow to be quickly set for all common applications. Optional SensTool software enables modification of default operating parameters and monitoring of current detector performance.

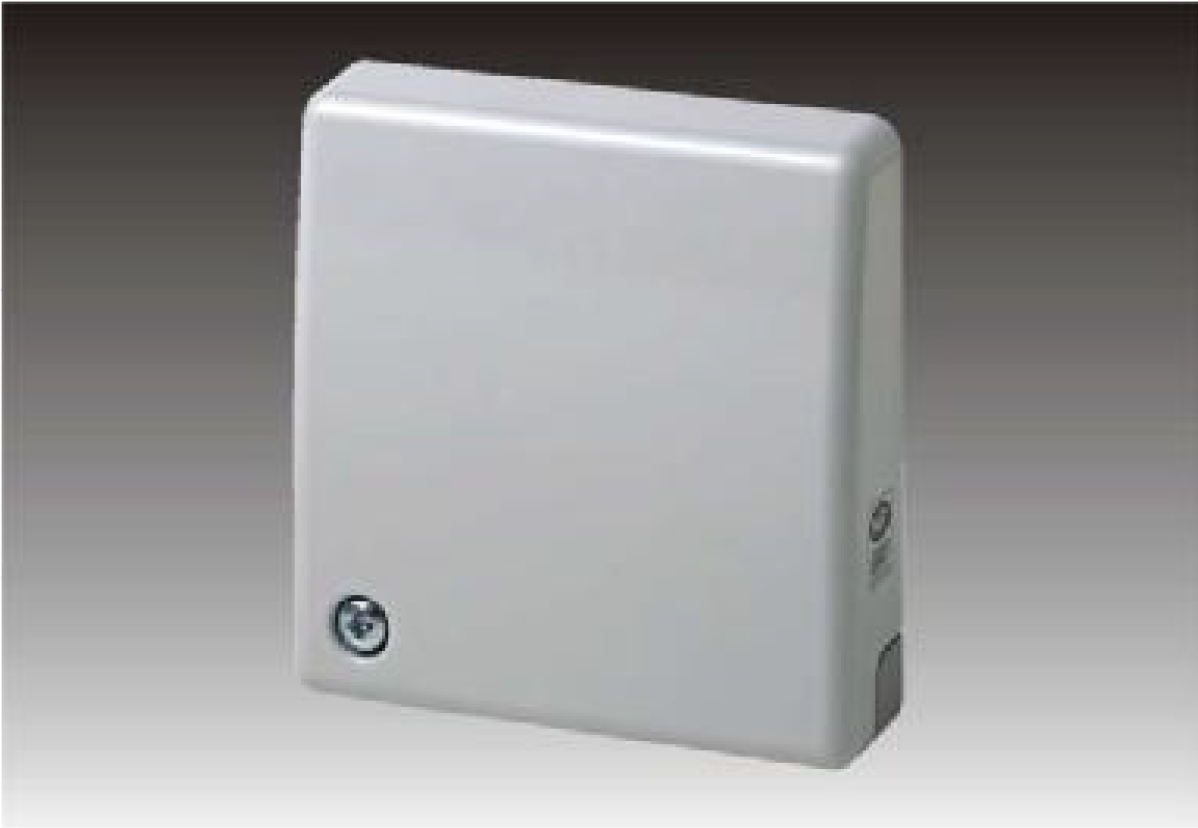

Effective. The GM730 reliable recognises attacks with explosives or attempted entry using modern tools, such as diamond-tipped drills, mechanical and hydraulic pressure tools, flame cutters, thermal-lances or water jet on safes, automatic teller machines, night deposits and strong rooms.
Highly professional. The patented SENSTEC sensor and digital signal processing evaluates a selected narrow frequency band to ensure reliable detection. This comprehensive protection is immune to environmental influences including air and structure
borne noise from external disturbance sources.
This equipment has been designed to meet the meas¬urement requirement of Safety Engineers, Health, Indu¬strial Safety offices and Sound Quality control in various environment, which include factory, office, traffic, family, and audio system.
This equipment has the following functions:
Dual technology motion detector that combines PIR technology with microwave detection is suitable for protection of rooms with sub–optimal environmental conditions where drafts or intensive convection may occur. The use of new microwave sensor operating and 24GHz frequency, together with 0402 SMD technology allowed to design a dual technology device that fits into a typical PIR enclosure. This makes GREY a great choice for protection of rooms with a fireplace or hot–air heating systems, where the appearance of the installation components is of the same importance as their reliability.
The MEC-HPB01 and MEC-HPB02 Latching Panic Buttons are the perfect units for activating hold-up circuits, cameras, etc. Because of its superior construction and solid-state design, these units can be used for silent operation, or if you wish, these units can be conveniently connected to sound a bell, siren, or other signalling device when triggered. The highly reliable switch mechanism ensures that these units will give you years and years of trouble-free operation. Once activated, the MEC-HPB01 and MEC-HPB02 will latch-in and an indicator flag will clearly show which hold-up switch was depressed – a great help when more than one unit is used. The unit can only be reset by an authorized person with the key.
MEC-HPB01
MEC-HPB02

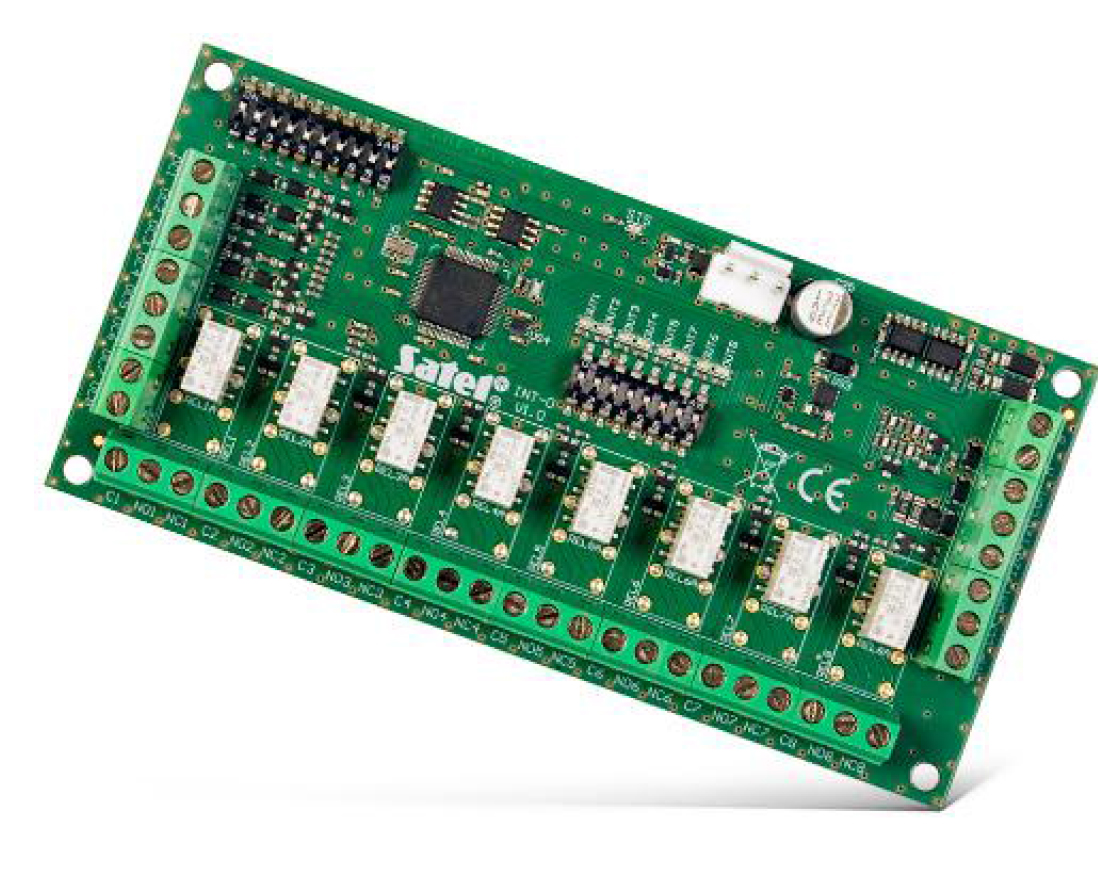

The output expansion module, designed for use in conjunction with the control panels of INTEGRA, INTEGRA Plus, VERSA and VERSA Plus families, as well as with ACCO–NT access control panel. This device replaces the CA–64 O–OC, CA–64 O–R and CA–64 O–ROC modules. The INT–O allows for expansion of the system by additional 8 wired outputs. An additional tamper input helps detect unauthorized opening of the enclosure in which the module is installed.
System expansion with 8 outputs:
The partition keypad is designed for easy operation of a single partition in the INTEGRA system, perfectly fit for systems where single partitions constitute functionally separated subsystems. With the built–in proximity card reader, partitions can be handled without a password, and the air–tight housing allows for outdoor installation.

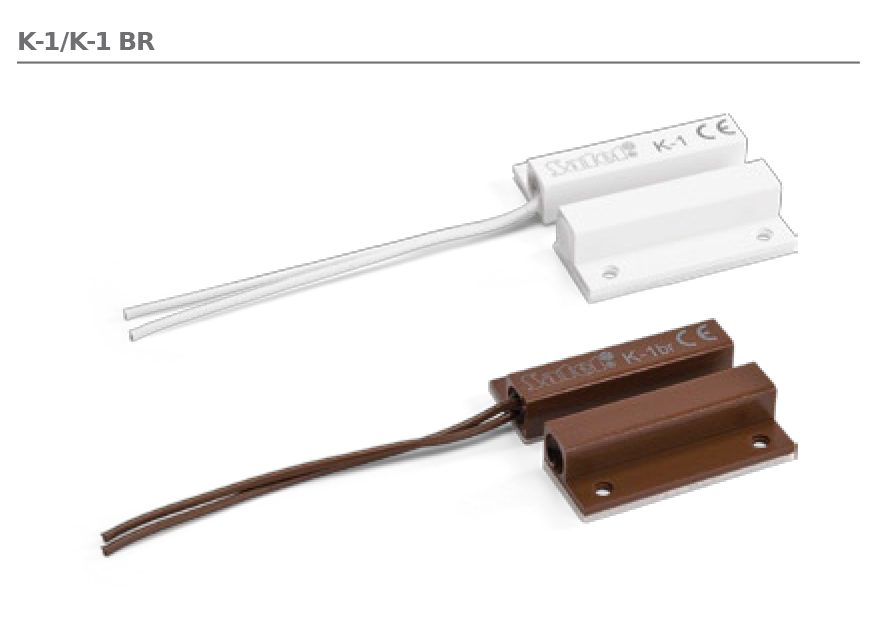

Magnetic contact detectors belong to the essential devices of perimeter protection. They are used to protect doors, windows, etc., by triggering alarm when they are open. The K–1 detector is designed for surface mounting by fastening it with screws e.g. to window frame or door frame. K–1 consists of two watertight parts: the reed switch (magnetic) sensor and the magnet. Moving one part away from the other breaks the sensor circuit, which is indicated as a violation. K–1 is designed to work with any alarm control panel provided with NC inputs as well as to be used in automation system as a control element. The K–1 detector is available in two color versions: white (K–1) and bronze (K–1 BR).
Magnetic contacts are the basic perimeter protection of windows and doors. Thanks to the available range of enclosures, you can easily select the device best suited for your application.
Features
k-1
k-2
k-3

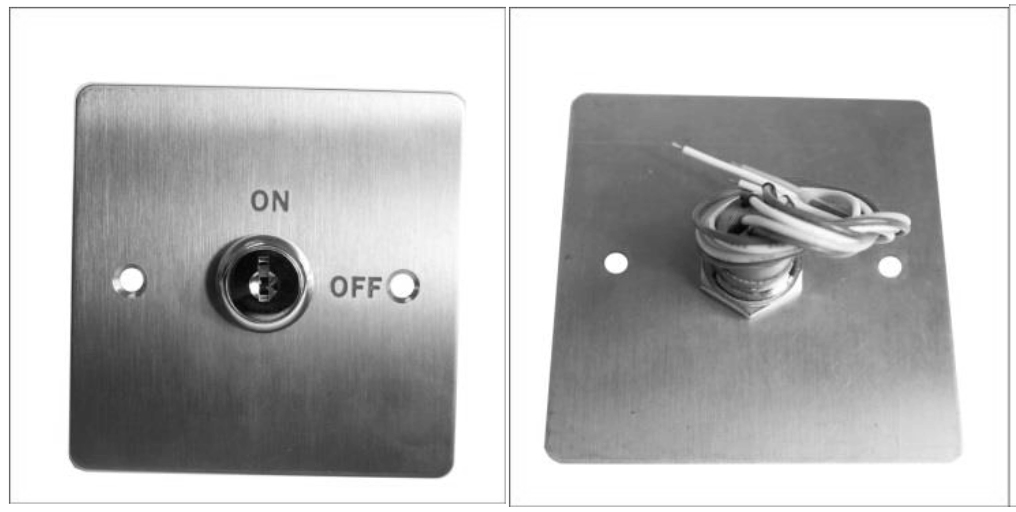

MEC-KS01 series button is 2 key switch buttons, it casted by 304 stainless steel with drawing panel processing. It is elegant style with long time usage.
Advantages

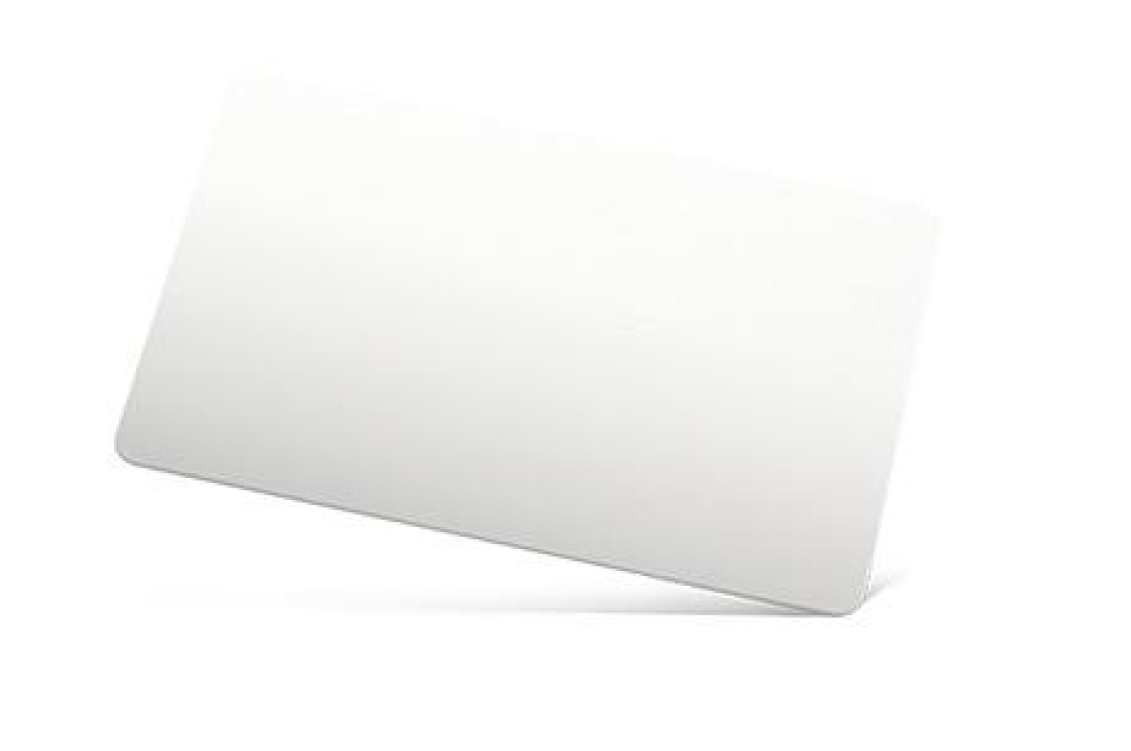

KT–STD–1 is a 125 kHz passive transponder. It is compatible with proximity identifier readers and thus can be used in the alarm systems based on the INTEGRA control panels as well as in the ACCO access control systems. It allows the system users to take advantage of the access control functionality, and enables the administrator to identify individual users, record their attendance and working hours, etc.
The device comes in the form of proximity card the size of a standard payment card (85 x 55 mm, thickness <1 mm). Hence, you can carry it e.g. in your wallet, which diminishes the risk of it being accidentally lost. You can also keep it in the OP–KT–1 holder for better protection against mechanical damage. Holes are provided in the holder so that you can wear your transponder e.g. suspended from a lanyard. Additionally, you can place an imprint on the card (text, photo, etc.) to facilitate its identification.
Responsive detection with a Passive Infrared (PIR) sensor
The KX15DD consists of a dual-element pyro-electric PIR sensor, which works by constantly monitoring the infrared energy levels around a room. The detector will recognize any changes caused by the entry of an intruder and inform the panel to go into an alarm condition.
Adaptable, optimized & stylish
Volumetric detection
Ideal large area coverage for living rooms, dining rooms, kitchens and more.
15m detection coverage
Detection coverage up to 15m.
ABS plastics
3mm polished finish produces a professional and sleek finish while reducing electrostatic interference on the PIR sensor.
Sealed optics
Protect the detector from possible insect infestation, shields air movement in front of the pyro-electric sensor and protects against adverse re ections from inside the detector housing. Avoid false alarms with Blue Wave Technology (BWT) Advanced signal processing and 3D optics safeguard against false alarms and improve immunity to interference:
Digital temperature compensation
Digitally adjusts the sensitivity of the detector to maintain its specified range when the background temperature is close to body temperature.
Automatic sensitivity
The detector self-adapts to changing environmental conditions to maintain stability and intruder catch performance.
Independent Floating Thresholds (IFT)
Eliminates electrical environmental disturbances by ensuring alarm thresholds are always kept within predetermined limits.
Optical 3D system
Improves the detection of moving targets, ensures more precise signals can be received from the PIR and allows protection of the area below the detector (creep zone).
The MAGENTA acoustic glass break detector is designed to protect rooms with multiple glass panes. It detects plate, laminated and tempered glass break. Its trimmer sensitivity adjustment makes it easy to adapt detector settings in a specific room using the INDIGO TESTER device.
OPAL Pro is an outdoor dual technology motion detector, which is ideally suited for use both outside of the protected building, and in the interiors where difficult or specific environmental conditions prevail (halls, shelters, sheds etc.). The OPAL Pro detector incorporates dual technology motion detection: PIR and MW. It also uses active IR anti–masking (for indoor use). Therefore, the device has a certificate of compliance with the high security requirements specified in EN 50131 for Grade 3: the detector can be used to protect the interiors of medium to high risk premises, like banks, museums, jewelry stores, etc.
The dual technology, in conjunction with the algorithm of detector auto–tuning to the environmental conditions, provides high immunity to false alarms and hence stable operation in harsh weather conditions, such as rain, snow, sunshine and strong gusts of air. The device offers correct performance in a wide range of temperatures from –40°C to + 55°C, the ambient temperature changes being automatically compensated.
Detection angle of the OPAL Pro detector is as wide as 100 degrees and its range exceeds 15 m. The creep zone is also protected, so any intruder’s attempt to sneak by under the device to damage or remove it will be detected. Additionally, the detector software is designed so as to prevent false alarms from being triggered by the movement of small pets. Additionally, the OPAL Pro detector is provided with a dusk sensor for OC output control, which enables it to be used also in alarm systems with home automation without having to install additional dusk detectors. The signal from the low–current output can be sent directly to the relay located in the electrical switchboard or to the home automation controller. The detector can also work in conjunction with the KNX system via an INTEGRA family control panel. Thus, the OPAL Pro functionality makes possible simple and convenient control of roller shutters, building outdoor lighting, garage door or entrance gate etc., while the moment of operation can be selected with the precise sensitivity control.
What greatly facilitates the installer’s work is the function of remote change of the sensitivity of all detection circuits and dusk sensor with the OPT–1 keyfob, without having to re–open the detector enclosure many times to change the settings.
What is also unique is the device enclosure, which is made using the two–component injection molding technology. The thus received splash–proof, IP54 rated design protects the OPAL Pro electronics against harmful atmospheric phenomena. In addition, the detector enclosure has high mechanical strength and is resistant to UV radiation. For additional protection of the device against atmospheric precipitation and fouling, you can install the HOOD C (white) or HOOD C GY (gray) protective cover on the detector enclosure.
The OPAL Pro detector design enables it to be mounted directly on a flat surface. If the detector is to be tilted vertically or horizontally, you should use the dedicated angle or ball type brackets from the BRACKET C set (white) or BRACKET C GY set (gray).
The OPAL Pro detectors are available in two color versions: white (OPAL Pro) and gray (OPAL Pro GY).
OUTDOOR PIR + MW DUAL TECHNOLOGY MOTION DETECTOR
The OPAL Plus is an outdoor dual technology motion detector, which is perfectly suited for application both on the outside of the protected
building as well as indoors, where difficult or specific environmental conditions prevail (in halls, under umbrella roofs, etc.). The OPAL Plus detector incorporates PIR and MW technologies, as well as antimasking function based on the microwave technology. The dual technology combined with the algorithm of detector auto–tuning to the environmental conditions ensures high immunity to false alarms and, consequently, stable operation in harsh weather conditions, such as rain, snow, sunshine and strong gusts of air. The device offers correct operation in a wide temperature range from –40°C to +55°C, the ambient temperature changes being automatically compensated. The OPAL Plus detector has a detection angle as wide as 100 degrees and a reach of more than 15 meters. Also, as the look down zone is protected, any intruder’s attempt to approach the device to damage it or pull it off will be detected. In addition, the detector software has been designed so as to avoid false alarms caused by the movement of small pets. The OPAL Plus detector is also provided with a dusk sensor for OC output control, which allows it to be used in alarm systems with home automation, without having to install
additional dusk detectors. The signal from the low–current output can be passed directly to the relay located in the electrical switchboard or
to the home automation controller. The detector can also interface with the KNX system via a control panel of the INTEGRA series. Thus, the OPAL Plus functionality allows you to easily and conveniently control, for example, the roller shutters, building exterior lighting, garage door or entrance gate, as well as select the moment of operation through fine sensitivity adjustment. A big help for the installer is the function of remotely changing sensitivity of all detection circuits and dusk sensor with the OPT–1 keyfob, which eliminates the need for repeatedly opening the detector enclosure to change the settings. Also the device enclosure is unique, as it is made using two–component injection molding technology. The result of it is a splash–proof IP54 rated design, which protects the OPAL Plus electronics against harmful atmospheric phenomena. The detector enclosure is also characterized by high mechanical strength and resistance to UV radiation. The OPAL Plus detector is designed for mounting directly on a flat surface. If the detector is to be turned vertically or tilted horizontally, you can use special angle–type or ball–joint type brackets from the BRACKET C set (white) or BRACKET C GY set (gray). The OPAL Plus detector is available in two color versions: white (OPAL Plus) and gray (OPAL Plus GY).
The Orion is a low profile external sounder and comes in two versions, Vertical and Horizontal. The backplate is made from 3mm polycarbonate and has adjustable wall mountings to allow for the movement of the fixing holes when installing. Moulded into the backplate are two knockout spacers (2mm & 4mm) for use on uneven surfaces. The cover is also made from 3mm polycarbonate and comes complete with either one or two lenses depending on the version. The special hinged flush fitting covers conceal the cover screws.
An internal 1.5mm polycarbonate cover further protects the electronics. Access to the 45° terminals is gained via a small clip-on-cover with guides to aid the wiring. The vertical version has one strobe, while the horizontal has two strobes. Both versions have RED and GREEN comfort LEDs which flash at 1Hz and also act as diagnostic indicators. The fail-safe timer is set to 15 minutes. Also included in the electronics is a selectable SAB/SCB option where current draw is required to be lower e.g. multi bell systems. The Piezo gives an output of 115dB(A) @ 1 metre. A three way tamper switch protects the sounder, providing detection against removal from wall, cover opening and cover screw removal
Features
Standards

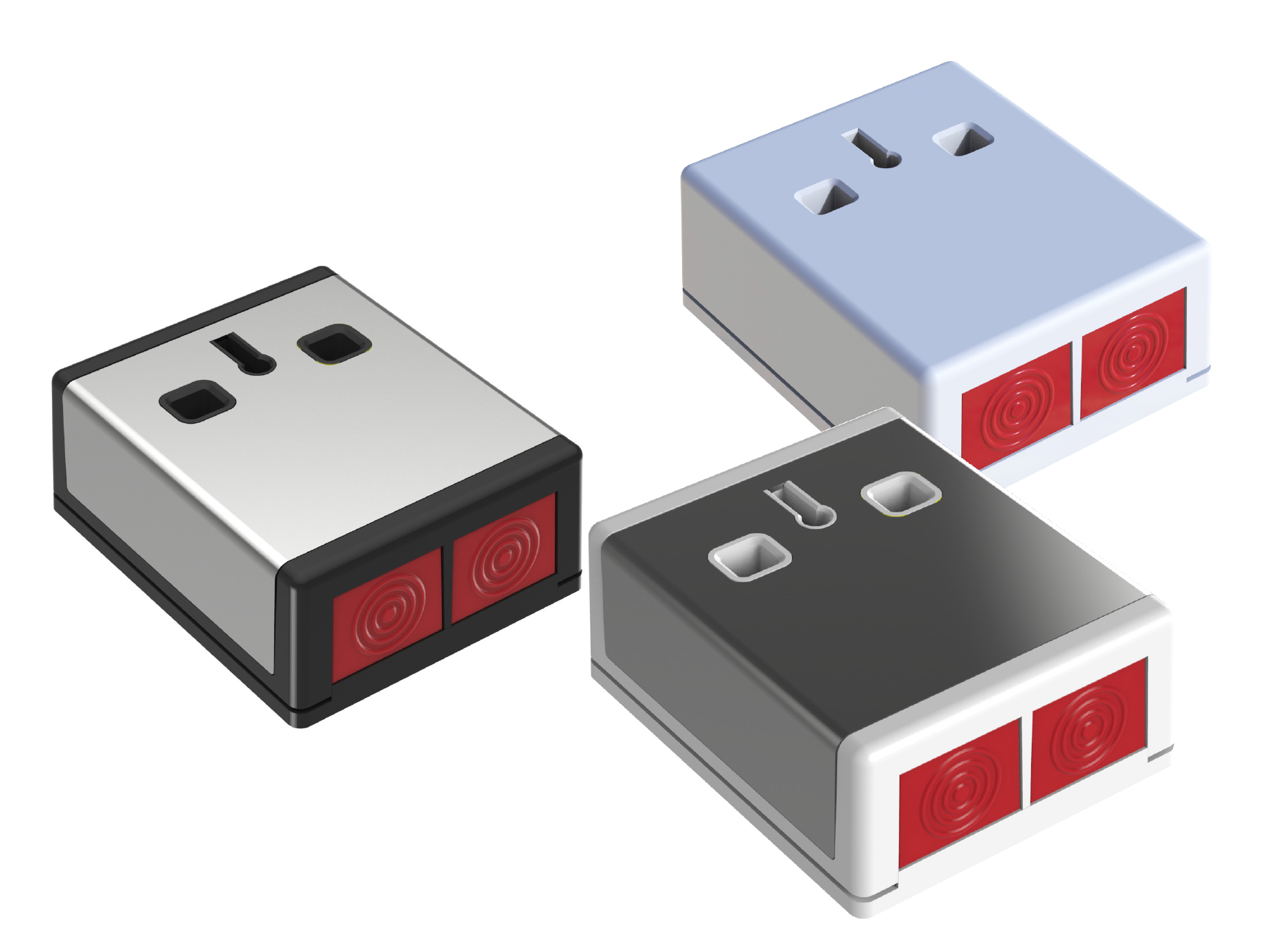

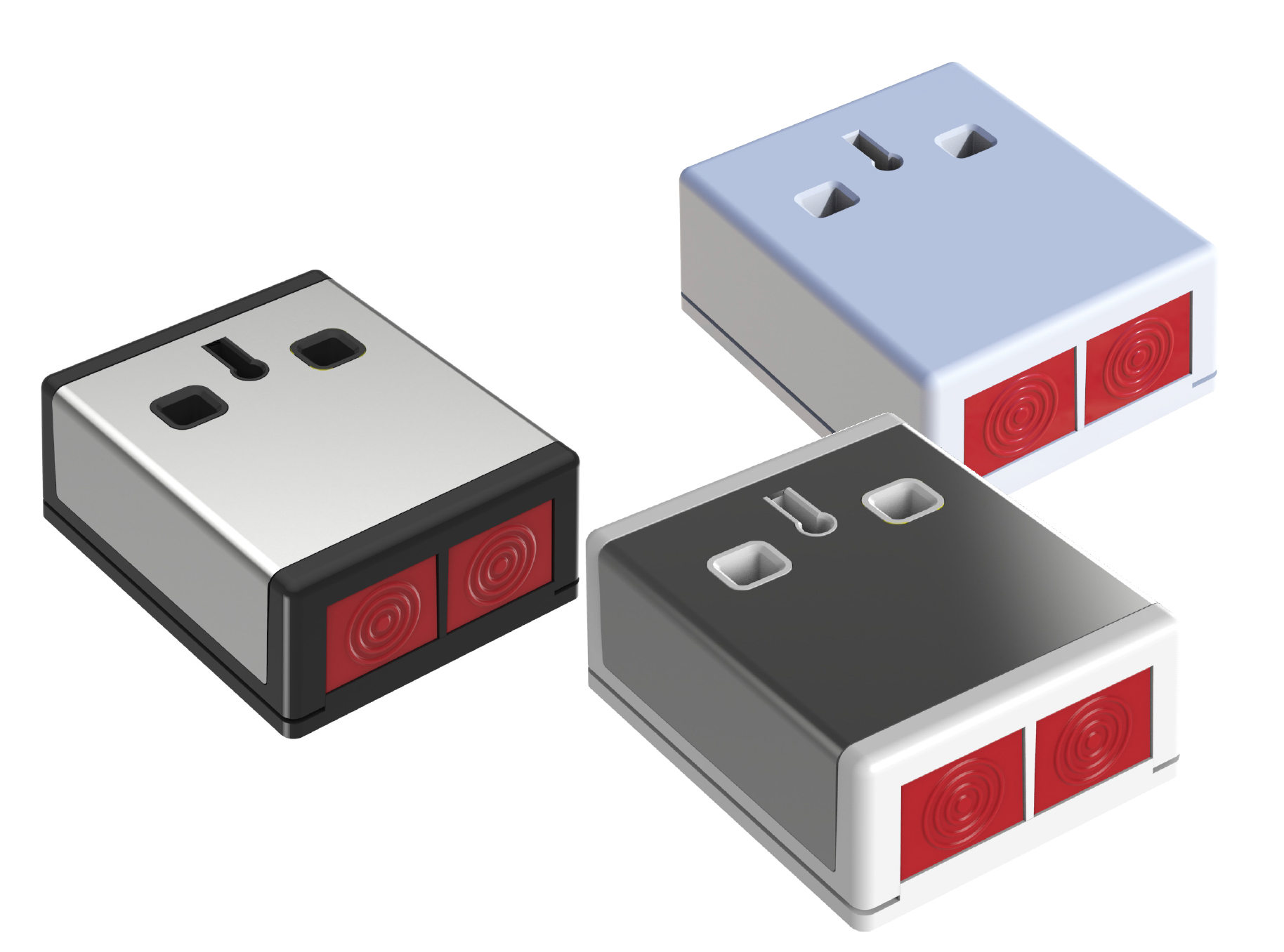

Double Push Hold Up Device
Product Codes
PB-52 and PB-52 TC

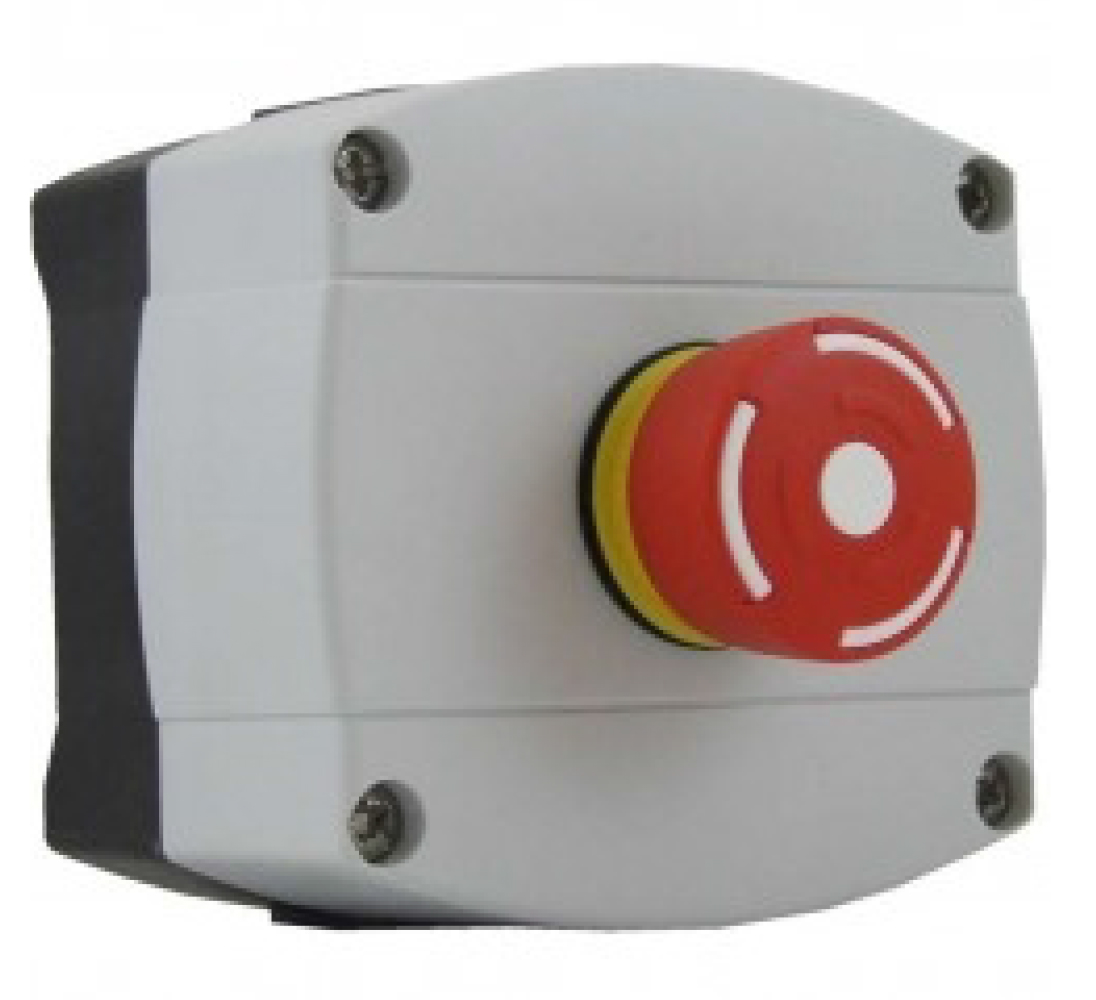

A latching mushroom headed push button mounted in an IP66 rated enclosure. Ideal for use outdoor or in other damp environments such as around swimming pools. Supplied with normally closed and normally open contacts.

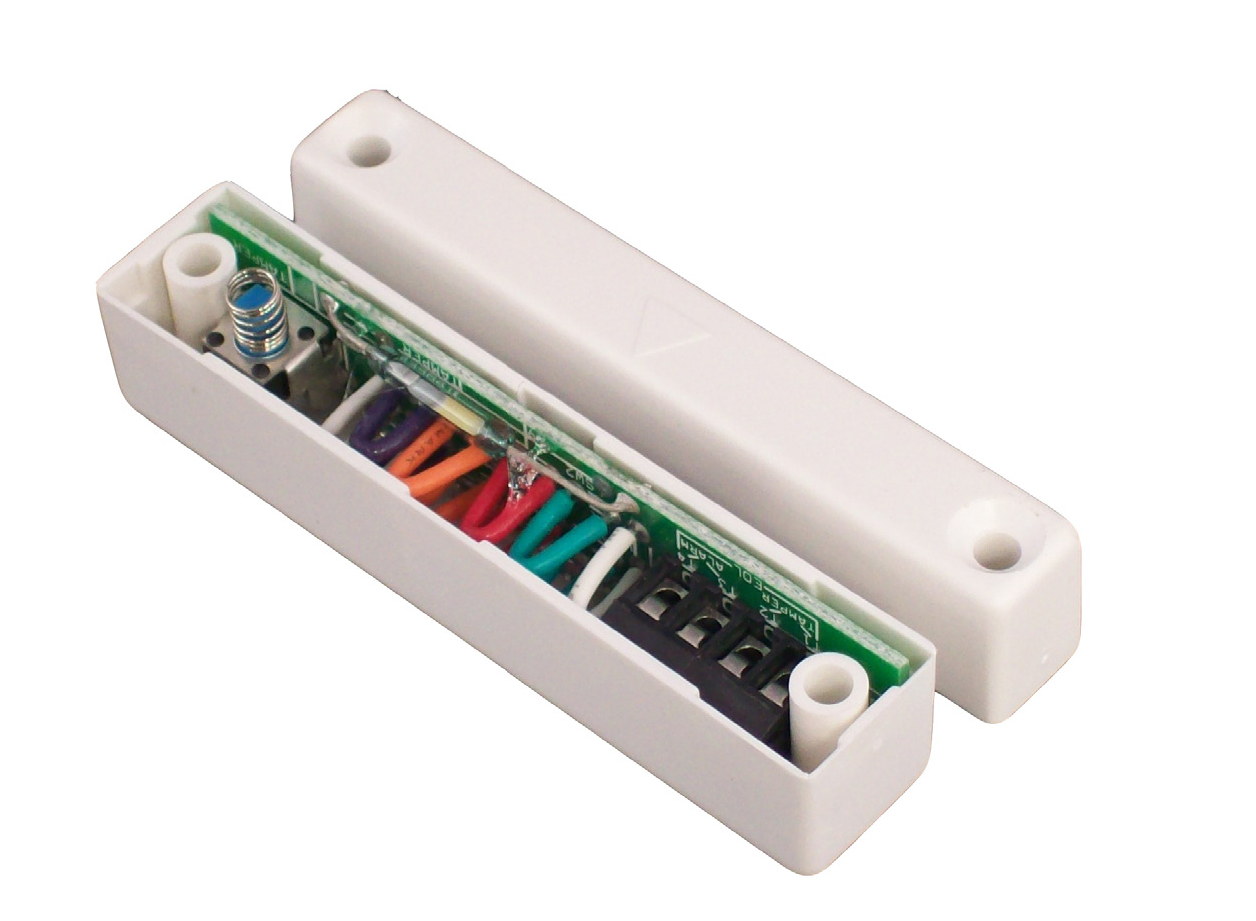

SURFACE CONTACT

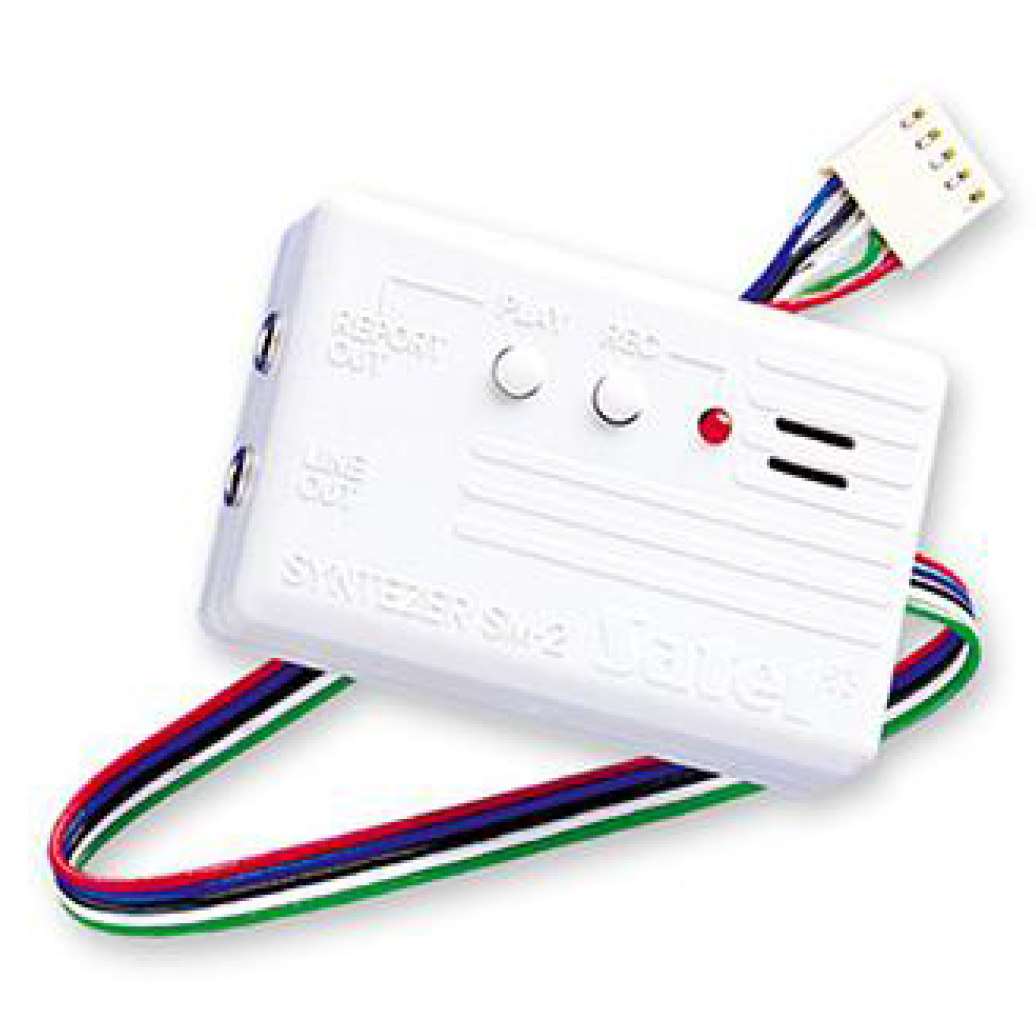

VOICE SYNTHESIZER
The synthesiser can playback voice messages over phone if the alarm notification is used.
Records and plays back a 16 second voice message

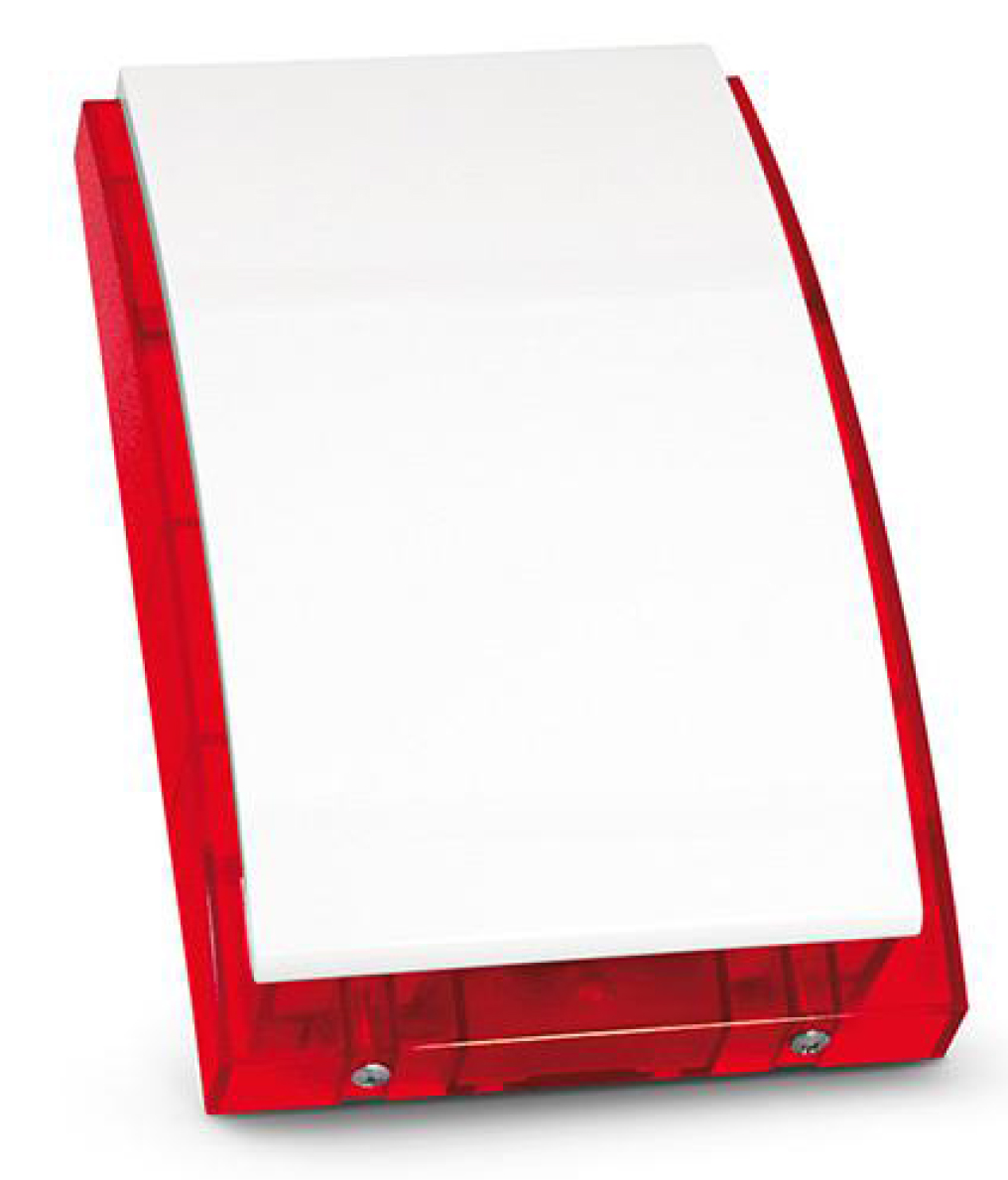

OUTDOOR SIREN WITH OPTICAL AND ACOUSTICAL SIGNALING
SP–4001 R is an optical–acoustic siren designed for outdoor installation, provided with super bright LEDs and a piezoelectric transducer. It offers three types of 120 dB intensity modulated tones to choose from. Enclosure of the siren is made of polycarbonate, which ensures high mechanical strength and aesthetic appearance of the device that remains unchanged over time. A simple, yet attractive design of the enclosure makes it ideal even for a modern façade. The device is provided with tamper protection against opening or tearing off the wall, and the inner shield of galvanized sheet additionally protects the electronics board and transducer against mechanical damage. The electronic circuits are properly weatherproofed, so they are also resistant to the effects of harsh environmental conditions. The SP–4001 optical–acoustic siren is available in three color versions: SP–4001 R (red), SP–4001 BL (blue) and SP–4001 O (orange).

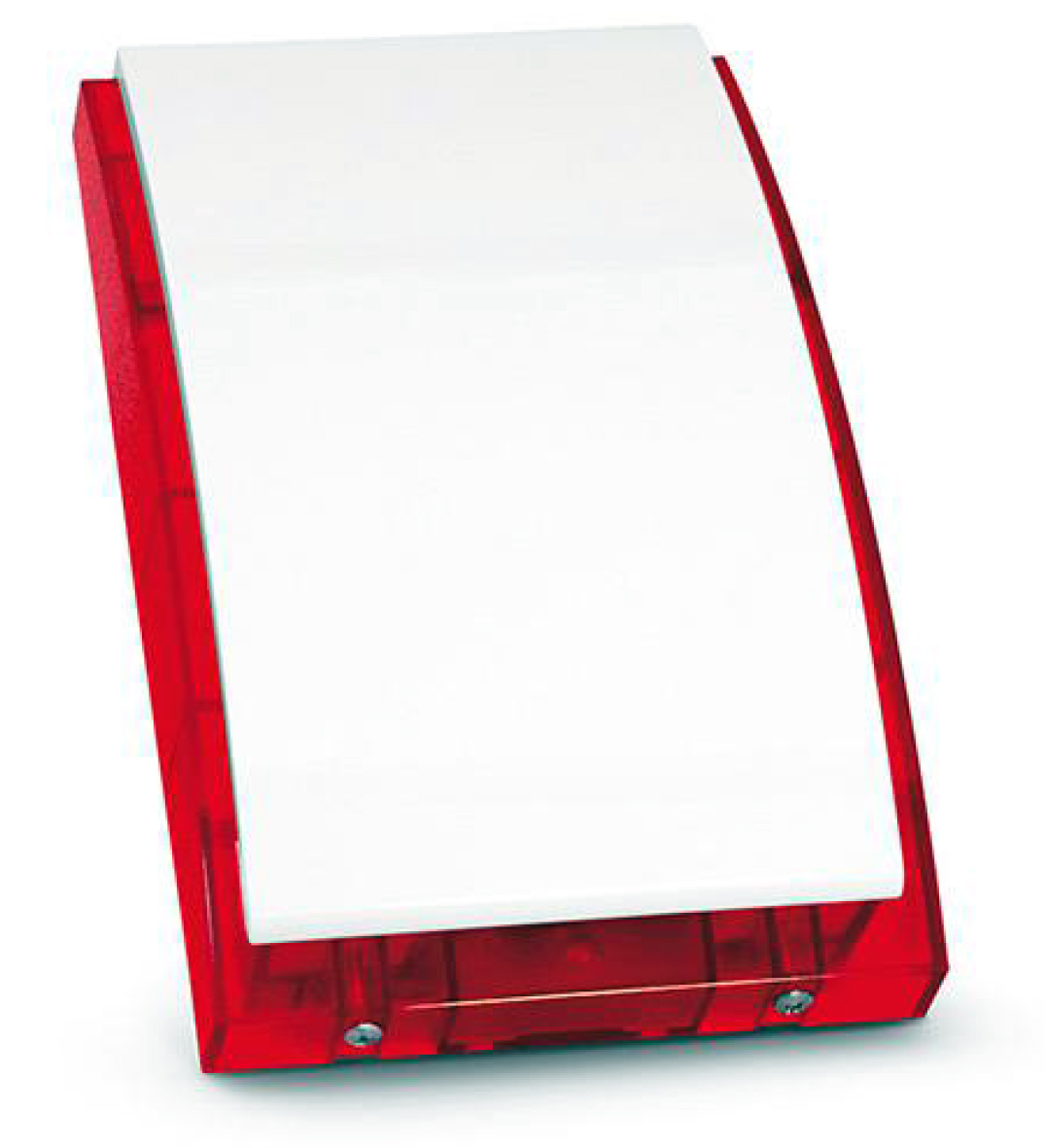

OUTDOOR SIREN WITH OPTICAL AND ACOUSTICAL SIGNALING (BATTERY BACK–UP)
SP–4002 R is an optical–acoustic siren designed for outdoor installation, provided with super bright LEDs and a piezoelectric transducer. It offers three types of 120 dB intensity modulated tones to choose from. This model is designed to work with a 1.3 Ah, 6 V gel lead–acid battery, which is installed inside the enclosure and serves as a backup power supply. Enclosure of the siren is made of polycarbonate, which ensures high mechanical strength and aesthetic appearance of the device that remains unchanged over time. A simple, yet attractive design of the enclosure makes it ideal even for a modern façade. The device is provided with tamper protection against opening or tearing off the wall, and the inner shield of galvanized sheet additionally protects the electronics board and transducer against mechanical damage. The electronic circuits are properly weatherproofed, so they are also resistant to the effects of harsh environmental conditions. The SP–4002 optical–acoustic siren is available in three color versions: SP–4002 R (red), SP–4002 BL (blue) and SP–4002 O (orange).

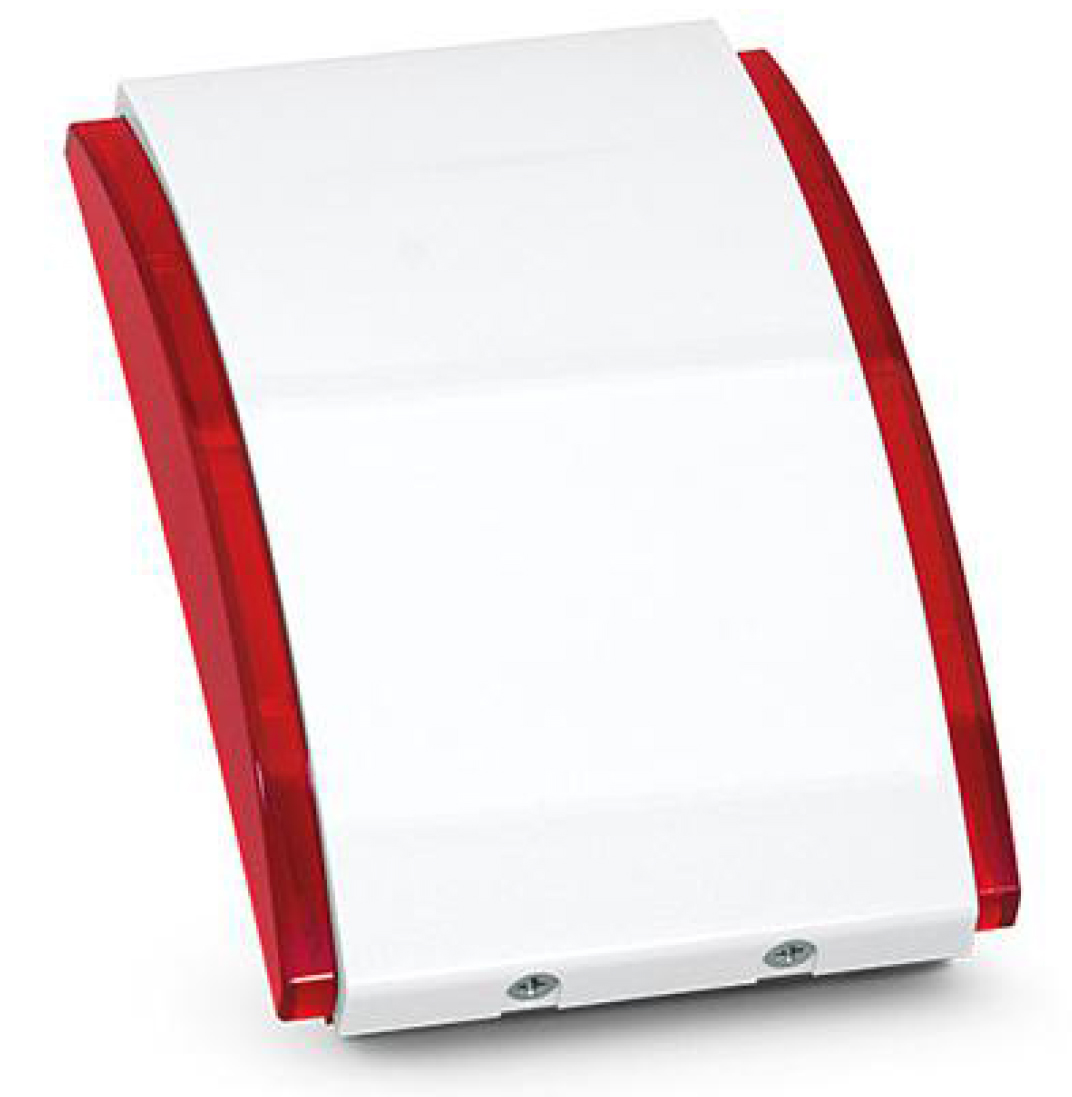

INDOOR SIREN WITH OPTICAL AND ACOUSTICAL SIGNALING
SPW–220 R is a siren with optical and acoustic signaling, designed for indoor installation and provided with super–bright LEDs and piezoelectric transducer. The two optical sets placed on the sides of the enclosure make the light alarm of the device perfectly visible even from a large distance, also in daylight. It offers three types of 120 dB intensity modulated tones to choose from. The loud signal ensures good audibility over a large area, e.g. in warehouses, production halls, parking lots inside buildings, etc. Enclosure of the siren is made of polycarbonate, thus ensuring high mechanical strength and aesthetic appearance of the device that remains unchanged over time. The siren is provided with tamper protection against opening or tearing off the wall. The SPW–220 optical–acoustic siren is available in three color versions: SPW–220 R (red), SPW–220 BL (blue) and SPW–220 O (orange).

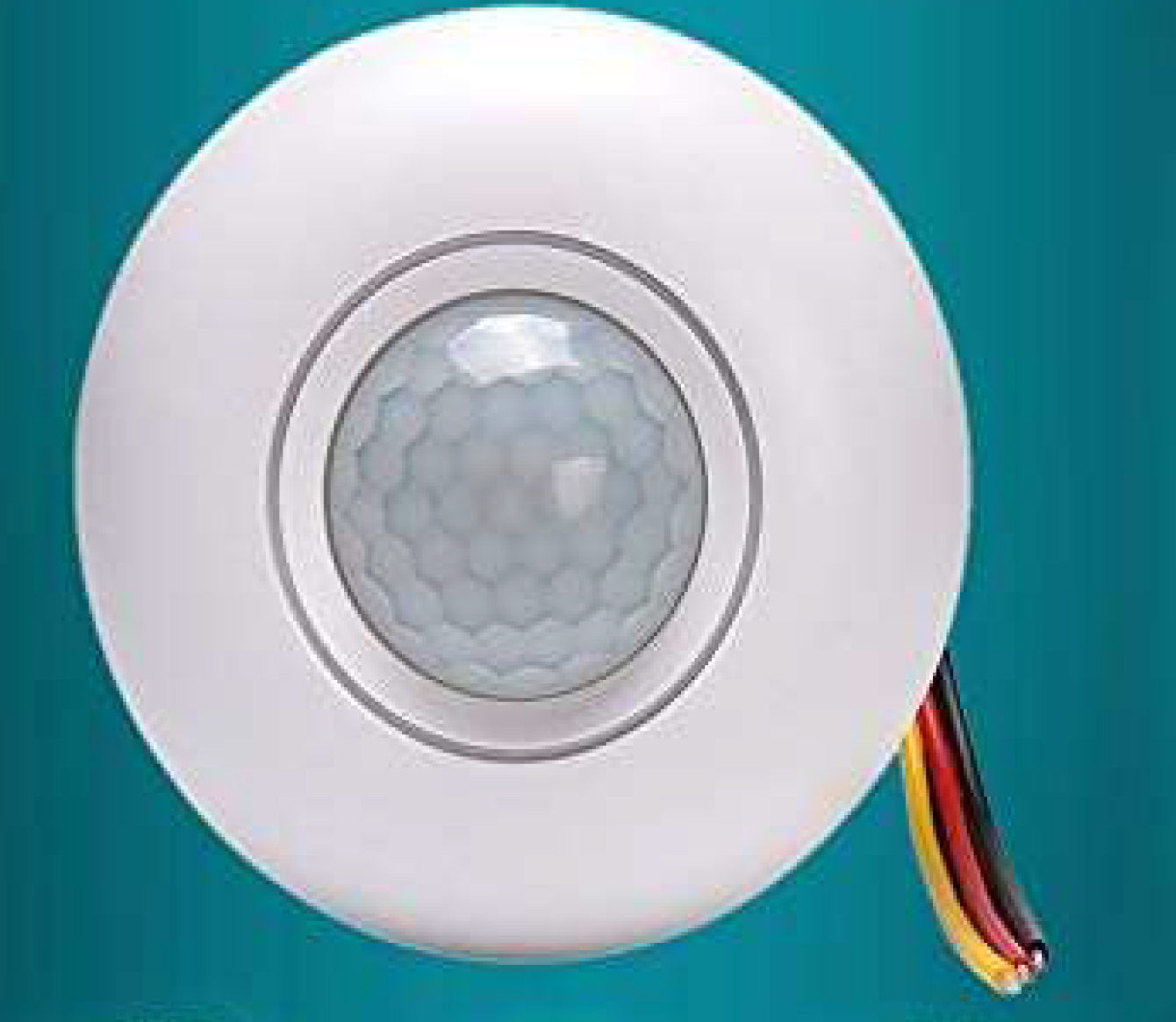

PIR ceiling switch with load 1000W switch, with multiple protection circuit and 220V 10A relay. Suitable for corridor, toilet, garage, staircase, store room and more. When get in the sensing area, the switch will connect with the load, and turn on light. The switch will stay connect until the sensing area no people. Light up in dark condition. Can use to control energy saving lamps, fluorescent lamp, LED lamps, and other lamps. Auto PIR light can save energy and solved the problems of sound switches which will affect by the sound of bark, horn and more. PIR switch can reduce the probability of bacteria
spread.

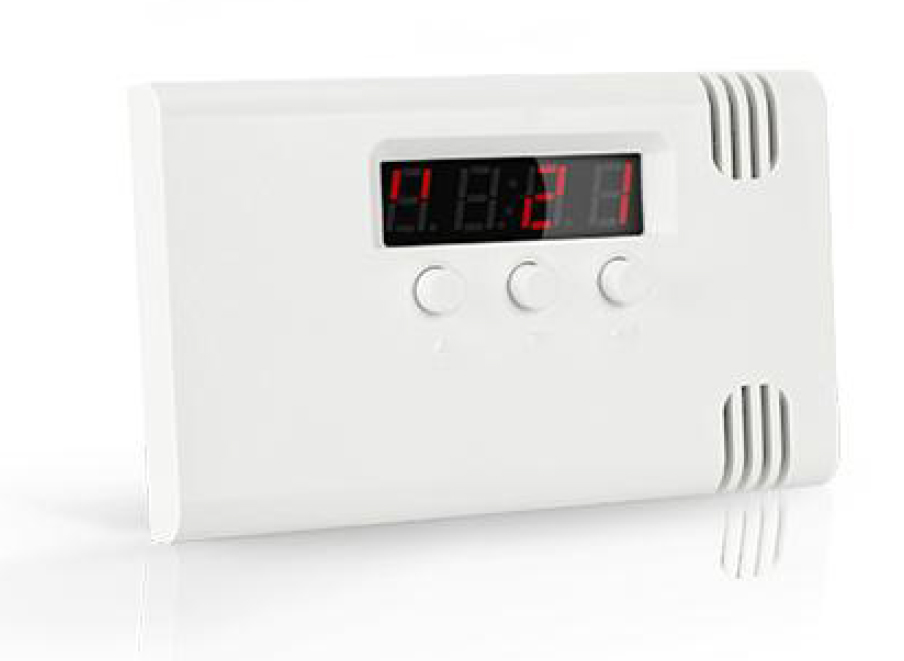

TD–1 is a programmable temperature detector, which can handle two independent sensors: built–in one and connectable external one. It monitors the temperature within the –35oC to +60oC range and alerts when it goes beyond the minimum or maximum threshold value. It can also provide information about exceedingly rapid temperature changes, which may be useful when indicating e.g. a sudden warming of air in the cold store. Connecting a bistable switch instead of the external probe makes possible toggling between two sets of critical parameters of the internal sensor, e.g. for day and for night.
The detector enclosure contains three buttons for programming of the device, as well as a four–digit LCD screen, on which the current ambient temperature and the value read from the external probe are displayed. Error messages can also be displayed on the screen. The TD–1 detector has a built–in piezoelectric transducer for audible signaling, a tamper switch and two programmable relay outputs, which may be used for communication with the control panel or for control of another device.

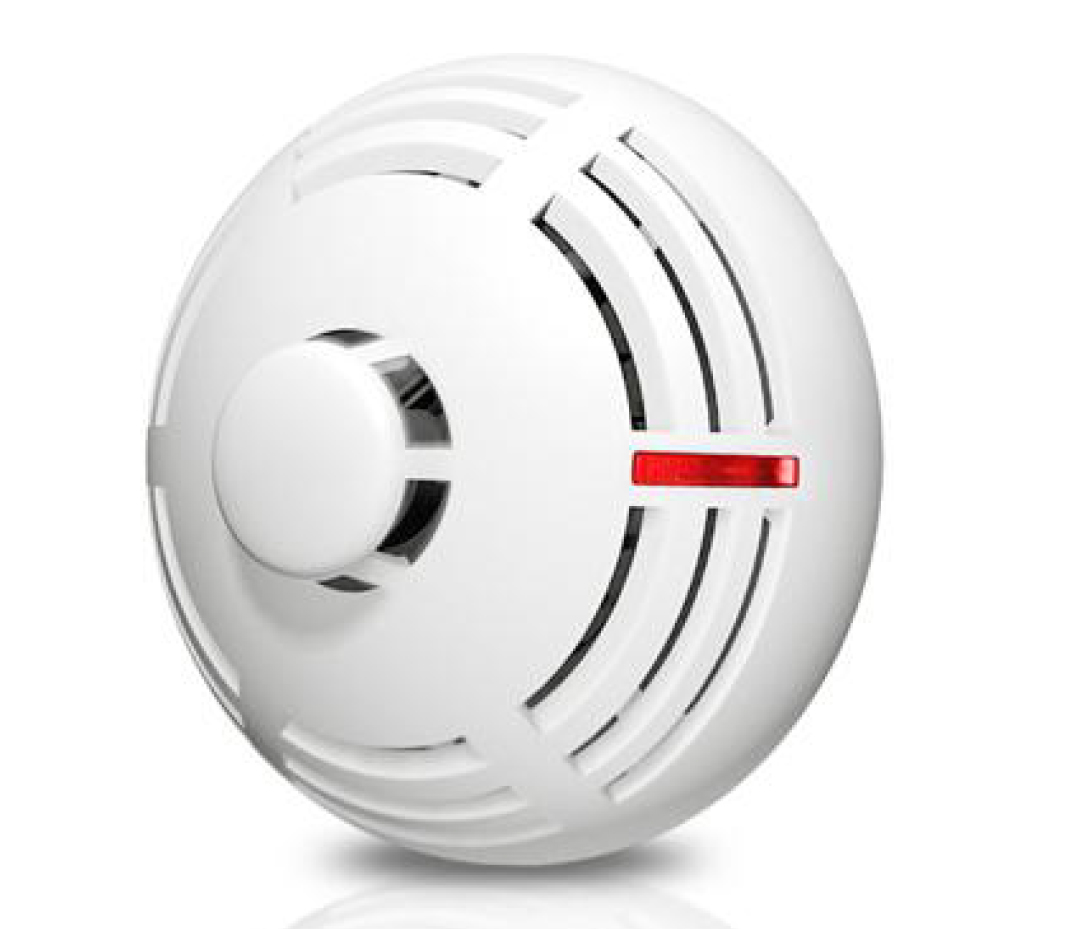

The TSD–1 is a point detector designed to detect the early stages of a developing fire. For this purpose, it is equipped with a photoelectric
sensor of visible smoke, as well as rate of rise temperature sensor. The unique design of the measuring chamber provides high sensitivity and omni–directionality, while a precise Hexamesh stainless steel filter protects the chamber from ingress of contamination and small insects. Detector configuration with DIP–switches and built–in parametric end of line resistors facilitate connection of the detector to virtually any control panel with a 12 V power supply.
VD–1 is a device that includes vibration detector and magnetic contact. It is part of the basic perimeter protection, ideally suited to secure doors or windows by detecting vibrations caused by an attempt to pry the door or window open (piezoelectric sensor) or indicating that they are open (magnetic sensor). Owing to the advanced features of processing the piezoelectric sensor signal, the vibration detector can distinguish between the natural vibrations coming from the environment (like strong gusts of wind, drafts) and those caused by an attempt to force the door or window open. Additionally, VD–1 offers control of the vibration sensor sensitivity level (to detect single strong vibrations) as well as independent setting
of the number of pulses (weak vibrations), a sequence of which will cause violation of the detector.
Using the two built–in reed switches makes it possible to select the method of installation – the magnet working in conjunction with the magnetic sensor can be, depending on needs, located under the detector or at the side of it. Removing the magnet away from the selected reed switch will change the status of the detector NC alarm output, sending a signal to the control panel that the protected door, window etc. is violated.
Depending on the lighting mode, the built–in red LED provides information that the detector is sensing strong vibrations or registering weak vibrations, or that the magnetic sensor is violated, or indicates the number of pulses set for the vibration detector. The device is also provided with tamper protection which responds to opening the enclosure and tearing if off the wall. The VD–1 detector is available in two color versions: white (VD–1)
and brown (VD–1 BR).
