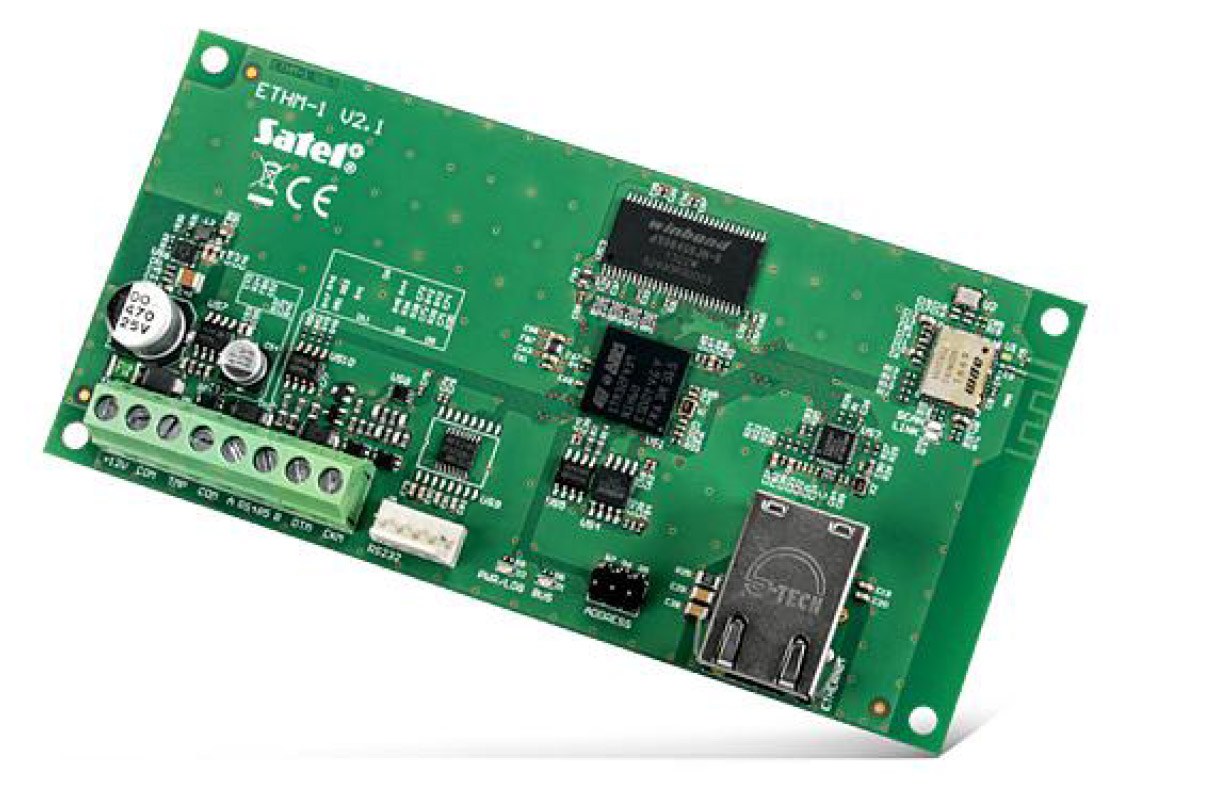

The ETHM–1 Plus communication module makes it possible to use Ethernet communication in the control panels of INTEGRA, INTEGRA Plus and VERSA families. It provides the capability of reporting and remote programming of the control panels. Additionally, in conjunction with the INTEGRA control panels, the ETHM–1 Plus module offers the functionality of remote control of the system via the INTERNET, using a computer, tablet or smartphone.

Specification

  • Supply voltage : 12 V DC
  • Operating temperature range : -10…+55 °C
  • Standby mode current consumption : 70 mA
  • Max. current consumption : 80 mA
  • Weight : 64 g
  • Maximum humidity : 93±3%
  • Dimensions : 68 x 140 mm
  • Environmental class according to EN50130-5 : II

Universal multi–task communication module

GSM–X LTE offers extensive communication functionality and support for multipath communication. The device comes with a cellular phone that supports data transmission using LTE* technology. The module can be used to implement reporting in alarm systems. For this purpose, it should be connected to the dialer or suitably configured outputs of the control panel. An important feature of the device is its expandability by adding the GSM–X–ETH Ethernet module, so that reporting can be implemented using two independent paths (data transmission via cellular network* and Ethernet). Thanks to constant monitoring of the state of connections with the monitoring station and substitutability of transmission paths, the stringent EN 50136 requirements for the so–called Dual Path Reporting are met. GSM–X LTE allows sending notifications to 8 telephone numbers – this can be done in several ways: using voice, SMS or PUSH messages, or the CLIP service.
The module offers extensive compatibility with the INTEGRA and INTEGRA Plus control panels. When connected to the control panel RS–232 interface, it will perform reporting and messaging (in the case of INTEGRA Plus, the SMS content is based directly on the event log). It also enables remote programming of these control panels from a computer with the DLOADX program and administration of alarm systems using the GUARDX program. The device can fully replace the analog telephone line, working as a backup communication path. When the line is not available, the module will divert voice calls to the cellular network. In the case of PBX systems, it can be used as an additional external line. GSM–X LTE is provided with 4 programmable outputs that can be controlled remotely using SMS, CLIP, DTMF, GX CONTROL mobile application or GX Soft configuration software. Consequently, the module can be used to remotely control the alarm system or other devices. For programming and configuration, you should use a computer with the GX Soft program installed. The computer can connects to the module locally (USB port) or remotely (data transmission over the cellular network* / Ethernet**). Remote update of the device firmware is possible owing to the module compatibility with the UpServ update server. The built–in cell phone has two slots for nano–SIM cards. If communication with the first card operator’s network fails, the module automatically switches to the other one to keep communication uninterrupted.

Specification

  • Number of OC outputs : 4
  • Number of inputs (zones) : 8
  • Enclosure dimensions : 126 x 158 x 46 mm
  • Board dimensions : 141 x 70 mm
  • Operating temperature range : -10…+55°C
  • Supply voltage : 12 V DC ±15%
  • Standby mode current consumption : 170 mA
  • Max. current consumption : 520 mA
  • Weight : 269 g
  • Maximum humidity : 93±3%
  • Environmental class according to EN50130-5 : II
  • Number of outputs power : 1
  • OC type outputs : 50 mA / 12 V DC
  • AUX output : 300 mA / 12 V DC

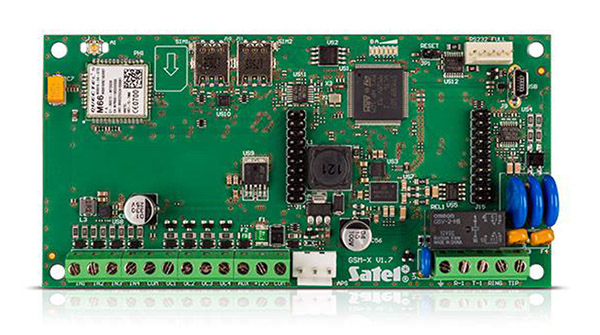

Universal multi–purpose GSM/GPRS communication module

GSM–X offers extensive communication functionality and support for multiple communication paths. This device can be used to carry out reporting in alarm systems. For this purpose, it uses a connection established via the dialer of any alarm control panel or its appropriately configured outputs. An important feature the communicator offers is the expansion capability by adding the GSM–X–ETH Ethernet module, so that reporting can be implemented through two independent channels (Ethernet and GPRS). Thanks to the constant monitoring of the state of connections with the monitoring station and the substitutability of transmission paths, the stringent requirements of EN 50136 for DP4 category are complied with, regarding the so–called Dual Path Reporting. GSM–X offers notification of up to 8 users in several ways: by using voice, SMS or PUSH messages, or via the CLIP service. As for the INTEGRA and INTEGRA Plus control panels, connection with them can be via RS–232. Thus, GSM–X will perform reporting and notification (in INTEGRA Plus), the content is downloaded from the list of events), and will establish remote connection with DLOADX and GUARDX programs. The module has the function that automatically switches communication over to the GSM path in the event of the analog telephone line failure. GSM–X can also act as a GSM gateway for private branch exchanges (PBX). The device has 4 programmable outputs that can be remotely controlled using SMS, CLIP, DTMF, GX CONTROL mobile application or GX Soft configuration software. That enables GSM–X to be used for remote control of the alarm system or other connected devices. A computer with the GX Soft program installed is used for programming and configuration. The computer can connect to the module locally, after connecting it to the module mini–USB port, or remotely, by connecting to the device via GPRS or Ethernet*.
Remote update of the device firmware is possible thanks to GSM–X capability of interacting with the UpServ program. The built–in GSM telephone has slots for two SIM cards. If any problems occur with the range of the first card operator’s network, the module will automatically switch to the other one to maintain uninterrupted communication.

Specification

  • Number of OC outputs : 4
  • Supply voltage : 12 V DC
  • Number of inputs (zones) : 4
  • Enclosure dimensions : 126 x 158 x 46 mm
  • Board dimensions : 141 x 70 mm
  • Operating temperature range : 10…+55°C
  • Standby mode current consumption : 100 mA
  • Max. current consumption : 275 mA
  • Weight : 255 g
  • Maximum humidity : 93±3%
  • Environmental class according to EN50130-5 : II
  • Number of outputs power : 1
  • OC type outputs : 50 mA / 12 V DC
  • AUX output : 300 mA / 12 V DC

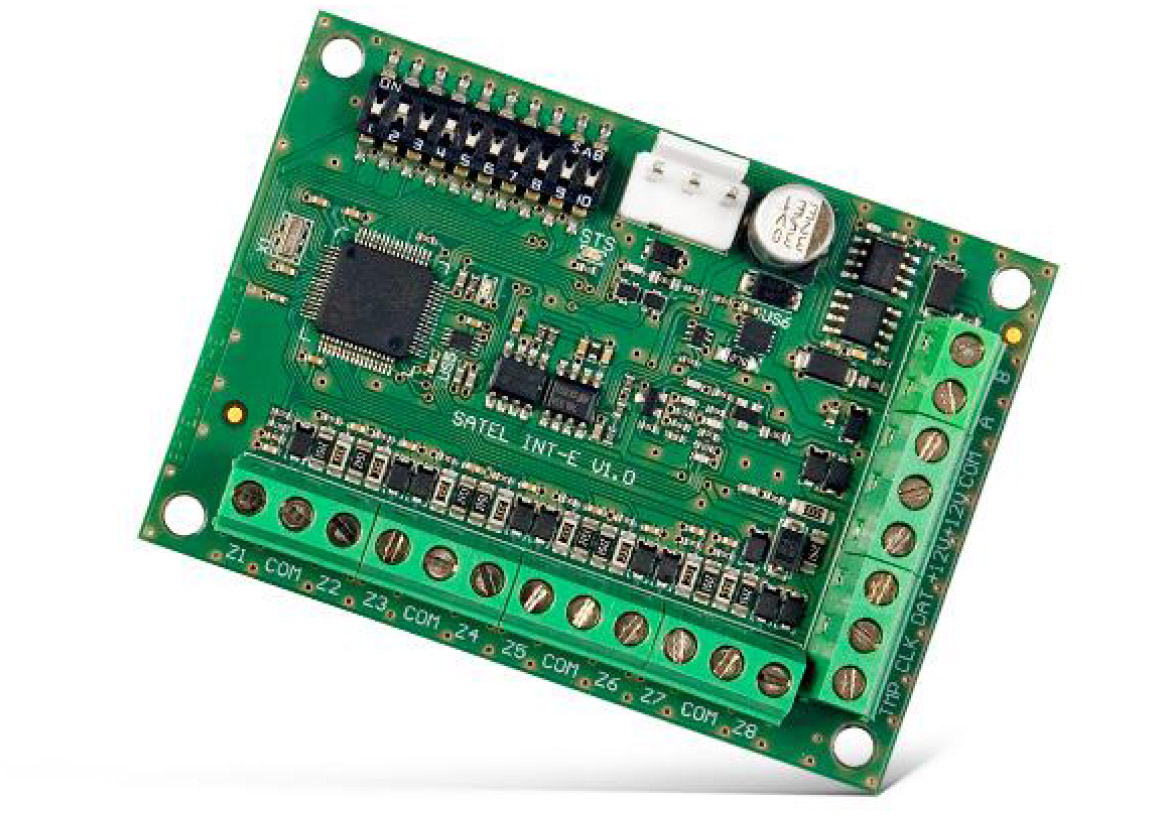

Zone expansion module

The module is designed for use in conjunction with the control panels of INTEGRA, INTEGRA Plus, VERSA, VERSA Plus and PERFECTA families as well as with ACCO–NT access control panel. This device replaces the CA–64 E/CA–64 EPS module. The INT–E offers expansion of the system by 8 wired zones as well as allows direct connection of roller shutter and vibration detectors. The additional tamper input facilitates detection of unauthorized opening of the enclosure in which the modulens installed.

  • System expansion with 8 zones
  • Support for:
    – NO, NC
    – EOL, 2EOL/NO, 2EOL/NC (alarm control panels only)
    – 3EOL (INTEGRA Plus only)
  • Programmable EOL resistance value (INTEGRA, INTEGRA Plus, VERSA, VERSA Plus only)
  • Support for vibration and roller shutter detectors (alarm control panels only)
  • Ability to connect to RS–485 bus (firmware update via the bus)

Specification

  • Supply voltage : 12 V DC
  • Operating temperature range : -10 °C…+55 °C
  • Standby mode current consumption : 35 mA
  • Max. current consumption : 80 mA
  • Weight : 47 g
  • Maximum humidity : 93±3%
  • Dimensions : 80 x 57 mm
  • Environmental class according to EN50130-5 : II
  • +12 V output rating : 2,5 A / 12 V DC
  • Security grade acc. to EN 50131 (without power supply) : Grade 3
  • Security grade acc. to EN 50131 (with APS-412 power supply) : Grade 2

LCD keypad for INTEGRA control panels
LCD manipulators are intended for daily operation of the INTEGRA systems. With the display showing text messages, even advanced functionalities of the alarm control unit are simple and convenient.

  • Keypad and display backlight
  • LEDs for system state indication
  • Keypad hold–down PANIC, FIRE and AUX alarms
  • Buzzer for acoustic signaling
  • Two zones expansion
  • Panel communication loss indication
  • RS–232 for supervision and management applications GUARDX

Specification

  • Environmental class : II
  • Supply voltage : 12 V DC
  • Enclosure dimensions : 140 x 126 x 26 mm
  • Operating temperature range : -10…+55 °C
  • Standby mode current consumption : 17 mA
  • Max. current consumption : 101 mA

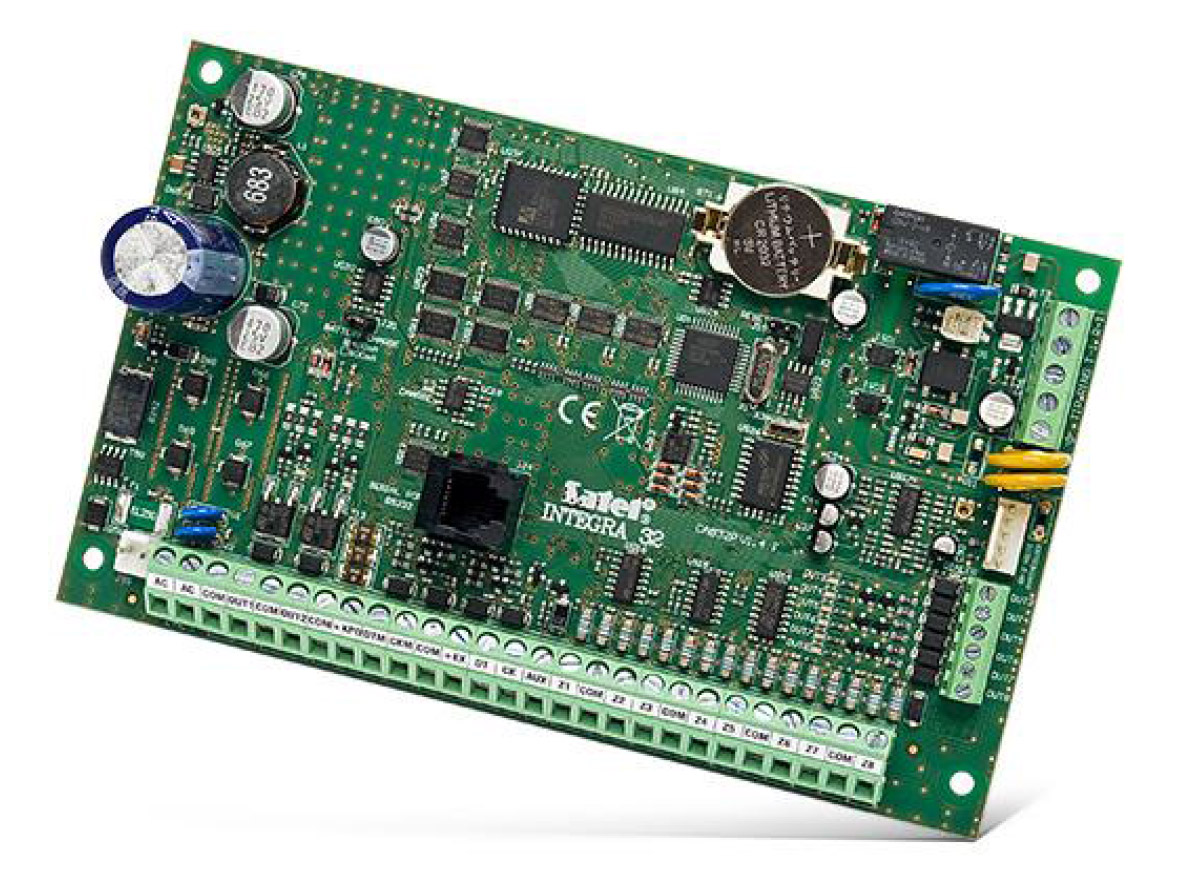

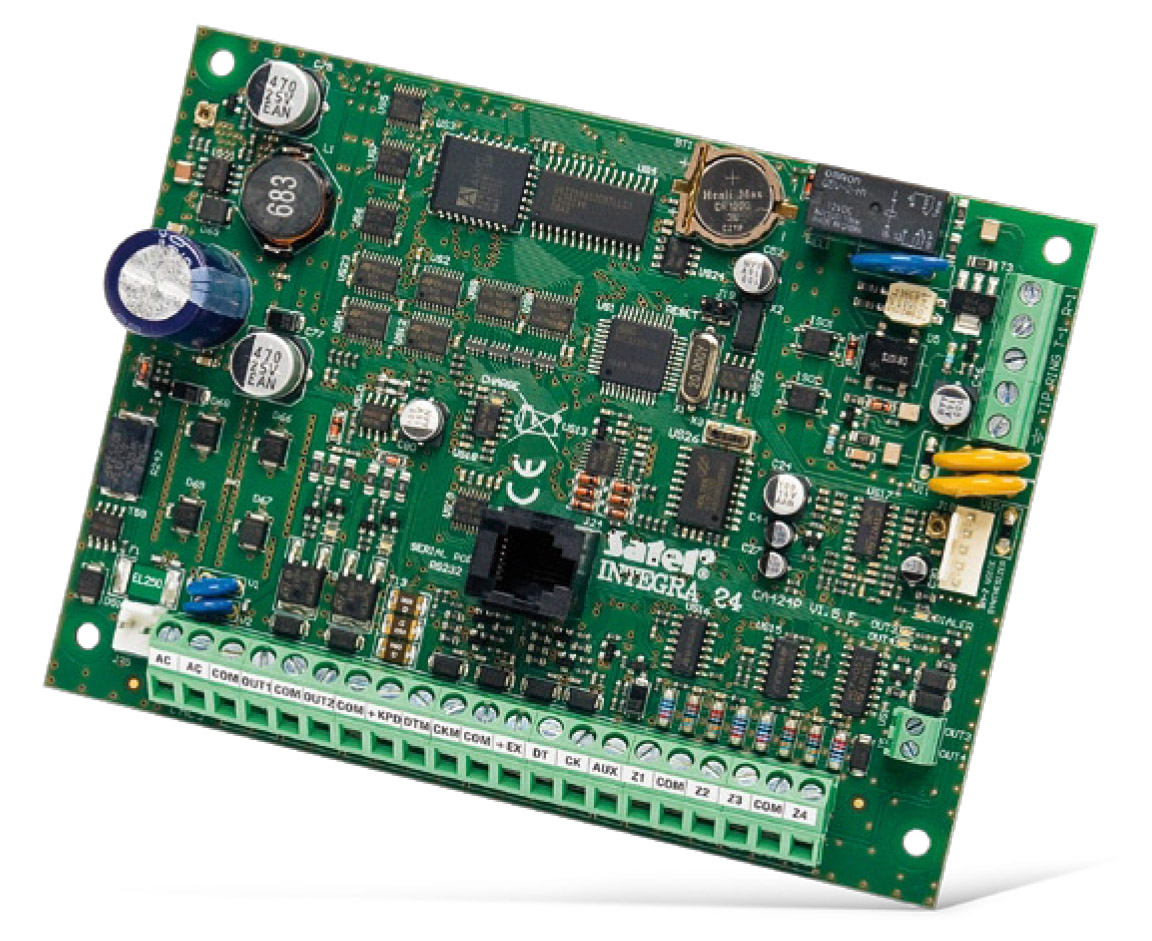

Intruder alarm control panel

Integra panels are the most powerful and advanced intruder alarm control panels manufactured by Satel. The family includes five control panels of unified hardware/software architecture that differ from each other with size and expansion possibilities. Unique scalability combined with the selection of core components allow to suit the needs of most security applications. The versatility of these panels makes it possible to use them not only for intruder and hold-up systems, but also for access control and building automation.
Features

  • Up to 24 zones
  • 4 partitions
  • Up to 20 programmable outputs
  • Keypads and expansion modules buses
  • Built-in telephone dialer with monitoring, voice messaging and remote control features
  • System operation with LCD keypads, partition keypads, keyfobs and proximity cards or remotely with mobile phone or PC
  • 16 independent timers for automatic control
  • Access control and home automation features
  • Event log with 899 entries and event printing feature
  • 16+1+1 users
  • Flash firmware upgrade with a PC
  • Built-in 1.2 A switching mode backup power supply with battery charging and diagnostic features

Specification

  • Mainboard supply voltage (±10%) : 18 V AC, 50–60 Hz
  • Mainboard standby current consumption : 121 mA
  • Mainboard maximum current consumption : 204 mA
  • Power supply type, control panel : A
  • Power supply unit voltage, nominal (±10%) : 13.8 V DC
  • Output voltage range : 10.5 V…14 V
  • Batt. failure voltage thr. (±10%) : 11 V
  • Battery cut-off voltage (±10%) : 10.5 V
  • Power supply load capacity : 1.2 A
  • Load capacity, high-current programmable outputs (±10%) : 2 A
  • Load capacity, low-current programmable outputs : 50 mA
  • Load capacity, +KPD output (±10%) : 500 mA
  • Load capacity, AUX output : 500 mA
  • Load capacity, +EX output : 500 mA
  • Battery charging current (±20%) : 350 mA
  • Environmental class (EN50130-5) : II
  • Operational temperature range : 10°C…+55°C
  • Maximum humidity : 93 ±3%
  • Electronics board dimensions (width x height) : 142 x 106 mm
  • Weight : 178 g

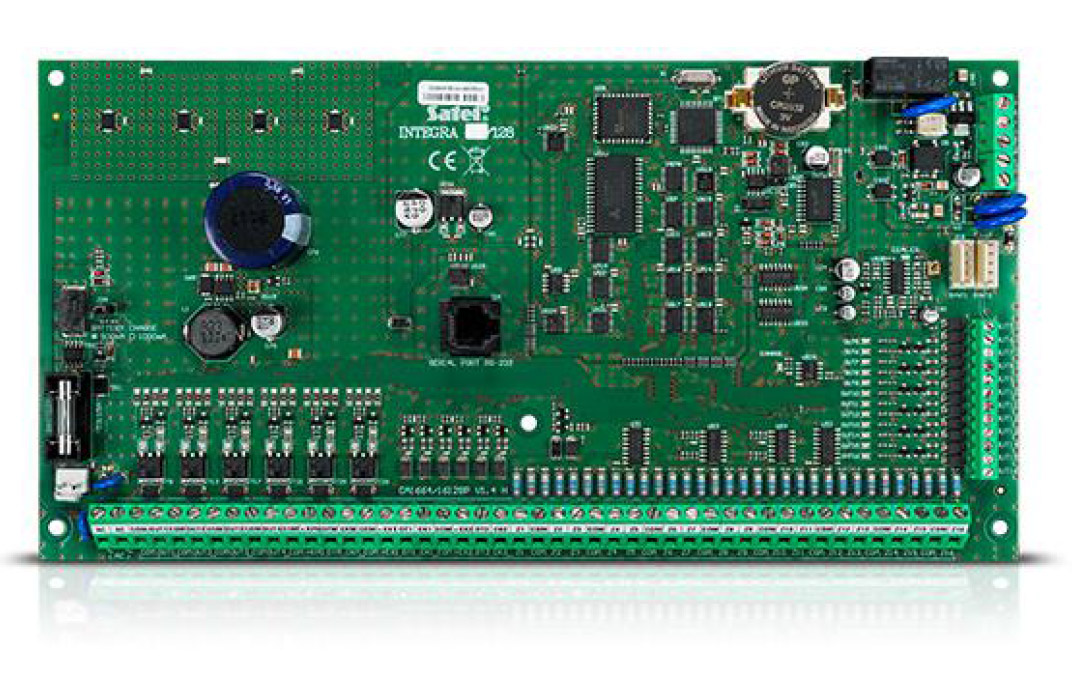

Advanced control panel with 8 up to 32 zones
Advanced alarm control units providing alarm functions and optional implementation of home automation and access control systems.
With a broad range of extension modules, their applications can be adapted to individual needs: from minor systems to extensive installations. Communication features combined with additional modules, such as GSM and TCP/IP, are a major advantage of the INTEGRA control units.

  • 8 up to 32 zones
  • 16 partitions, 4 objects
  • 8 up to 32 programmable outputs
  • Keypads and expansion modules buses
  • Built–in telephone dialer with monitoring, voice messaging and remote control features
  • Access control and home automation features
  • System operation with LCD keypads, partition keypads, keyfobs and proximity cards or remotely with mobile phone or PC
  • 28 independent timers for automatic control
  • Event log with 439 entries and event printing feature
  • 64+4+1 users
  • RS–232 port – RJ type socket
  • Flash firmware upgrade with a PC
  • Built–in 1.2 A switching mode backup power supply with battery charging and diagnostic features
  • Option of not reporting possible problems with connecting to the SATEL server as a failure

Specification

  • Environmental class : II
  • Protection class : S
  • Max. battery capacity : 18 Ah
  • Control panels : 13,8 V DC
  • Low current programmable outputs rating : 50 mA
  • High current programmable outputs rating : 2000 mA
  • Power supply rating : 1,2 A
  • Board dimensions : 173 x 106 mm
  • Operating temperature range : -10…+55 °C
  • Main board supply voltage (±15%) : 18 V AC, 50-60 Hz
  • Standby mode current consumption : 127 mA
  • Max. current consumption : 234 mA

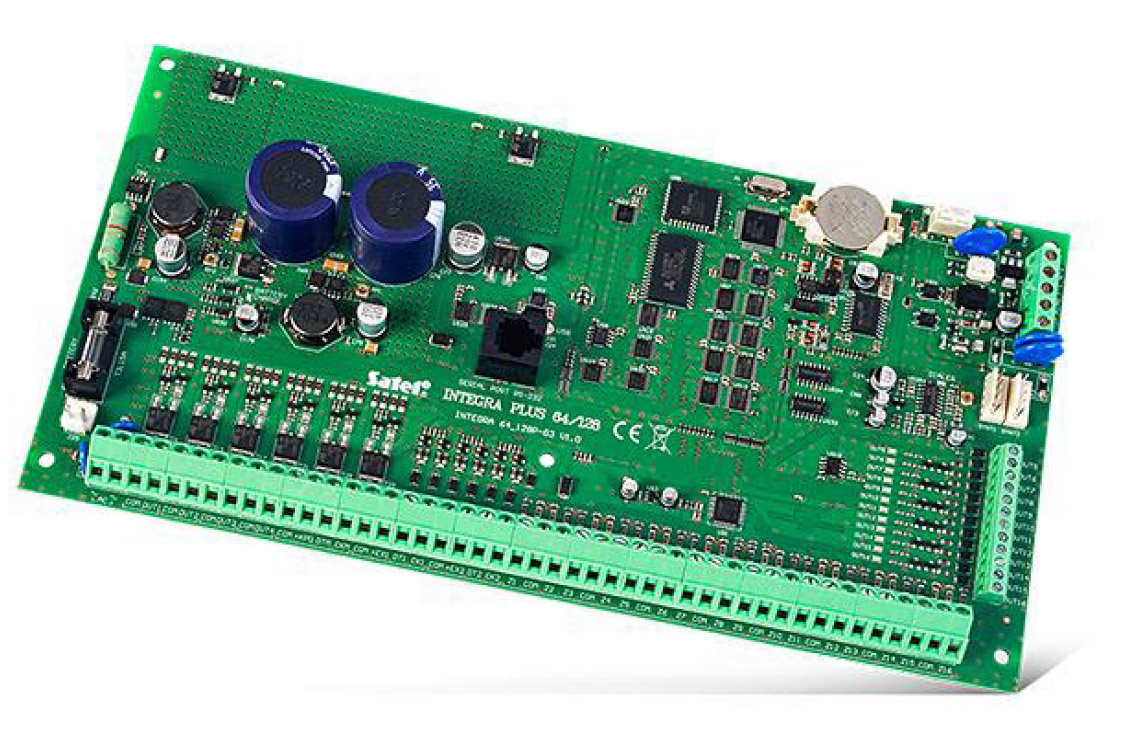

EN50131 grade 3 complaint alarm control panel main board, with 16 up to 64 zones and outputs
Due to their full compliance with the requirements of EN50131 Grade 3, the INTEGRA Plus control units are perfectly fit for implementation of advanced security systems at locations with particularly high risk of burglary, such as banks, jewellery stores or public utility facilities. The control units are characterised by extended functionality, due to which they can be used for implementation of access control systems or even intelligent building solutions.

  • Full compliance with EN50131 series of standards for Grade 3 equipment
  • Built–in advanced 2 A+1.5 A power supply with extended autodiagnostics
  • Up to 64zones with programmable EOL value and support for 3 EOL configuration (only mainboard zones)
  • USB port for programming via PC up to 32 partitions, 8 tenants
  • Up to 64 fully programmable outputs
  • Dedicated buses for communication with keypads and expansion modules
  • System operation via LCD keypads, partition keypads, remote control keyfobs or proximity cards
  • Remote system operation with PC, smartphone or voice–guided telephone menu
  • 64 independent timers for automatic control
  • Access control and home automation features
  • Non–volatile event log with 5631 entries, with on–line printing support
  • Support for 192+8+1 user codes
  • Firmware upgrades via PC
  • Option of not reporting possible problems with connecting to the SATEL server as a failure

Specification

  • Installer-defined text messaged : 64
  • Extender circuits : up to 64
  • Environmental class according to EN50130-5 : II
  • Voice messages : 16
  • Communication buses : 1+2
  • Maximum number of programmable inputs : 64
  • Maximum number of programmable outputs : 64
  • Maximum humidity : 93±3%
  • Maximum current consumption from the battery : 200 mA
  • Maximum current consumption from the 230V network : 400 mA
  • Maximum battery charging current : 1500 mA
  • Manipulators : up to 8
  • Weight : 320 g
  • Battery cut-off voltage (±10%) : 10,5 V
  • Power supply output voltage : 10,5…14 V DC
  • Supply voltage (±15%) : 20 V AC, 50-60 Hz
  • Battery failure voltage threshold (±10%) : 11 V
  • Telephone numbers for notification (voice/PAGER + SMS) : 16+16
  • Carrying capacity of the +EX1 and +EX2 outputs (±10%) : 3000 mA
  • Low current programmable outputs rating : 50 mA
  • High current programmable outputs rating : 3000 mA
  • Carrying capacity of the +KPD output (±10%) : 3000 mA
  • Event log : 5631
  • Objects : 8
  • Current consumption from the 230V network in standby : 135 mA
  • Current consumption from battery – standby : 130 mA
  • Security grade according to EN 50131 : Grade 3
  • Partitions : 32
  • Timers : 64
  • Users + Administrators : 192 + 8
  • Programmable wired inputs : 16
  • Power supply current efficiency (supplying devices + charging batteries) : 2000 + 1500 mA
  • Programmable wired outputs : 16
  • Supplying outputs : 3
  • Board dimensions : 264 x 134 mm
  • Operating temperature range : -10…+55 °C
  • Recommended transformer type : 75 VA

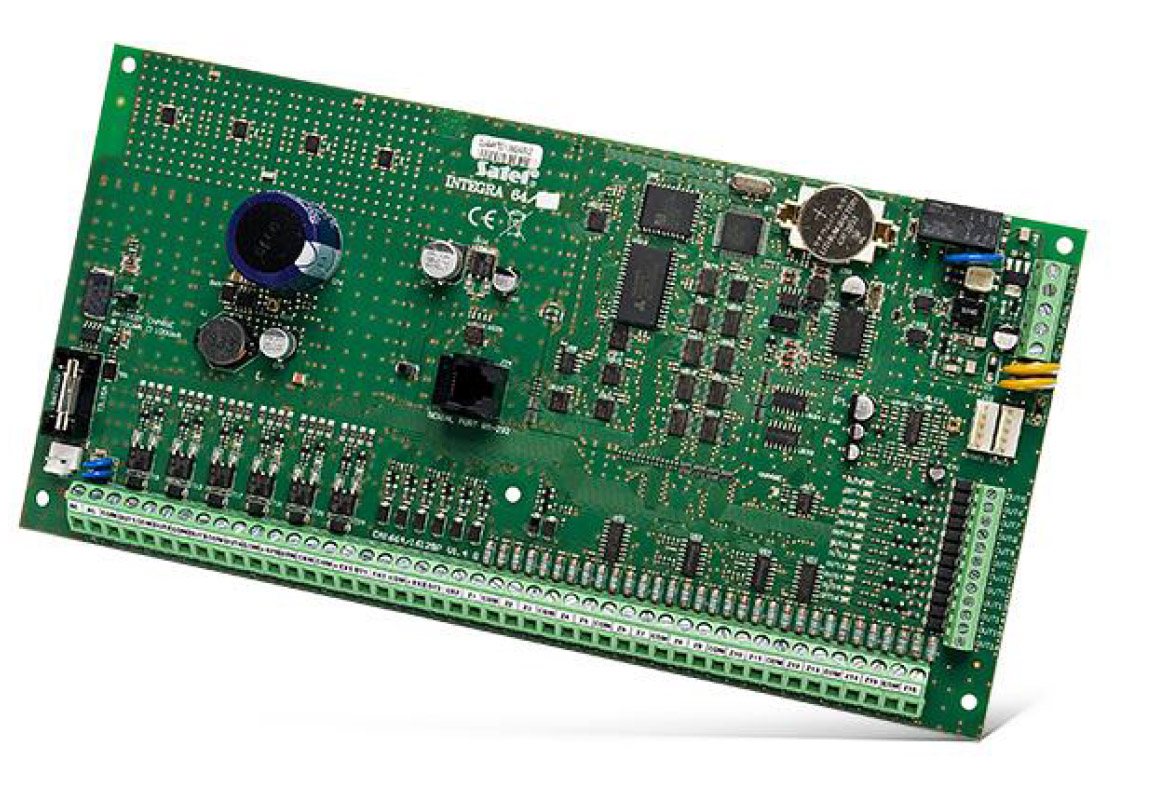

Advanced control panel with 16 up to 64 zones
Advanced alarm control units providing alarm functions and optional implementation of home automation and access control systems. With a broad range of extension modules, their applications can be adapted to individual needs: from minor systems to extensive installations. Communication features combined with additional modules, such as GSM and TCP/IP, are a major advantage of the INTEGRA control units.

  • 16 up to 64 zones
  • 32 partitions, 8 objects
  • 16 up to 64 programmable outputs
  • Keypads and expansion modules buses
  • Built–in telephone dialer with monitoring, voice messaging and remote control features
  • Access control and home automation features
  • System operation with LCD keypads, partition keypads, keyfobs and proximity cards or remotely with mobile phone or PC
  • 64 independent timers for automatic control
  • Event log with 5887 entries and event printing feature
  • 192+8+1 users
  • RS–232 port – RJ type socket
  • Flash firmware upgrade with a PC
  • Built–in 3A switching mode backup power supply with battery charging and diagnostic features

Specification

  • Environmental class : II
  • Protection class : S
  • Max. battery capacity : 24 Ah
  • Control panels : 13,8 V DC
  • Low current programmable outputs rating : 50 mA
  • High current programmable outputs rating : 3000 mA
  • Power supply rating : 3 A
  • Board dimensions : 264 x 134 mm
  • Operating temperature range : -10…+55 °C
  • Main board supply voltage (±15%) : 20 V AC, 50-60 Hz
  • Standby mode current consumption : 149 mA
  • Max. current consumption : 337 mA

Advanced control panel with 16 up to 128 zones
Advanced alarm control units providing alarm functions and optional implementation of home automation and access control systems.
With a broad range of extension modules, their applications can be adapted to individual needs: from minor systems to extensive installations. Communication features combined with additional modules, such as GSM and TCP/IP, are a major advantage of the INTEGRA control units.

  • 16 up to 128 zones
  • 32 partitions, 8 objects
  • 16 up to 128 programmable outputs
  • Keypads and expansion modules buses
  • Built–in telephone dialer with monitoring, voice messaging and remote control features
  • Access control and home automation features
  • System operation with LCD keypads, partition keypads, keyfobs and proximity cards or remotely with mobile phone or PC
  • 64 independent timers for automatic control
  • Event log with 22,527 entries and event printing feature
  • 240+8+1 users
  • RS–232 port – RJ type socket
  • Flash firmware upgrade with a PC
  • Built–in 3 A switching mode backup power supply with battery charging and diagnostic features
  • Option of not reporting possible problems with connecting to the SATEL server as a failure

Specification

  • Environmental class : II
  • Control panels : 13,8 V DC
  • Low current programmable outputs rating : 50 mA
  • High current programmable outputs rating : 3000 mA
  • Power supply rating : 3 A
  • Board dimensions : 264 x 134 mm
  • Operating temperature range : -10…+55 °C
  • Main board supply voltage (±15%) : 20 V AC, 50-60 Hz
  • Standby mode current consumption : 149 mA
  • Max. current consumption : 337 mA
